Making 500-1000L Big Size Chemical Revolving Barrel Extrusion Blow Molding Machine
Jiangsu YiCheng Fluid Equipment Co., Ltd.Base Info
Description
ACCUMULATING typeMain screw diameter mm 100*2 120*2 Max plasticizing capacity (PE) kg/h 400 700 Driving motor Kw 90*2 132*2 Oil pump motor power Kw 40 60 Clamping force KN 1300 1800 Space between platen Mm 950-2000 1000-2700 Platen size W*H Mm 1400*1800 1900*2300 Max. mold size Mm 1200*1920 1750*2200 Heating power of die head Kw 50 65 Machine dimension L*W*H m 10.4*8.2*6.5 14*12*8.5 Machine weight T 45 70 Total power Kw 325 460

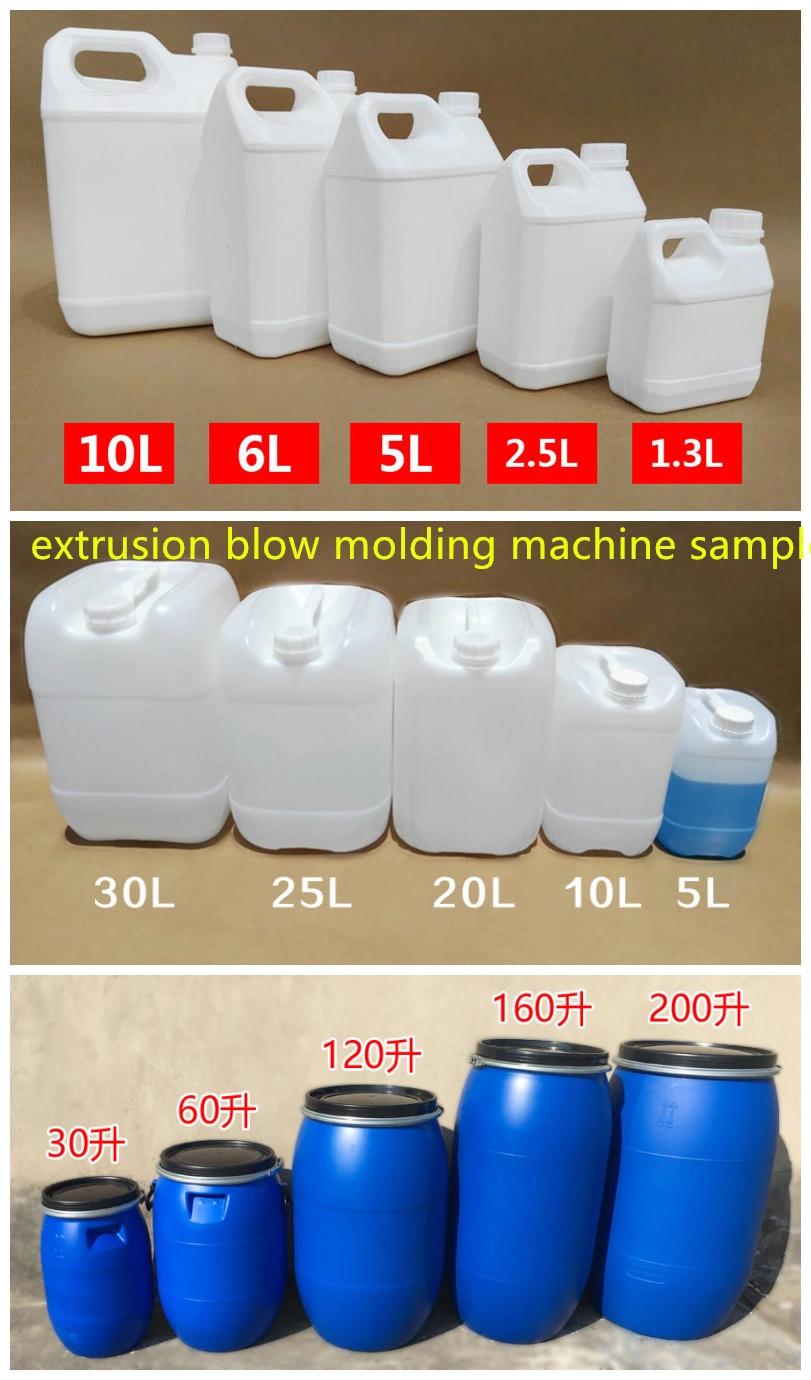

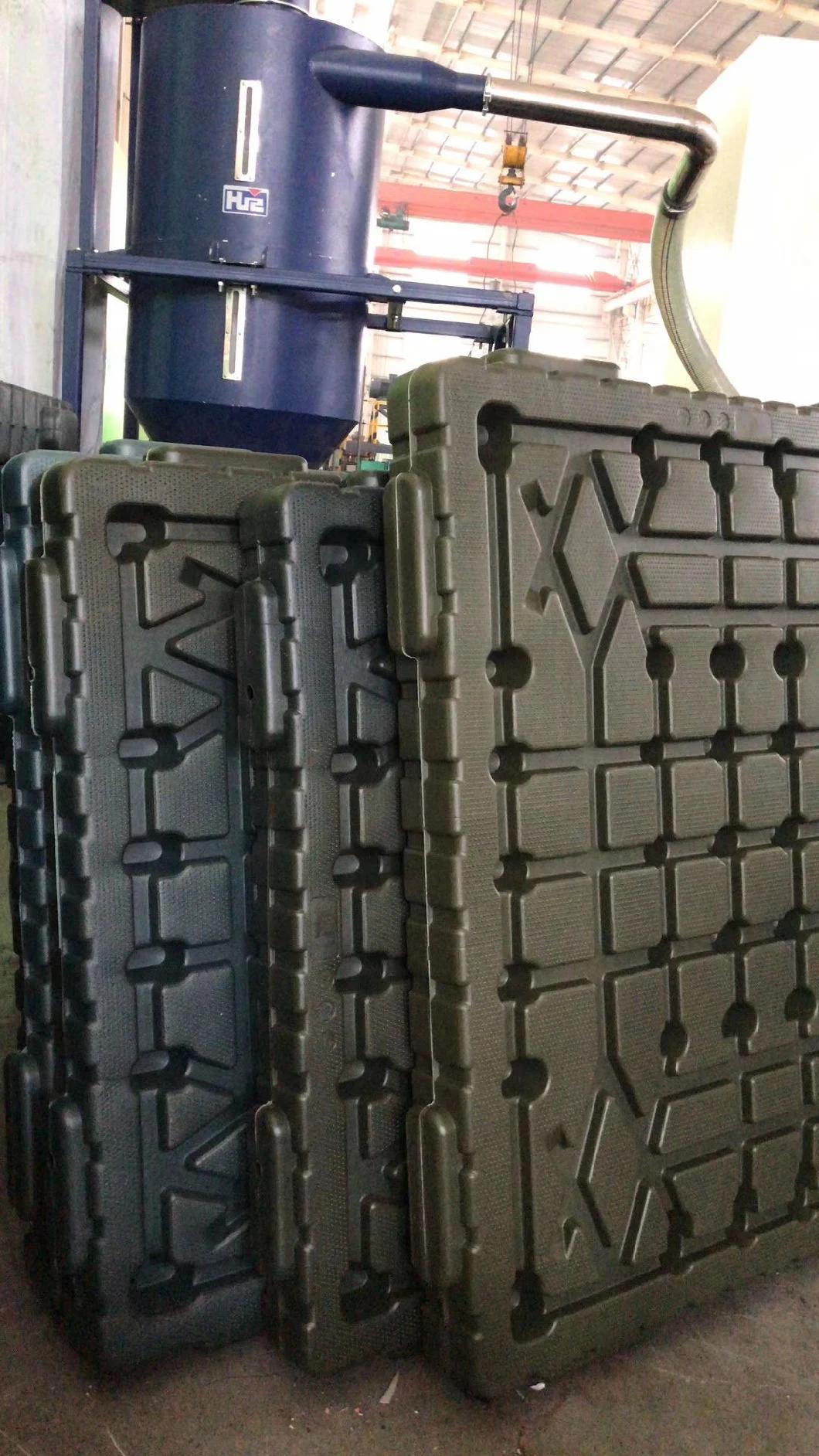

Other samples:

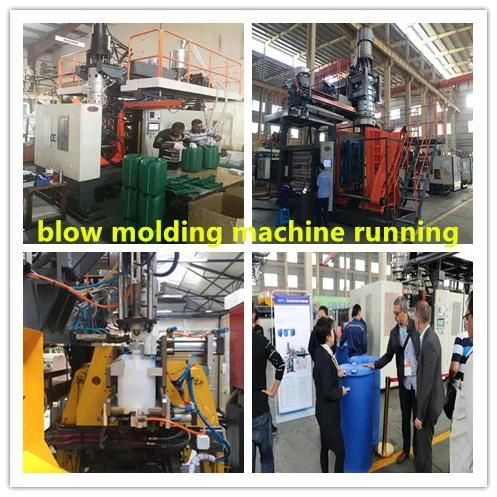

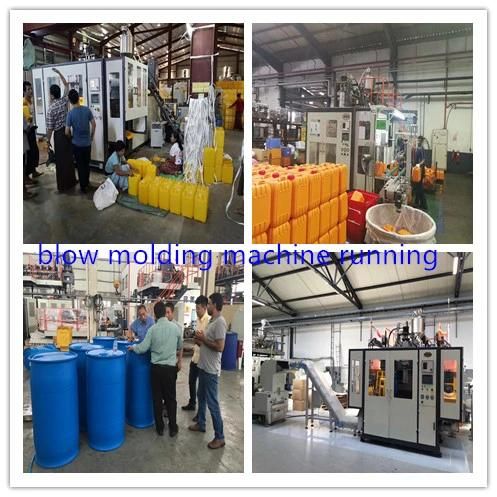

Extrusion Blow molding machine running in our customer workshop:
Different kind of Control system of machine
Parison wall thickness control system
1. SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
2 . B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
3 . MOOG Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.

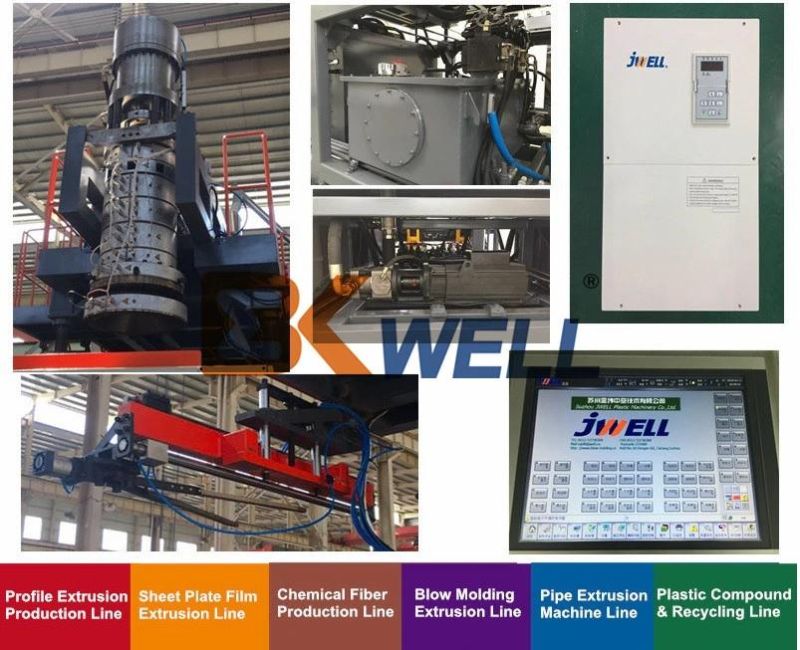

Extrution & Die head:
1.The extruder uses screw and barrel, which is a famous brand "JINHAILUO" all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system:
1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system:
1.Take out robot
2.Scrapping collect together, convey,crusher into one unit
Hydrulic system:
1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
2.optional hydraulic could sace about 50% energy
Open&Closing system:
1.Common three platen and three tie bar struction
Toggle struction
2.Lubrication system
lubrication system:
This auto-lubrication system can lubricate the system with a set cycle automatically.

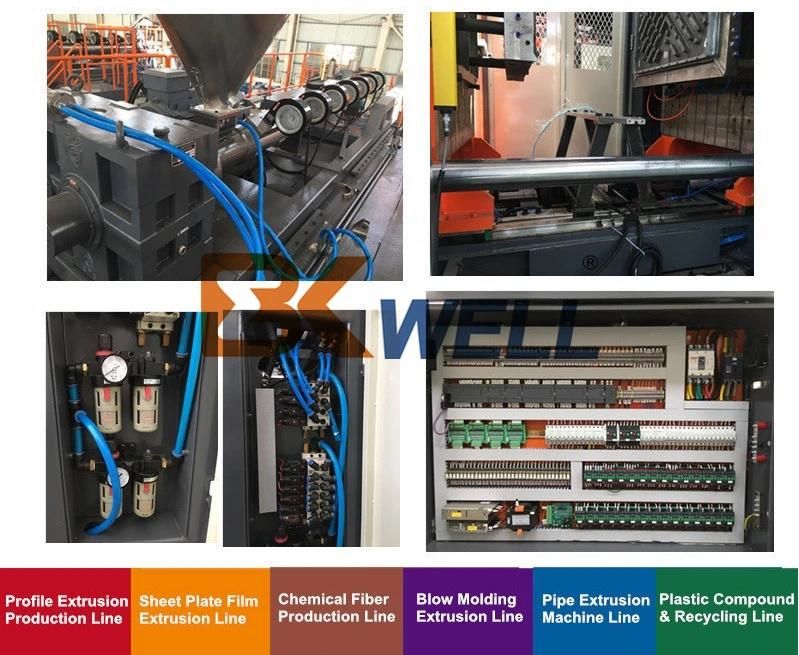

Electric system:
1.SIEMENS CPU unit2.SIEMENS temperature-control unit3.SIEMENS digital-output unit4.SIEMENS analog-output unit5.MITSUBISHI CPU unit6.JWELL invertor revolving speed-control7.Schneider electric components
seals service network:
Corporate Honor:
