Basic Info.

Computerized Computerized Certification CE, ISO9001:2008 Crusher Blades SKD-11 Blade Type Rotating Blade and Fixed Blade Motor Dongya Suitable Material PVC Useage Waste Plastic Recycling Net Thickness 10mm Mesh Size 8-12mm Capacity 80-1000kg/H Noise Pugging Feeder Moving Feeder Transport Package Sea Worth Package Specification swp Trademark chenxing Origin Jiangsu, China HS Code 8477800000 Production Capacity 500sets/Year

Product Description

Decription:

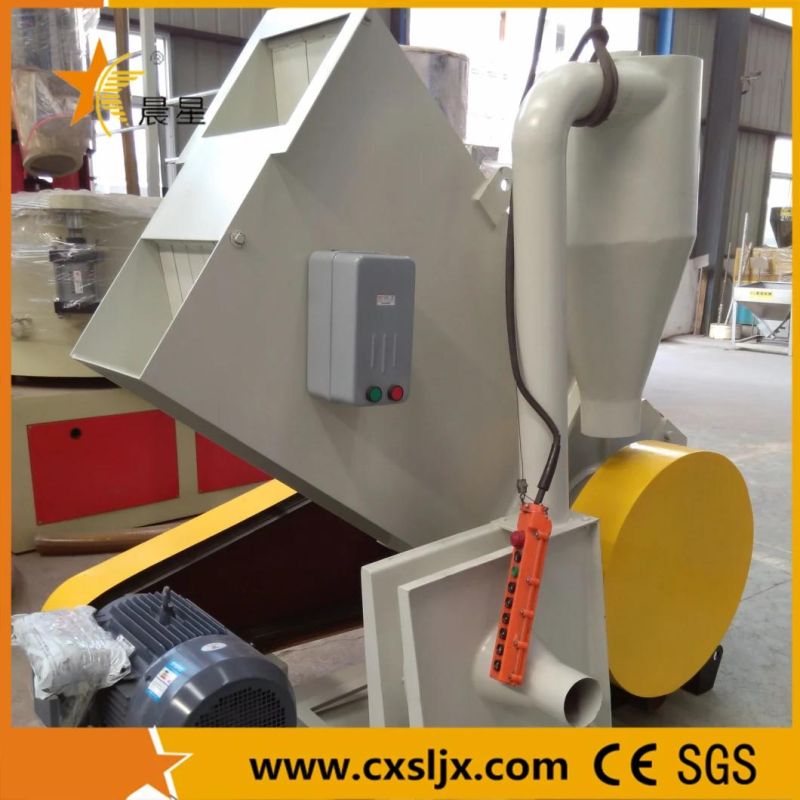

This crusher/crushing machine is used in crushing waste plastics and defective plastic products to plastic granules.it  mainly used for crushing the plastic PVC,PP,PE,HDPE, LDPE pipes, window and door profile, various plastic sheet and so on. We have different kinds of crusher, you can choose the suitable according to your material.

Feature:

1-Steel body and clamping blade prevent the machine from cracking
2- Stepped blades increase shearing strength and crushing efficiency
3-Movable screen is easily to assembly, disassemble and wash
4-Sound separation layer in the feeding door lowers operations noise levels

Advantage:
1.Easy operation to feed pipes, profiles into crushing room, no need to cut pipes first.
2.Low energy consumption, low noise

Main Technical Parameters:

Model	SWP300	SWP400	SWP500	SWP600
Rotary Knife Diameter(mm)	400	400	400	400
Rotary Knife Quantity (unit)	3	5	5	10units/2groups
Rotary Knife rpm(r/min)	600	500	500	480
Static Knife Quantity(unit)	2	2	2	2x2
Sieve Aperture(mm)	φ10	φ12	φ12	φ12orφ14
Crushing Capacity(kg/h)	150-200	300-400	400-500	500-700
Power(kw)	13.2	18	18-22	33
Feed Door Caliber(mm	300x200	350x300	500x300	650x300
Weight(kg)	950	1300	1500	1800
