ModelY-55/600   Y-65/700   Width of the filmT-shirt bag100-350mm  200-420mm Flat bag200-500mm   250-700mm Thickness of the film0.006-0.04mmThe max output45kg/h   55kg/h   75kg/h  85kg/h
According to different width,thickness of film, die size and raw material characteristics to changeRaw materialHDPE/LDPE/LLDPEPower consumption20kw/h  30kw/hWeight3500kg  4200kgOverall dimension(L*W*H)m5*2.1*4.3  5*2.2*4.5   Extruder unitDiameter of screwΦ55   Φ65
38CrMoALA  wearproof Alloy steel,five years guaranteL/D ratio of screw30:1Rotation speed of screw10-120r/mBarrel FanZone 3 barrels install over-temperature fanGear box200#  225#
Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation systemMain motor30kw 37kw
100% Original three-phase variable frequency motor  Equipped with inverter controlDie head unitDie diameter50mm   60mm  80mm
With 40Cr steel forging finishing, eight feed trough runner,Uniform flow channel,blown plasticizing effectCool unitAir ring typeLDPE double vents vacuum air ring
HDPESingle outlet air ringAir ring materialHigh quality Taiwan cast aluminum alloy air ringBellow power1.5kw  4kw   2.2kw
Shanghai production of high-pressure mute fanTraction unitWidth of take up roller600mm  700mm Traction roller materialsilicone roll
NBR rollerTake up motor
 1.5kw  2.2kw  3.0kw
Installation of RV series reducer variable frequency motor inverter controlTake up speed100m/minEmbossing rollerhot embossing unit
cold embossing unitLambdoidal boardWooden flannel wrappedGusset equipmentModular rack type
Independent Split  Bubble stabilizing ringElectric aluminum roller guide

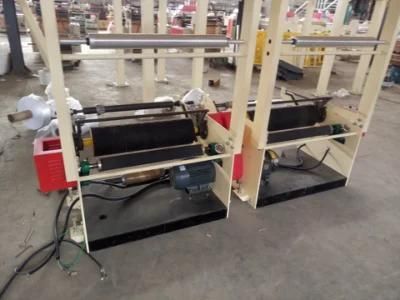

Manual wood floor Guide rollerAluminum guide roller (HV300-HV700) surface treatmentWinding unitWinding typeSurface friction rewinding, manually change the volumeDrive typeTorque motor equipped RV reducerFilm expanding rollerSmoothing rollElectric control cabinetlow-voltage is Universal electrical appliances, Delixi Electric, Taiwan's Yangming Electric, Huibang temperature control tableComputer control type7-inch touch screen + process control system
Automatic air supply device Service
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service(No charge for changing parts) and mechanical parts lifetime warranty.
3.We will offer you the professional answers about the relating machines in 24 hours.

Order step
    step1. Please let us know which product you like. the model and size, the offers will be sent to you within 24 hours.
     step2.  We make proforma invoice (PI) for you.
     step3. Please check and confirm the PI
     step4. Once we confirmed the order, please pay it soon.
     step5. After payment, all goods will be sent to you in the delivery time.
