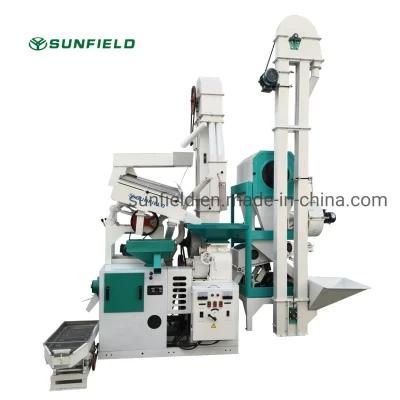

Sunfield 20tpd Automatic Combined Rice Milling Machines Paddy Grain Processing Machinery ...
Ningbo Ezfocus Co., Ltd.- Warranty：One Year
- Type：Rice Mill
- Application：Rice Mill Machine,Rice Processing Machine
- Voltage：380V
- Appearance：Vertical
- Press Materials：Rice
Base Info
- Model NO.：CTNM20
- Press Series：Fourth
- Condition：New
- Customized：Customized
- Certificate：Soncap
- Features：Easy Operation& Convenient Maintance
- Advantages：High Productivity& Low Price
- Applications：Grain Processing Machine
- Price：Negotiable
- Rice Output Capacity：1000-1200kg,H
- Installation：Handbook
- Technical：Video Technical Support
- Total Power：24.95 Kw
- Rice Milling Rate：72%
- Net Weight：1700kg
- Processing Object：Rice
- Speed of Main Spindle：1360(R,Min)
- Transport Package：by Wooden Case
- Specification：2800*1500*2900mm
- Trademark：Sunfield
- Origin：China
- HS Code：8437800000
- Production Capacity：100 Unit,Per Week
Description
2. Product Features
- Unibody base designed for convenient transportation and installation, stable operation, low space occupation.
- High efficiency double-layer drum type cleaning sieve, strong precleaning performance.
- It improves production efficiency by the unique rehulling leftover paddy design.
- Innovative emery roller whitening technology, low rice temperature, less bran remains, improves the rice quality.
- Smooth processing flow, easy operation for just one person.
- Independent safe electric control system for more convenient operation.
- Improved transmission system extends duration of consumption parts
- Modula design, reserves connectivity with follow up equipments to double mill, grade and sorte for better rice quality.
- Low investment and high yield
3. Core competitiveness
Unique DRUM TYPE Combined Paddy Cleaner and De-stoner
Independent structures for paddy cleaning and de-stoning, greatly improved the performance from traditional unibody design;
The double-layer drum type sieve mechanism with high cleaning efficiency;
Strong air-suction structured de-stoner, large air volume, excellent de-stoning efficiency;
Solid shock absorption bearing strengthened the main machine by high stablility, low vibration, low noise and less dust while working.
4.Main configuration and technical parameters
| Model&Spec. | CTNM20A | CTNM20B | CTNM20C |
| Output(kg/h) | 800-1000 | 800-1000 | 800-1000 |
| Rice milling rate (%) | 68-72% | 68-72% | 68-72% |
| Cleaner and de-stoner | TZQY54/QSX45 | TZQY54/QSX45 | TZQY54/QSX45 |
| Husker | MLGT20 | MLGT20 | MLGT20 |
| Paddy separator | MGCZ70×6 | MGCZ70×6 | MGCZ70×6 |
| Rice mill | NF15A(1pc) | NF15A(1pc) | NF15A(1pc) |
| Rice grader | Basic rice grader | MJP50×2 | MJP50×2 |
| Rice polisher | / | / | MPGT12.5 |
| Single elevator | DTG19/8-1pc | DTG19/8-2pcs | DTG19/8-3pcs |
| Double elevator | DTG19/8-8 | DTG19/8-8 | DTG19/8-8 |
| Power(kw) | 25.32 | 26.62 | 49.87 |
| Overall dimension(mm) | 3300×1200×3400 | 3800×1200×3400 | 5000×1200×3400 |
