Basic Info.

Model NO. DFQ-200W Color Customized Work Pressure 1.05-2.0 MPa Engine Diesel Engine Feature High Efficiency Transport Package Standard Container Specification 3700X1660X2350 mm Trademark DEFY Origin Henan, China Production Capacity 100 Sets Per Month

Product Description

                                    Used trailer mounted water well drilling rig China
 Product Description

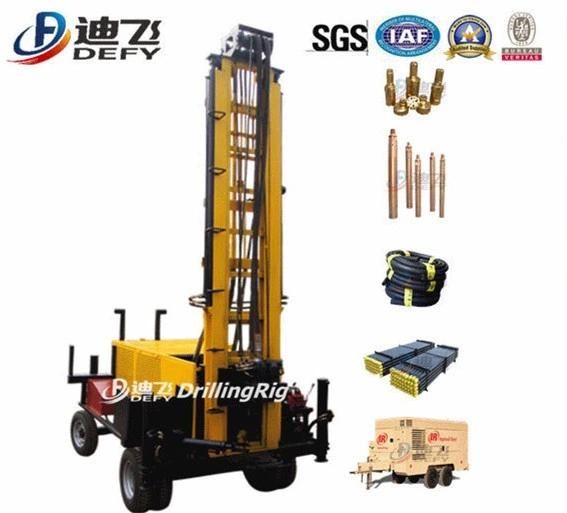

DFQ-200W is a portable type small borehole drilling machine with light weight, high efficiency and multi-function, widely used for water well drilling, geothermal air-conditioning project and other boreholes, especially applicable to mountain area and rock formation water engineering.

Features

1. Drill up to 200m depth with 105mm borehole diameter

2. Diameter from 105-203mm

3. DTH hammer rotary drilling, fast speed in drill through hard rock areas

4. Trailer type,easy pulled or dragged

5. Both can work with mud pump and air compressor. But high efficiency with air compressor on hard formation

Specifications

Item	Specification
Drilling caliber	Φ105-203mm
Max. drilling depth	200m
Diameter of drill pipe	Φ76
Unit Length of drill pipe	3000mm
Work pressure	1.05-2.0 MPa
Gas consumption	10-24 m³/min
DTH Hammer	DHD350360
Apply to rock hardness	f=6-12
Power	50Kw/2200rpm
Gradeability	25°
Walking speed	0~2.0 Km/h
Rotary torque	2000N.m
Weight	5200 Kg
Dimension	3700×1660×2350 mm

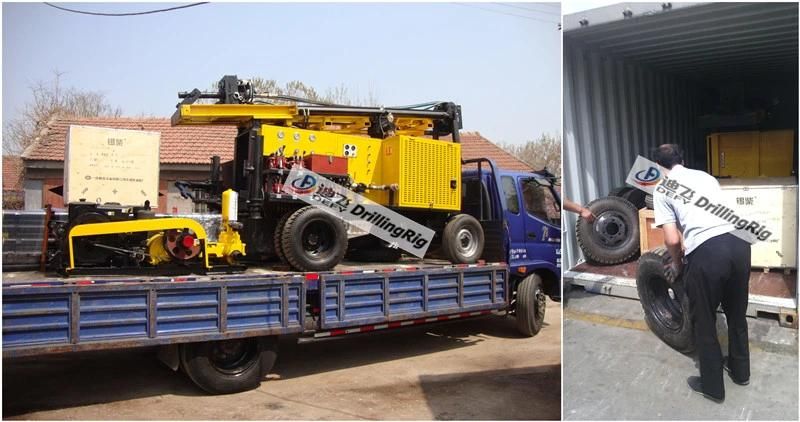

Packaging & Shipping

1.Drilling Rig main machine in container             2.Accessories in wooden case or according to your requirement

Buying Tips

How to choose a suitable drilling rig?

1. What will you do using drilling rig?

---For water project, core sample, soil test, mineral prospect or others?

2. The depth you need?

---For water well, generally, 30-200m. For core sample, 30-600m, even more.

3. Any requirements to hole diameter?

---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.

4. Working land condition?

A. soil, sand, weathered land, etc. soft stratum.

B. soil, sand, soft and hard rock stratum, mixed one.

C. Mainly hard rock, like granite.

Based on the above information, DEFY experienced engineers will help you recommend suitable machine and price. If you have special demands, please tell us ahead.

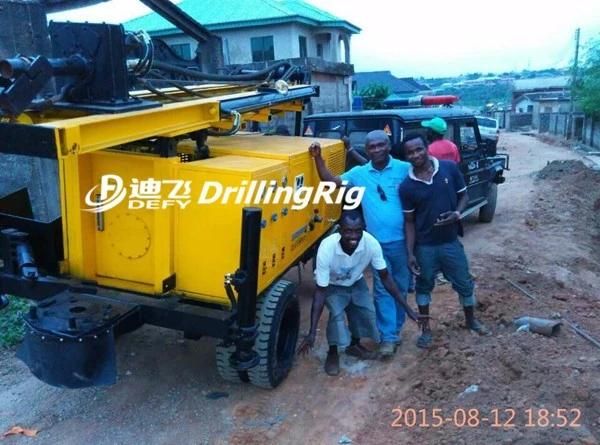

Good Feedback
