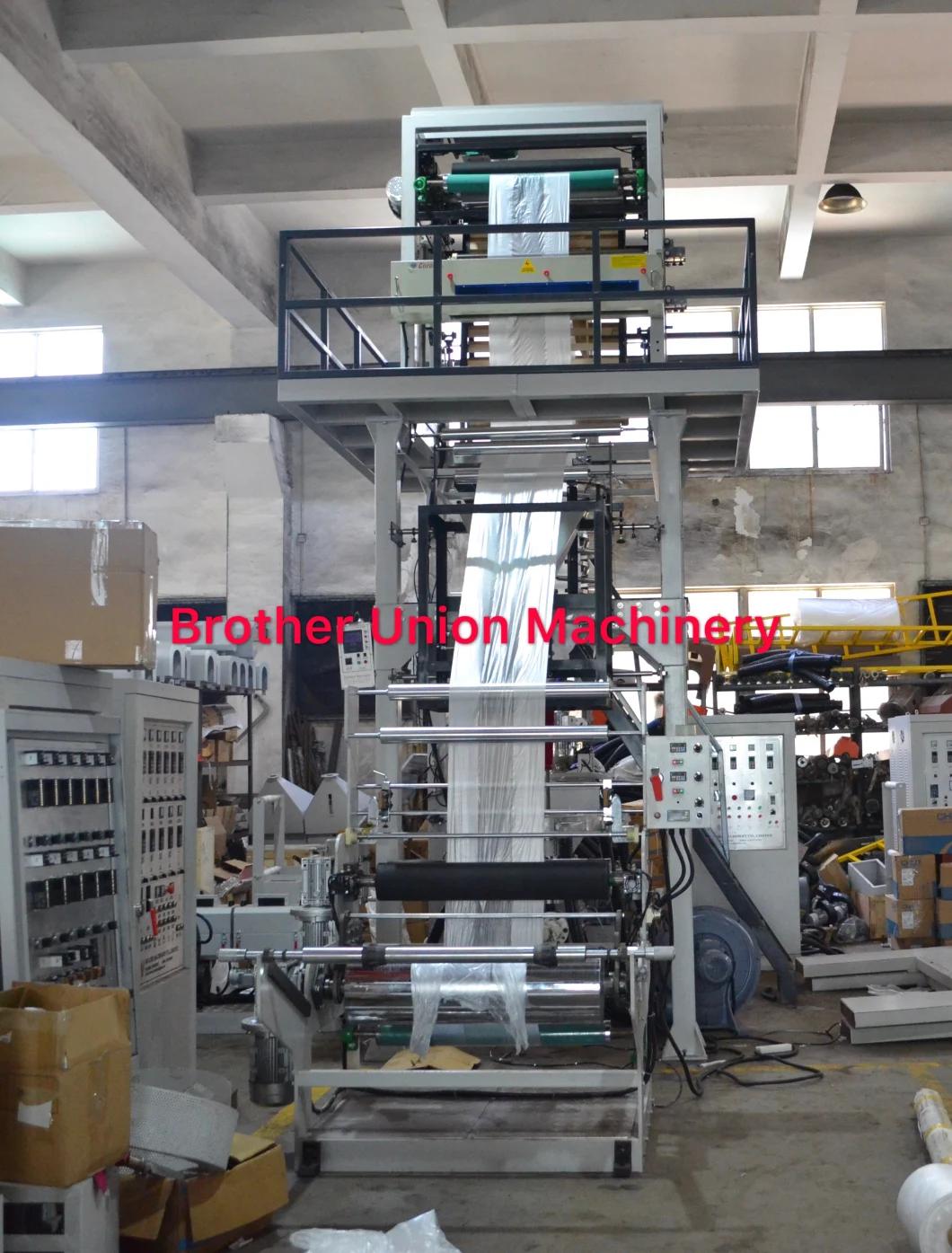

2200mm ABA Three Layers Coextrusion Film Blowing Machine
Chengdu XYLP Trading Co., Ltd.Base Info
Description
FB-ABA-700FB-ABA-900 FB-ABA-1300 Applicable Materials LDPE LLDPE HDPE EVA Max. Width of Film 600 800 1200 Thickness of Film 0.01-0.10mm Max. Extrusion Output HD: 60kg/h LD: 70kgs/h HD: 75kg/h LD: 85kgs/h HD: 90kg/h
LD: 100kgs/h Screw Diameter Φ45*2 Φ50*2 Φ55*2 Screw L/D Ratio 30: 1 Rotate Speed of Screw 10-80r/min Screw&Barrel Material SAC-645/38CroMoALA Main Motor Power 11kw*2 15kw*2 18.5kw*2 Heating Ring Cast Aluminum Temperature Control 3Zones*2 3Zones*2 3Zones*2 Screen Changer Manual Type Diameter of Die Orifice HD: Φ550
LD: Φ160 HD: Φ80
LD: Φ180 HD: Φ130
LD: Φ250 Air Ringc Double Air Vent Air Ring Blower Motor 3kw 4kw 5.5kw Take up Motor 1.5kw 2.2kw 3kw Winder Friction Single Station Air Shaft Roller 2 Pieces 2 Pieces 2 Pieces Total Power 40 45 56 Weight of Machine 3.5T 4T 5T Overall Dimension 5X3.5X5 5.5X3.7X5 6.5X4.1X5.2
C: Details Information
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating: 3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Take Up Motor: Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller
D. After service of BROTHER UNION
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 80USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query pls feel to contact with us!
