Basic Info.

Model NO. SDBGZ-50 Customized Customized Condition New After-sales Service Professional Engineers Teach Operation Name Single Wall Pipe Extrusion Machine Product Color Tongsan Color Suitable Material HDPE/PE/PVC/PP Keywords Plastic Pipe Making Machine Cooling Way Fan Air Colling Heating Way Electrical Heating Transport Package Wood Block Fixed Steel Wire Reinforcement Specification 16-50mm Trademark Qingdao TONGSAN Origin Qingdao, China HS Code 84772090 Production Capacity 24/Years

Product Description

TONGSAN is PP PE PVC PA Single Corrugated Pipe Extrusion Line Manufacturer Since 1997! Thousands sets of extrusion lines have supplied to global customers.

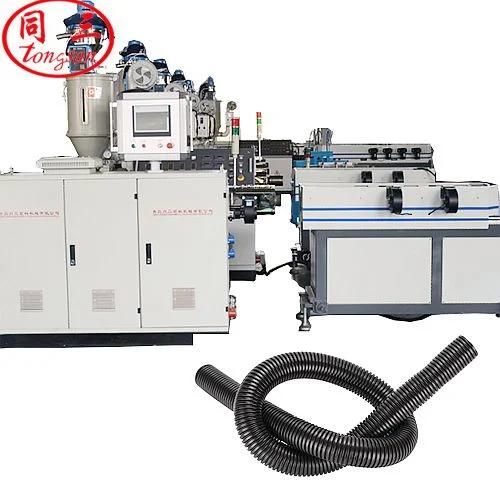

PP PE PVC PA Flexible Corrugated Pipe Machine can produce single wall corrugated pipes for electric conduit, cable protection, water drainage, shisha hose etc.


Plastic Flexible Corrugated Pipe Extrusion Line Model

Pipe diameter range	4.5mm-12mm	9mm-32mm	12mm-50mm	50mm-110mm
Model of extruder	SJ45	SJ50	SJ65	SJ65
Production capacity	20-30kg/h	40-50kg/h	60-70kg/h	70-90kg/h
Power of extruder	7.5kw	15kw	30kw	37kw
Power of forming machine	1.1kw	1.5kw	4kw	4kw
Pairs of modules	42pairs	50pairs	50pairs	70pairs
Cooling mode	Wind&Water cooling	Wind&Water cooling	Wind&Water cooling	Wind&Water cooling
Production speed	6-10m/min	8-12m/min	8-12m/min	2-6m/min

PP PE PVC PA Flexible Corrugated Electric Conduit Pipe Machine Production Process:
Material Loading- Extruder-Die Head and Core Bar-Mould Chain-Forming Machine (Corrugator)-Winder

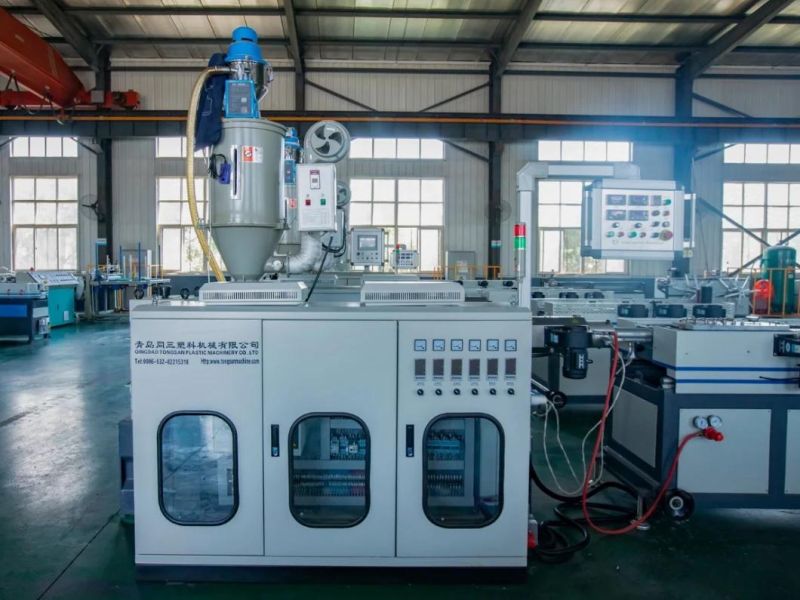

Single Wall Corrugated Pipe Extruder

Plastic Corrugated Pipe Forming Machine (Corrugator)

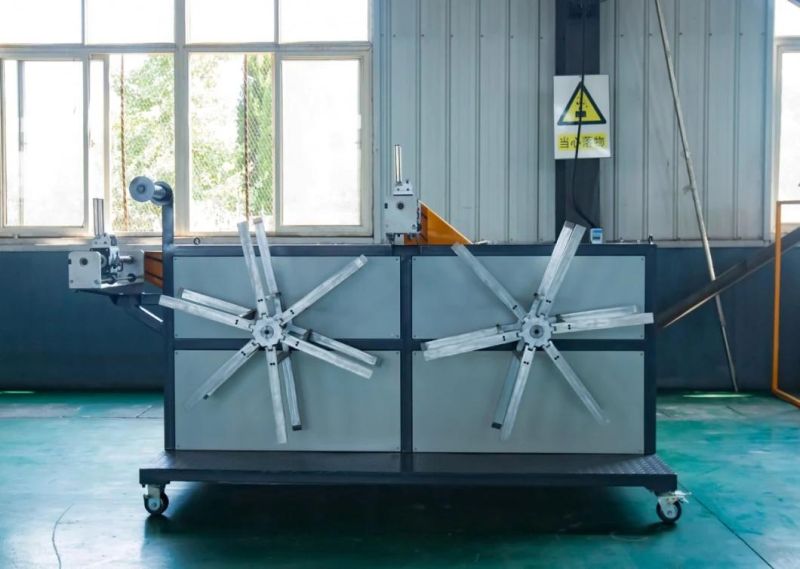

Corrugated Pipe Double Position Winder

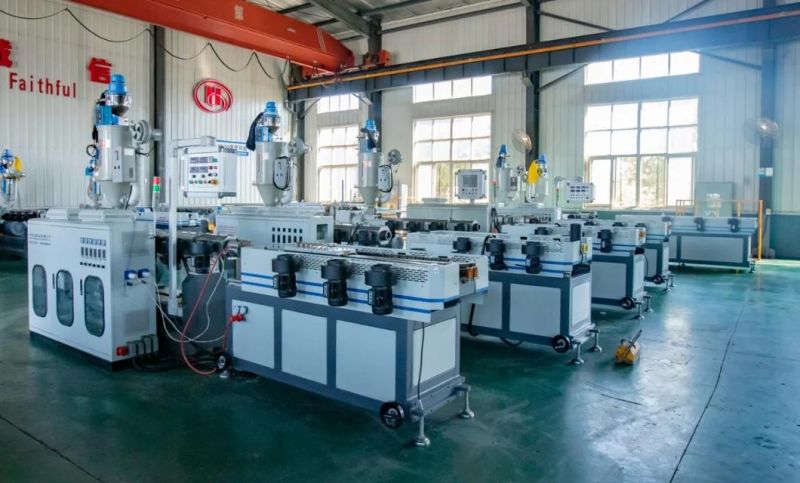

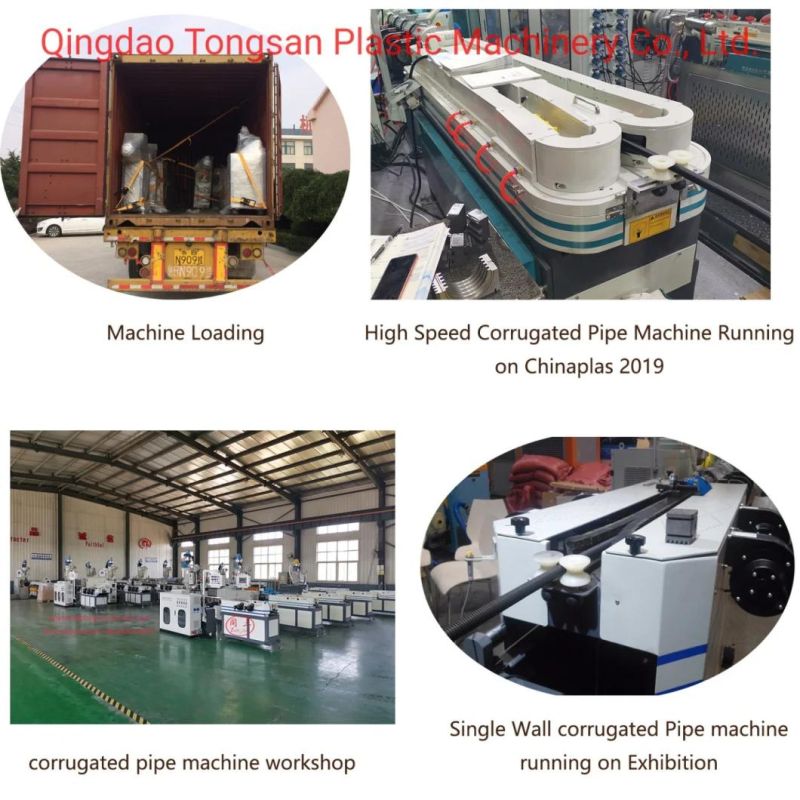

Flexible Corrugated Pipe Production Line Workshop and Exhibition Show




Company Introduction:
Qingdao Tongsan Plastic Machinery Co.,Ltd is one experienced plastic machinery manufacutrer since 1997.

Our Motto
Quality is the style of TONGSAN.

Credibility is the personality of TONGSAN.

Innovation is the pursit of TONGSAN.




Exhibition

Our Services

1. We will provide the Feasibility Analysis Report for the wood plastic project.
2. We will provide the model selection and technical parameter for wood-plastic machine.
3. We will provide the design for the plant and electric powder accounting for the facilities.
4. We will provide the design for wood plastic formula according to the product requirement.
5. We will provide the technology of wood plastic product surface treatment.
6. We will provide technique training for operator.
7. We will provide solution for the practical problem during the production.
8. We will install and test machine for free.
9. We will provide turnkey project to customers.
