• Model NO.：LY65LY70LY75LY85LY95
• Customized：Customized
• Material：Stainless Steel,Carbon Steel
• Main Machine：Twin Screw Extruder
• Function：Fully Automatic
• Capacity：100-150g,H 200-250kg,H 300-500kg,H 300-500kg,H 800
• Installation：Engineer Guide
• Transport Package：Film&Wooden Box Packing
• Specification：2.5*1.2*1.5m
• Origin：Jinan, China
• HS Code：8438800000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LY65LY70LY75LY85LY95 Customized Customized Material Stainless Steel/Carbon Steel Main Machine Twin Screw Extruder Function Fully Automatic Capacity 100-150g/H 200-250kg/H 300-500kg/H 300-500kg/H 800 Installation Engineer Guide Transport Package Film&Wooden Box Packing Specification 2.5*1.2*1.5m Origin Jinan, China HS Code 8438800000 Production Capacity 5000 Sets/Year

Product Description

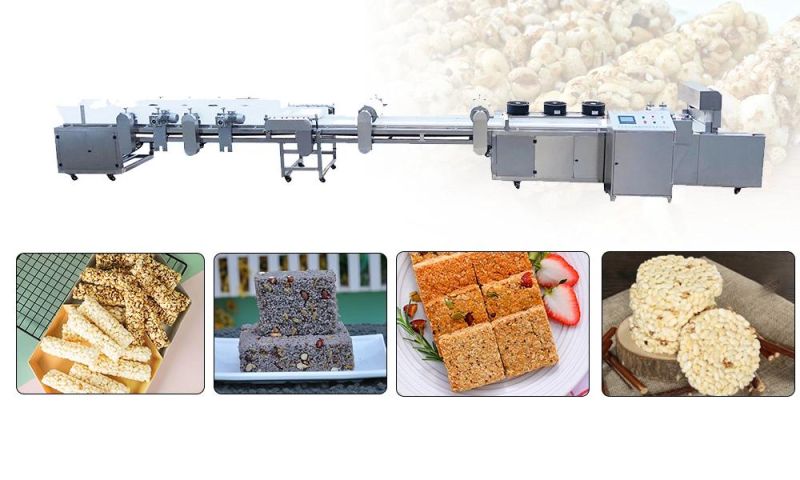

Most popular Automatic Oatmeal chocolate/cereal /Chocolate granola /granola bar production line/protein bar making machine
The cereal bar production line uses a PLC operating system and an advanced mechanical structure to achieve fully automated production - continuous feeding, automatic flattening, automatic cutting and cross-cutting. Compared to traditional manual production methods, this reduces production costs by a significant amount and increases production efficiency.
By changing the raw material recipe, the cereal bar machine can produce many different types of products such as cereal bars, granola bars, peanut candy bars, puffed rice bars, nougat bars etc. The shape of the cereal bars can be round, square, semi-circular and triangular.

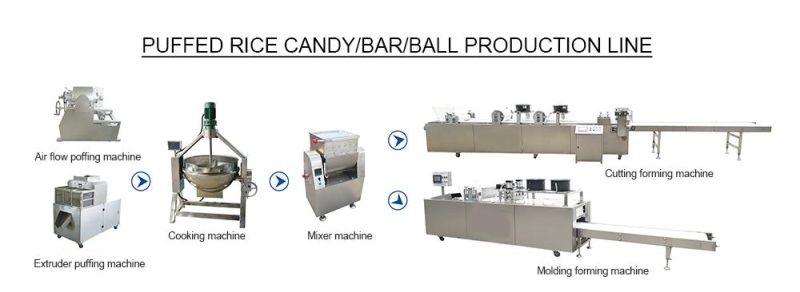

Process Flow of Nutrition Cereal Bar Processing Line
Feature of cereal bar cutting machine

1	Easy Operation--Adopts advanced computer touch screen, plc control, variable frequency speed control and automatic deviation of product parameters with convenient operation.
2	Fully automatic--It adopts continuous automatic feeding, flattening,dicing and conveying.
3	Strong Quality--The machine frame is made of standard heavy profiles through welding, ensuring sufficient rigidity and strength. The external part is made of 304 stainless steel.
4	Mutifunctional --One line can make cereal bar snack, peanut candy.

Machine Parameters of Nutrition Cereal Bar Processing Line

Machine Name	Capacity	Dimension
1.Grain puffing machine	100kg/h	1320*970*960mm
2.Sugar Cooker	100L	1320*970*960mm
	200L	1550*1200*1100mm
3.Mixing Machine	3-8kg/time	800*1400*820mm
	12-20kg/time	800*1650*1600mm
4.Cereal bar cutting machine /cereal bar press machine	150-200kg/h	1880*1110*1160mm
5.Cereal bar packaging machine	30-200pcs /minute	3200*600*1000mm

Characteristics of Nutrition Cereal Bar Processing Line
1.The food contact location is made of stainless steel 304 material, which meets the food QS and pharmaceutical GMP hygiene requirements.
2Double frequency conversion system control, bag length is set and cut immediately, saving time and film.
3.High-sensitivity electric eye automatic tracking, no need to manually adjust after setting, sealing and cutting size, accurate position, strong and beautiful sealing.
4.Temperature independent PID intelligent control, stable temperature control, better suitable for various packaging materials.
5.Color touch screen display, positioning shutdown, automatic fault diagnosis, the display is clear at a glance.
6.Intelligent human nature parameter design, ordinary personnel can use it skillfully in a short time. Reduce the professional skills requirements of operators.
7.A variety of cutting packaging shapes: straight, popcorn, corrugated, continuous bag, etc.
8.Suitable for moon cakes, bread, biscuits, candies, medicines, daily necessities, hardware parts, paper boxes, plastic products or all kinds of solid objects with regular shapes.
Sample Image of Nutrition Cereal Bar

Cereal bars are cereals such as oats, rice, corn and other cereals as the main raw material, using high-viscosity syrup bonded into a block, stick-shaped products; in addition to the main raw material cereals, the product will also add nuts, dried fruit, candy, chocolate and other spreads; the current domestic market sales of cereal bar products are mostly foreign imports, the product is generally in the form of a single layer, that is, the surface decoration, bottom support or the entire package added Flavoured coatings, such as chocolate coating, butter, condensed milk coating, etc.

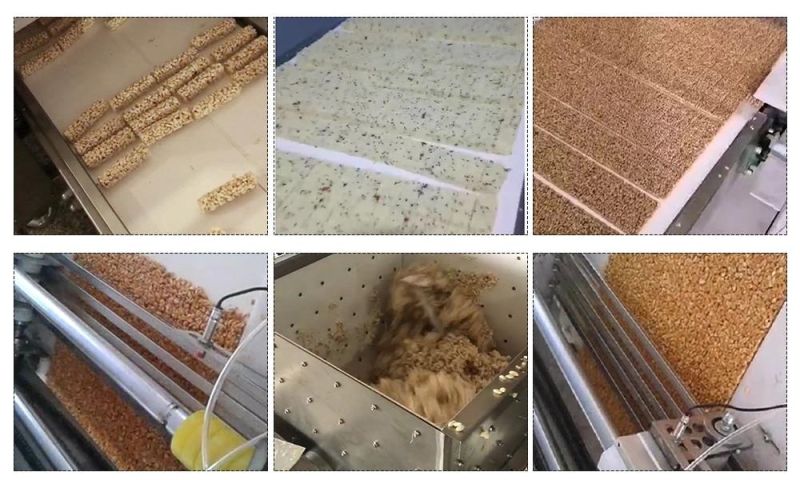

Machine Details

All machines are made of food-grade stainless steel and the conveying lift is also made of food-grade PVC. The entire production line is made of safe and harmless materials selected by our technical procurement staff after careful selection. The internal accessories are all made of well-known domestic brands and are of high quality.
Company Introduction
The company has been engaged in the research and development and manufacture of food machinery, biscuit equipment, rice and flour machinery, casual food processing equipment, fruit and vegetable processing equipment, etc. for many years. We provide domestic and foreign food factories with a series of complete solutions from market research to product selection, plant design, equipment matching, installation and commissioning, and packaging design. Ltd. has passed IS09001 and EU CE certification, and our equipment is exported to Europe, America, Southeast Asia, the Middle East and other regions. The company has a perfect pre-sales, sales and after-sales service system.
Shipping Pictures
Customer Visits

If you would like to come and visit our factory, you are more than welcome to do so!
Company Honours
