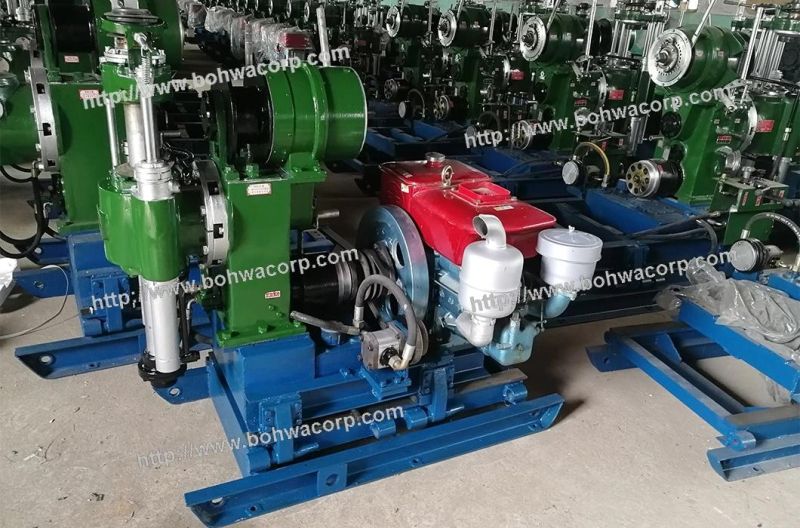

Spindle Stroke Multi-Functional Diamond Core Drill Rig
Wenzhou Dongyin Machinery Manufacturing Co., Ltd.Base Info
Description
Basic Info.
Model NO. BHD-100 Type Crawler Drilling Rod Dia 42, 50 mm Drilling Angle 0-180 Spindle Speed 118,260,392,863 Rpm Spindle Stroke 400 mm Max. Feeding Pressure 18 Kn Max. Lifting Capacity 23kn Max. Spindle Output Torque 630n.M Max. Lifting Capacity of Winch 10 Kn (Single Wire) Drum Speed 0.61,1.34m/S Diameter of Steel Cable 9.3mm Drum Capacity 24m Diesel Engine 8.8kw Weight 500kg for Rig on Skid Base, Excluding The Power Un Transport Package Bohwa Trademark BOHWA Origin China HS Code 84304900 Production Capacity 30PC/MonthProduct Description

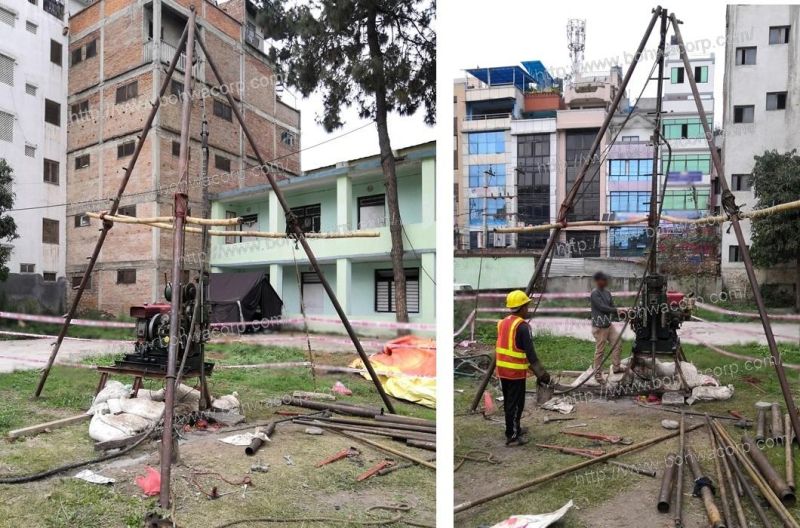

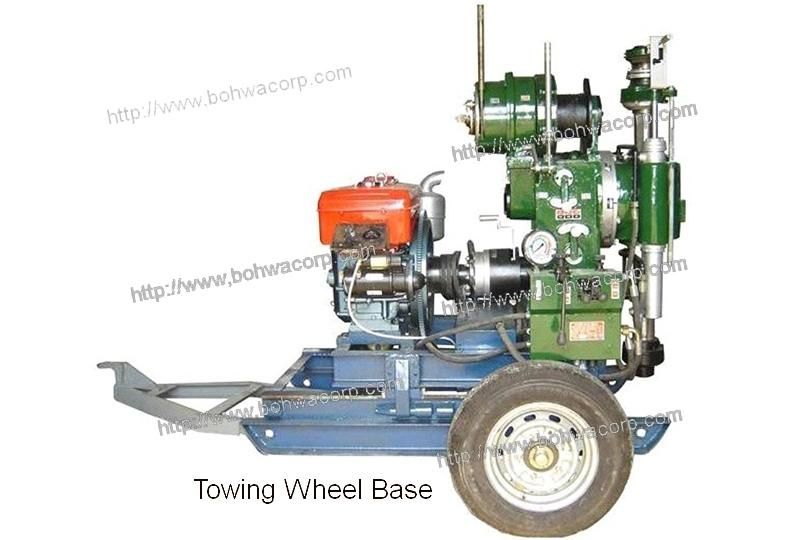

WD-100 is a simple rig suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. It is mainly used for:- Core Drilling with Conventional Coring Tools.
- Water Well Drilling by Carbide and Rotary Drilling.
- SPT Test;
- Soil Sampling with Auger Drilling.
- Anchor Drilling
- Micro Piling.
- Geothermal Drilling.
- Features & Benefits
- Compact in size and light in weight, easy to be carried and transported on difficult working sites.
- Rigid friction disk clutch which is made of MILITARY POWDER METALLURGY, offers power transmission from the engine/electrical motor to the working mechanism, and ensures reliable power transmission in extra hard drilling conditions. It helps to avoid the failure of power transmission as compared to the V-belt-Pulley transmission system and important to help to avoid or reduce the chances of drilling rod locking in the borehole.
- The gearbox is compact in size and light in weight. ALL THE GEARS AND THE GEARBOX HOUSING ARE MADE AND HEATING TREATED BY THE MANUFACTURING FACTORY ITSELF, SPARES QUALITY GUARANTEED.
- The hydraulic slide base allows that driller to remove the drilling rig easily to and away from the borehole center.
1. Drilling Capacity
Opening Hole Dia. | 150mm | 150mm |
Final Hole Dia. | 150mm | 75mm |
Max. Drilling Depth | 30m | 100m |
3. Drilling Angle: 0°~180°
4 Rotary Unit
1) Spindle Speed: 118,260,392,863 rpm
2) Spindle Stroke: 400 mm
3) Max. Feeding Pressure: 18 kn
4) Max. Lifting Capacity: 23kn
5) Max. Spindle Output Torque: 630n.m
5. Winch
1) Max. Lifting Capacity: 10 kn (Single Wire)
2) Drum Speed: 0.61,1.34m/s
3) Diameter of steel cable: 9.3mm
4) Drum Capacity24m
6. Working Stroke of the Hydraulic Slider Base: 242mm
8. Power
Diesel Engine: 8.8kw. Electric Motor: 7.5kw
9. Overall Dimensions (L×W×H)
With Diesel Engine: 1400×800×1120 mm
With Electric Motor: 1400×700×1120 mm
10. Weight: 500kg for rig on skid base, excluding the power unit.
