• Model NO.：6212
• Customized：Customized
• Voltage：210-230V,50,60Hz
• Power：1.4kw
• Material：Stainless Steel
• Function：Frozen Yogurt, Soft Serve Ice Cream
• Transport Package：Carton with Pallet
• Specification：12L,Hour
• Trademark：SPACE
• Origin：Zhejiang, China (Mainland)
• HS Code：8418699020
• Production Capacity：10000 Sets,Month

MODELPOWERVOLTAGEN.G.(KG)W.G.(KG)DIMENSION
(NET)DIMENSION
(PACKING)62121.4KW210-230V/50HZ105 120725mmx440mmx770mm815mmx530mmx950mm

Offer
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Feature:
1. Table model
2. Air cooling
3. Single flavor
4. Electronic pump inside the cylinder , ensure a high overrun ice cream
5. Stainless Steel Panels
6. LED disaply automatic control
7. Automatic control


Freezing cylinder
One, 4 Liter

Mix hopper
One 1Liter
Separate hopper refrigeration(Pre-cooling)maintains mix below 4.4 ºC.


Microprocessor controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.


Mix low light
The mix low light turns"on" to alert operator to add mix, preventing cylinder over freezing.


Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 ºC during long no-use periods.


Counter
Records number of dispenses per day and total number of dispenses.



Output
12 Liter/Hour(At 4 ºC liquid &24 ºC Ambient)


Electrical requirements
One dedicated electrical connection is required.
Make voltage steady when machine is ON.


Main motor
one, 1.25HP


Refrigeration system
One compressors: 3838 BTU/hr. R404A

(BTU may vary depending on compressor used. )


Air cooled
Minimum clearance of 152 mm on both sides is to achieve optimum performance.
Refer to the local situation to regulate the parameters, on basic of the data label. Specificaitons of the improvements are subjuct to change without notice.


Options
Local specific plugs of power supply wire
Cup cone dispenser
Power supply:208-230V/60HZ

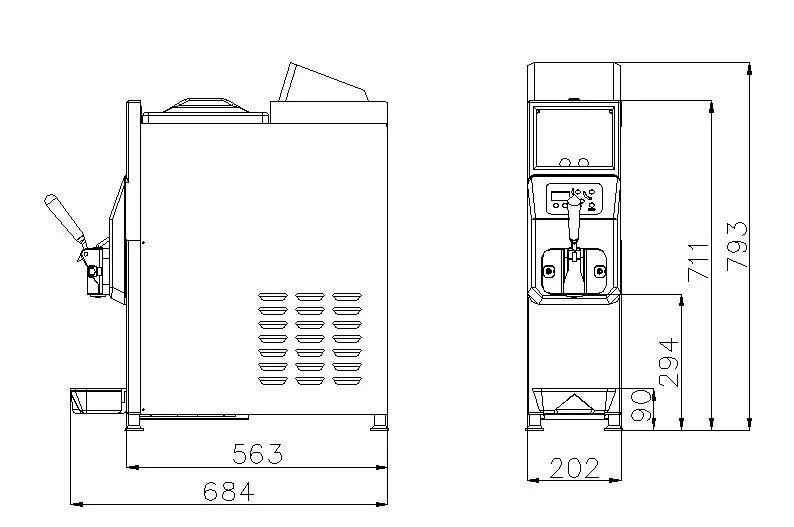

The contour dimensional drawing








1. Guarantee Time: 12 month

2. Professional manufacture of ice cream machine since 1998 . Quality and quantity guaranteed

3. Specialized after-sales team offer technology support . Extra spare parts are attached with order for stock accessories

4. Fast delivery and good quality control team to ensure timely delivery.
