Basic Info.

Model NO. SJ-50*2/MD1000 Machine Weight 2500kg Certification CE Screw Diameter (mm) 50 Film Width(mm) 200-1000 Film Thickness(mm) 0.006-0.10 Max. Extrusion Output (Kg/H) 80 Die Size(mm) 100/200 Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Guarantee One Year Delivery Time 20 Days Transport Package Wooden Plate Specification 600mm Trademark RuiGao Origin Ruian Zhejiang China HS Code 847730900 Production Capacity 5 Sets/Month

Product Description

Taiwan Quality Double Layer Film Extrusion Machine



Machine Introduction

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

 in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw

 is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing

 the plastic films like low density polygene (LDPE), high density polygene(HDPE) and linear low density

 polygene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag

 and vest ones.



Machine Advantages

1, We use stronger steel plate for machine body, which make machine more stable

2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials,  it is very hard.  Copied from Taiwan

3, Hard surface gearbox, the life can be more 5 years.

4, Motor with CE standard, more 10 years life. Siemens brand

5, Electric parts is CHINT, best supplier in China.

6, Easy to operate and one worker can run 3 sets

7, Inverter: LG Brand

8, Temperature controller: Omron Brand



Machine Parameters

Model	SJ-50*2/MD1000	SJ-55*2/MD1200	SJ-60*2/MD1500
screw diameter(mm)	2×50	2×55	2×60
screw(L/D)ratio	28:1	28:1	28:1
screw Max.Rotary speed(r/min)	110	110	110
output(kg/h)	90	100	130
Main motor power(kw)	2×11	2×15	2×18.5
die-head diameter(mm)	250	300	350
rotary mode of die	continuous rotation	continuous rotation	continuous rotation
film thickness(single layer) (mm)	0.02-0.10	0.02-0.10	0.02-0.10
film Max.Folding width (mm)	1000	1200	1400
total power(kw)	60	70	85
weight(kg)	3500	4500	1500
overall dimension (m)	4.2×3.3×6	4.6×3.5×6	5.2×3.7×7

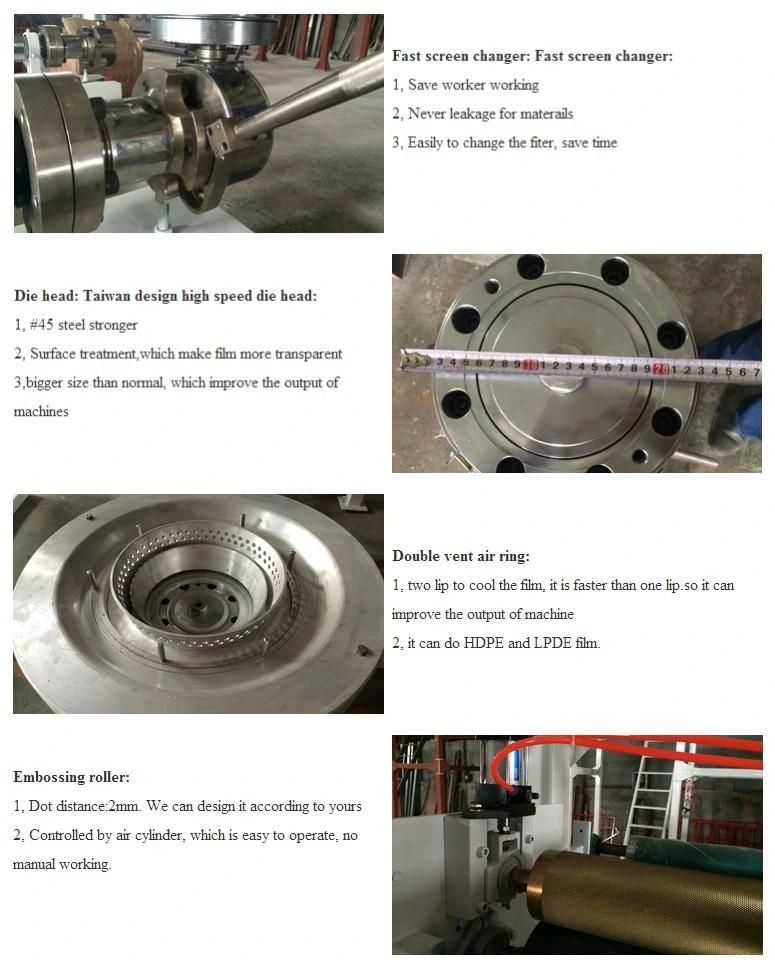

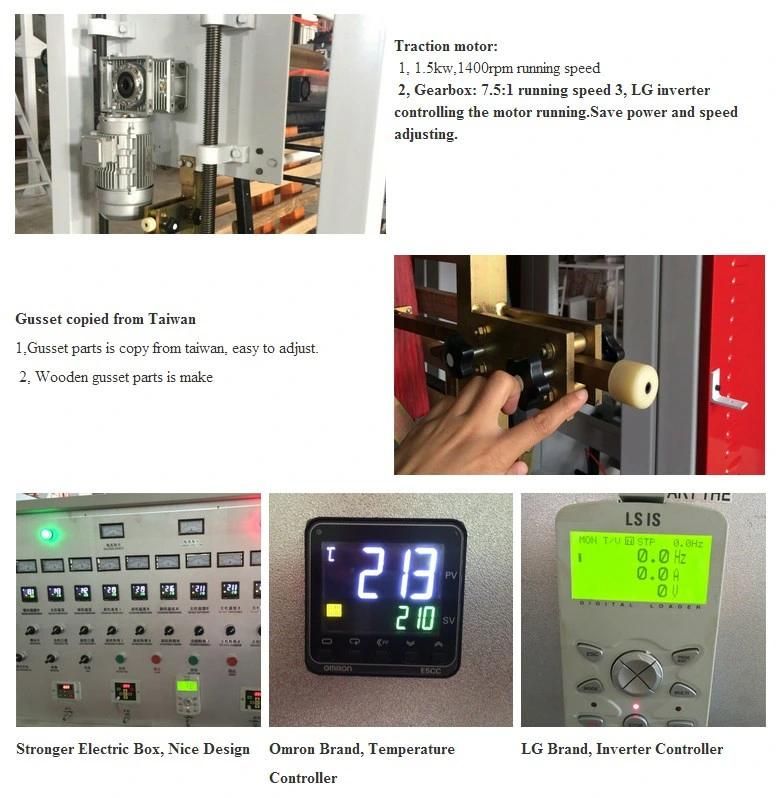

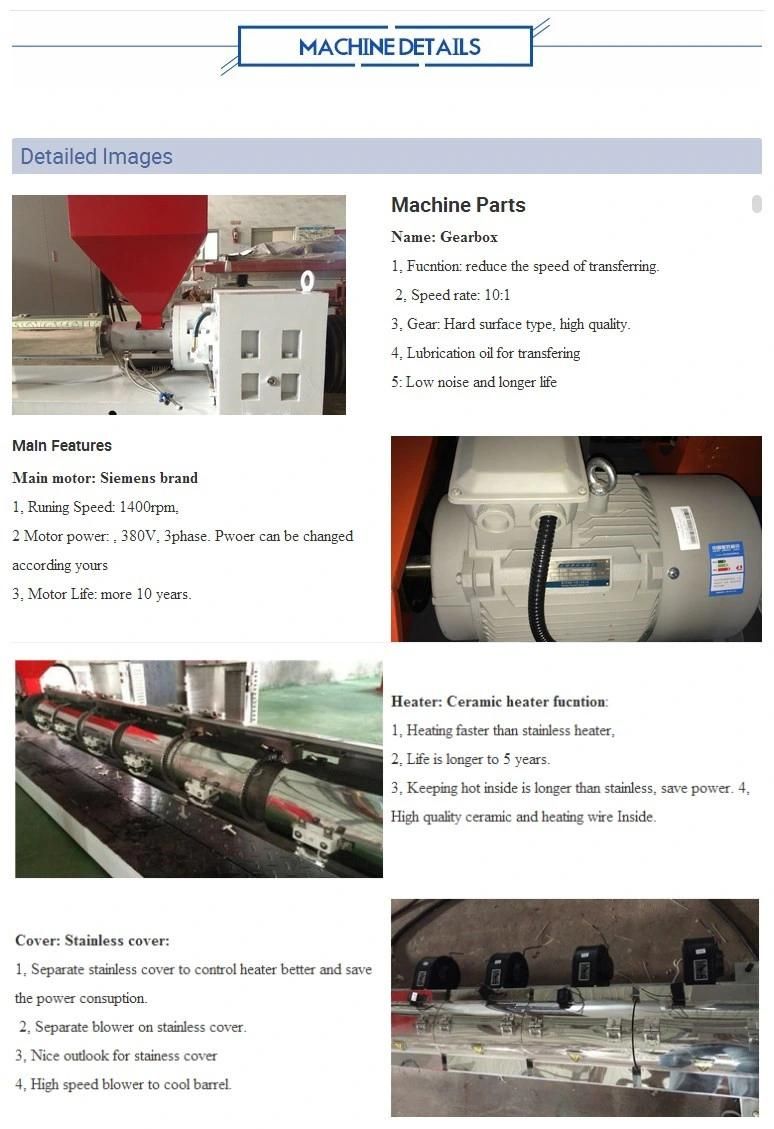

Machine Details






Welcome to contact with us. We will provide Excellent Price and High Quality Machine.
