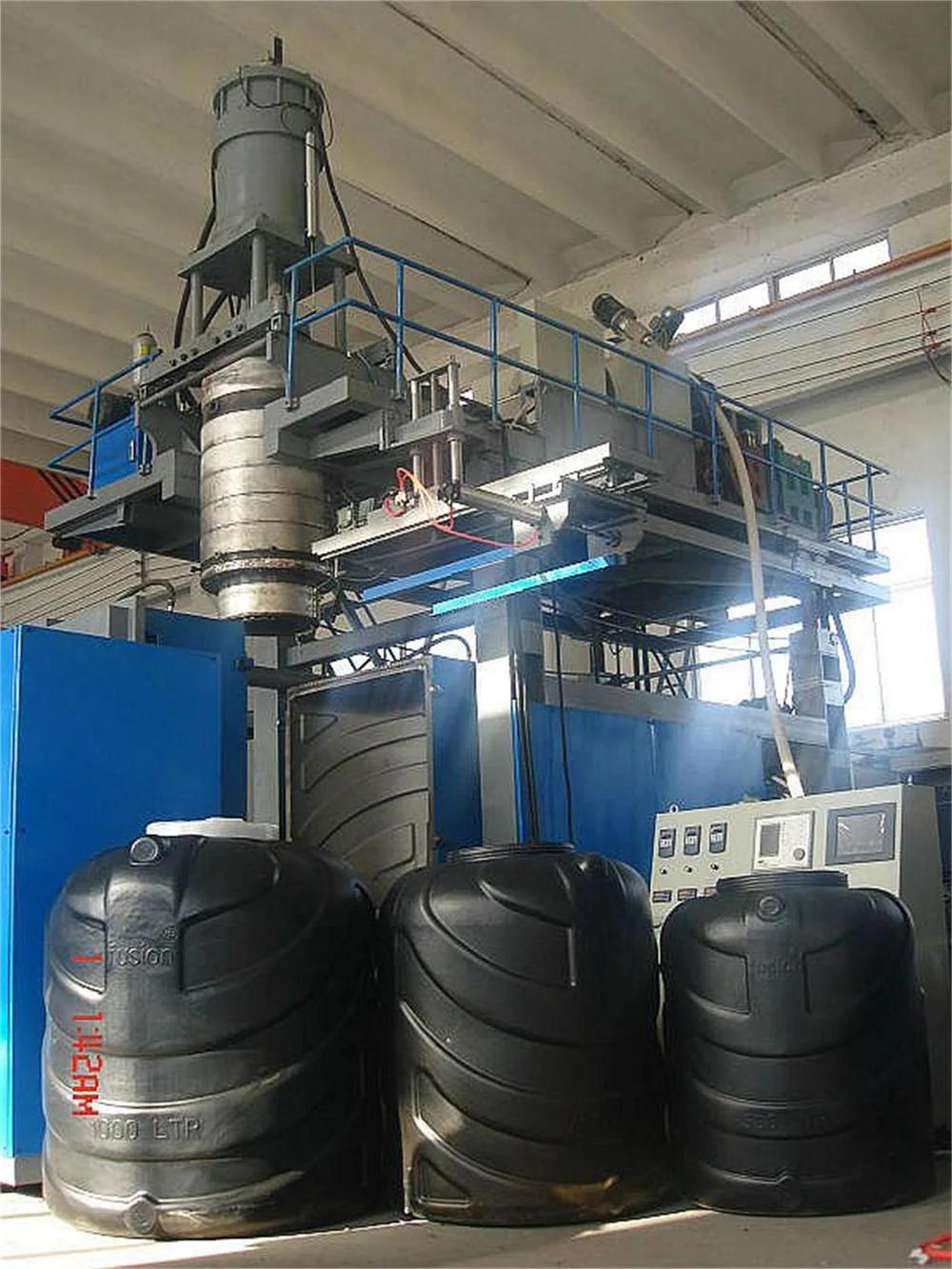

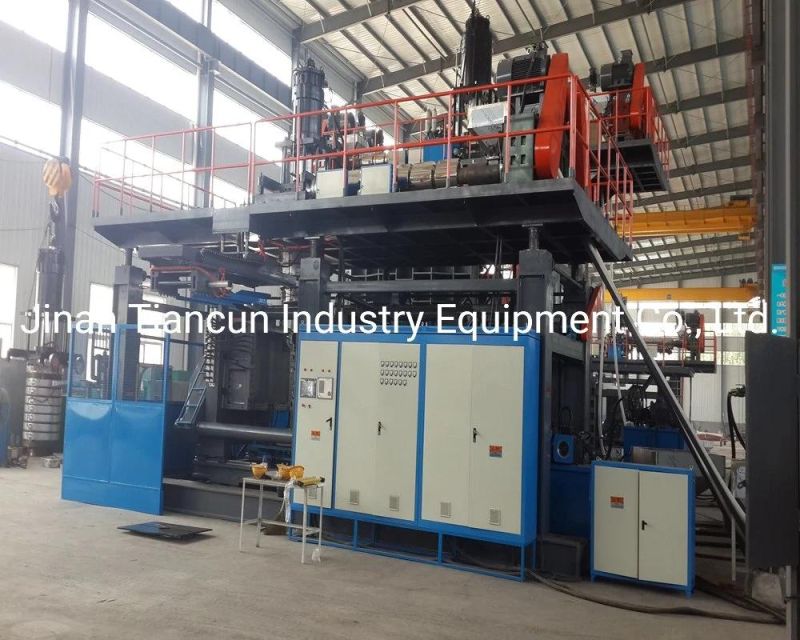

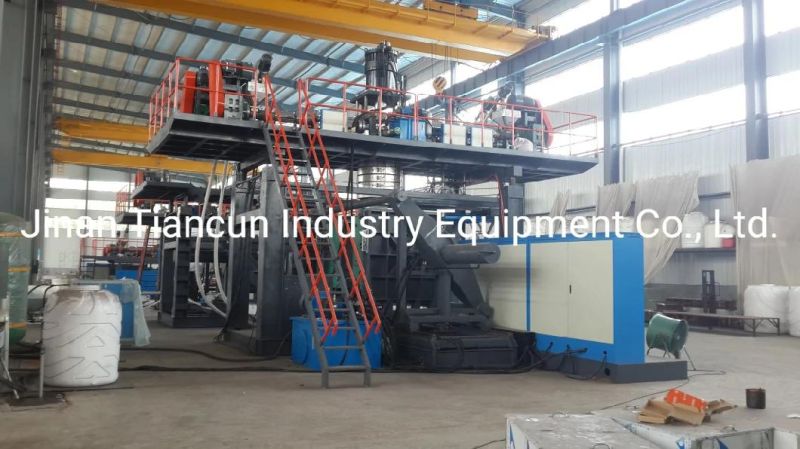

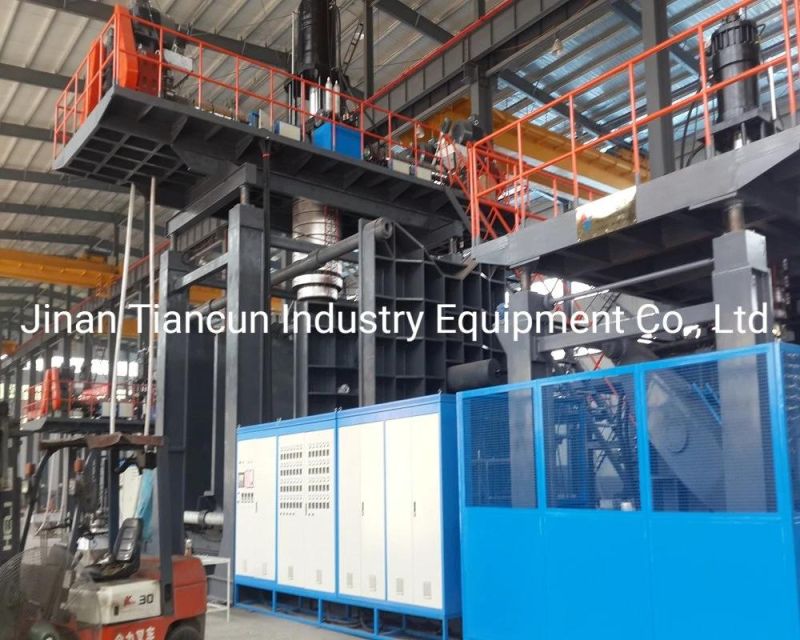

Water Tank Drum Extrusion Blow Molding Making Machine

HK AA Industrial Co., Limited

Base Info

Description

Screw   diametermm120/120Screw L/D ratioL/D25/1Extruder motor powerKW55/55Reducer model 250Screw heating zonezone12Screw heating powerKW4.4*12Plasticizing capacitykg/h450Die-head  Type of die-head AccumulatorAccumulator capacitykg35Injection cylinder diametermm500Injection cylinder strokemm340Servo cylinder diametermm500Servo cylinder strokemm65Die diametermmAccording   to productsDie head heating zonezone8Die head heating powerKW60Clamping system  Platen size (W*H)mm1420*   1500Platen thicknessmm50Clamping cylinder diametermm230Clamping cylinder strokemm1500Clamping forceKN800Distance between platensmm900-2400Max. mould size (W*H)mm1200*1500Water Tank Drum Extrusion Blow Molding Making MachineWater Tank Drum Extrusion Blow Molding Making MachineWater Tank Drum Extrusion Blow Molding Making MachineWater Tank Drum Extrusion Blow Molding Making MachineWater Tank Drum Extrusion Blow Molding Making MachineWater Tank Drum Extrusion Blow Molding Making Machine
Performance and advantages

1.Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the operation easy.
2.Adopt progressive hydraulic system by ourselves,easy to control.
3.Adopt inverter to control the clamping system,saving a lot of energy.
4.The technology of DIe Head is the same with Germany.
5.Suitable for producing different kinds of 2000L plastic tank.
6.Optional bottom sealing,product eject,core-pulling movement elements.
7.Adopt high output extrusion system,accumulating die head.
8.Hydraulic Servo control system
Water Tank Drum Extrusion Blow Molding Making MachineWater Tank Drum Extrusion Blow Molding Making Machine
