• Model NO.：GY-003
• Dimension(L*W*H):T 13.8*2.7*3.5m：Warranty:T 12 Monthes
• Transport Package：Wooden Case
• Specification：ISO9001
• Trademark：Genyond
• Origin：Shanghai, China
• HS Code：84386000
• Production Capacity：3 Production Lines Per Months

Basic Info.

Model NO. GY-003 Dimension(L*W*H):T 13.8*2.7*3.5m Warranty:T 12 Monthes Transport Package Wooden Case Specification ISO9001 Trademark Genyond Origin Shanghai, China HS Code 84386000 Production Capacity 3 Production Lines Per Months

Product Description

Product Description

Specifications

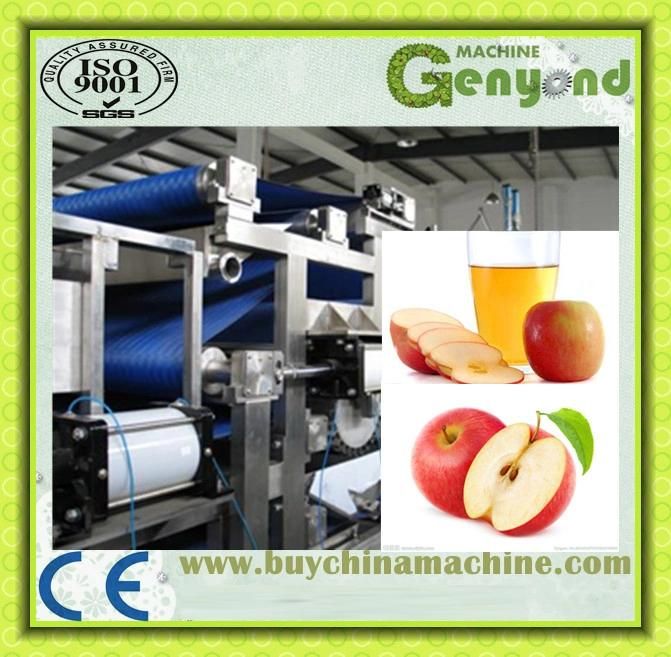

1.fruit juice production line
2.stainless steel
3.PLC control
4.high efficiency

Features:

This fruit juice processing plant can be used for making all kinds of fruit juice.  All the equipments are made of 304 stainless steel which is durable and clean. All the standard connecting pipes are made of 304 stainless steel, customers can also choose PVC pipes. The whole system is full automatic. There is automatic electric control system. It just needs a few operators to handle the plant.

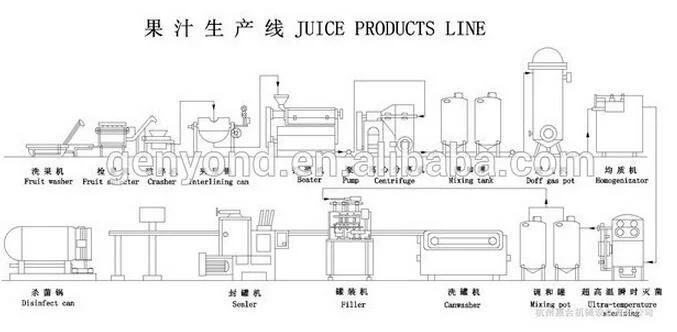

Main equipments:

juice extractor, water treatment plant, CIP cleaning system, sterilization machine, mixing tank, filling equipment.

Characteristics:

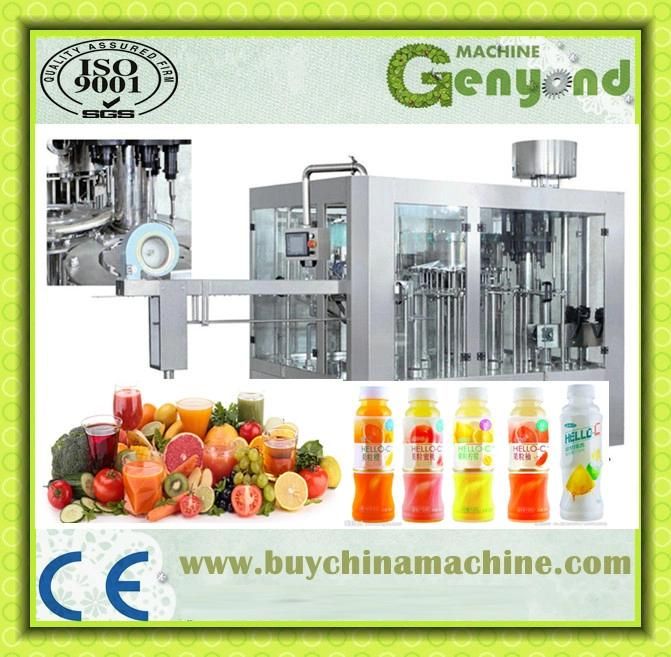

1. it can carry out washing pulp filling, liquid juice filling and capping in one machine.

2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.



1	Material	Fresh fruit
2	Final product	Glass bottle ,PET bottle ,Compound bag of packing fruit juice or fruit paste/jam
3	Process capacity	100--3000kg/h concentration fruit juice fruit paste/jam
4	Period of investment return	The line less investment, compared with large line can be in a relatively short time to recover the cost
5	Effective input	100-3000kg fruit juice fruit paste/jam /h (5% waste material ,etg: stone ,skin output)
6	Effective output	According to different fruit different
7	Composition of fruit juice	Pure juice, turbid juice, pulp fruit juices and juice with sugar, pure jam, flavor jam, etc
8	Sterilization ways	Pasteurization, high temperature sterilization, super high temperature sterilization ( according to inquired )
9	Final packing	200ml-500ml  Glass bottle ,PET bottle ,Compound bag
10	Output capacity	50kg -3000kg/h (according to fruit different .)
