Basic Info.

Model NO. RCSJ RCDJ Computerized Customized Certification ISO9001:2008, CE Color Could Be Customized After-Sale Service Eers Available to Service Machinery Overseas Material of Recycling Machines Stainless Steel Electric Grid 3p 220~440V 50 or 60Hz Transport Package Wrap Film Specification TSWL300~3000 Trademark RETECH Origin China HS Code 8477800000 Production Capacity 300~3000kg/H

Product Description

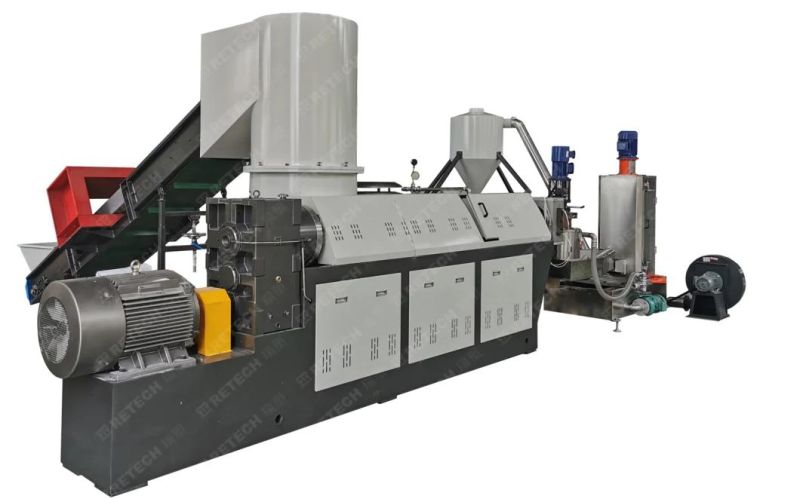

1000kg/h Polymer PP Woven Jumbo Bag PE LDPE film Pelletizing Recycling Granulating Machine with water ring cutter Pelletizer

Application:
Model:RCDJ Series
Plastic: PP PE LDPE LLDPE HDPE BOPP film,PP woven non-woven fabric,PS EPS XPS foam.etc
Capacity:150kg/h-1200kg/h
 Features:
RCDJ 1000kg/h Polymer PP Woven Jumbo Bag PE LDPE film Pelletizing Recycling Granulating Machine with water ring cutter Pelletizer is working to process all kinds of LDPE/HDPE film,such as leftover material,useless shopping bag film,logistic packaging film,etc.

Due to the character of HDPE film,it is high-density polyethylene,so it is with better stretchability compared to LDPE film.When recycling/pelletizing the HDPE film/bag,it is thought and recommended to use bigger motor for drive because of the low flow performance.

Models:

Model	Screw Dia	Power Consumption	Labor needed	Capacity(PE)
RC85	85mm	90kw/h	1-2	200-260KG/H
RC100	100mm	135kw/h	1-2	250-320KG/H
RC130	130mm	190kw/h	2-3	450-550KG/H
RC160	160mm	270kw/h	2-3	600-750KG/H
RC180	180mm	420kw/h	3-4	800-1000KG/H

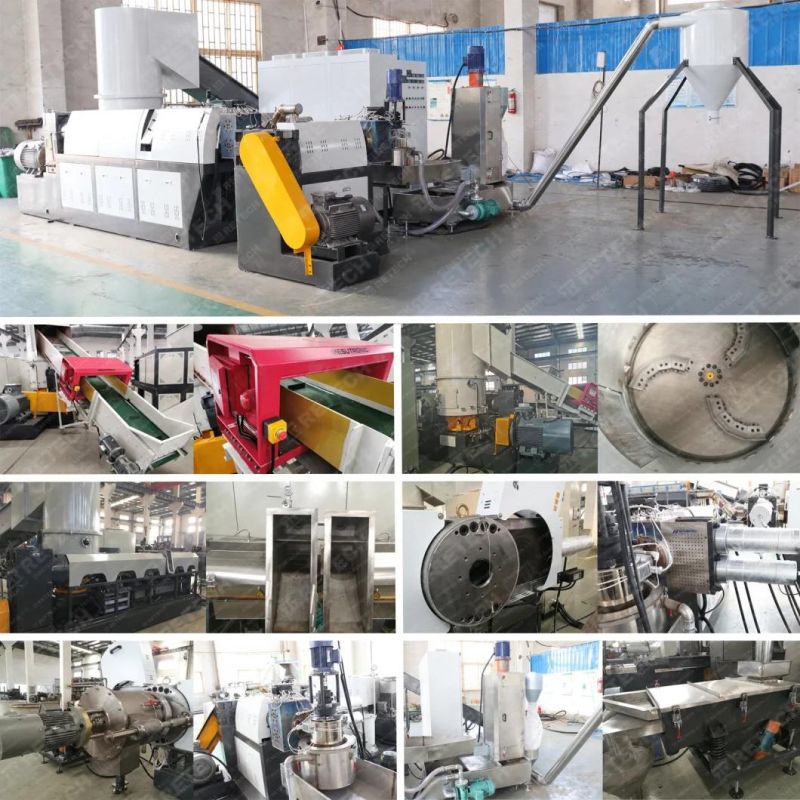

Machine Main Parts:

No.	Name	Quantity
1	Belt conveyor with metal detector	1
2	Compactor	1
3	RCSJ130/33 main extruder	1
4	RCSJ150/12 baby extruder	1
5	Hydrualic screen exchanger	2
6	Die face cutting system	1
7	Water flume	1
8	Dewatering machine	1
9	Vibrating screen	1
10	Blower conveying system	1
11	Storage hopper	1
12	Electric panel	1
