ISO9001 and CE Certificate Bfrp and Gfrp Rebar Making Machine

Zhengzhou Main Machinery Equipment Co., Ltd

Base Info

Description

Overview Detailed Photos

ISO9001 and CE Certificate Bfrp and Gfrp Rebar Making MachineISO9001 and CE Certificate Bfrp and Gfrp Rebar Making Machine

After Sales Service

ISO9001 and CE Certificate Bfrp and Gfrp Rebar Making Machine

MG-26 FRP Rebar Pultrusion Production Line
The machine includes:ItemsDescriptionQtyTechnical Data1Fiberglass Roving creels 2pcs

  1. Ivory paint, combined structure, easy accessibility, equipped with tension    device
  2. Bobbin capacity: 72/4 layers
  3. Dimension: 2000mm(L)x700mm(W)x2000mm(H)
  4. Equipped with roving guider to protect the fiberglass from scuffing
2Resin bath
(optional function: equipped with diaphragm pump)1pc

  1. 1 layer bath, equipped with one roving guiding device
  2. Bath dimension: 1000mm(L)x360mm(W)x220mm(H)
  3. Resin Capacity: 50kg
  4. Material of bath body: 304 stainless steel (water circulating heating)
  5. Dimension: 1600x810x1250mm
  6. Flow of diaphragm: 0-1m3/h

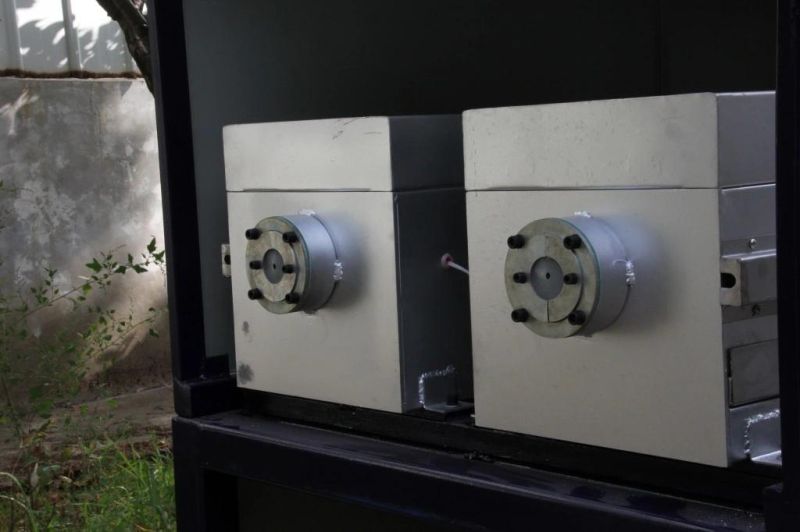

3Heating oven (included winder & unwinder
 1pc

  1. No. of heating over: 8
4Puller
 1pc

  1. Power: 380V/50Hz 2.2kW
  2. Clamping length: 1200mm
  3. Traction speed: 0.1m-1.0m/min
  4. Max pulling force: 40kN
  5. Clamping rubber length: 500mm
  6. Clamping mode: caterpillar type
  7. Dimension: 2200mm(L)x1600mm(W)x1400mm(H)
5Cutter
 1pc

  1. Cutting range: 500mm(W)x110mm(H)
  2. Diameter of cutting blade: ∮450mm/∮50mm (inner)
  3. Rotation speed of cutting blade: 2850rpm
  4. Cutting power: 380V/50Hz 2.2kW
  5. Clamping method: front and back double clamping
  6. Cutting feed method: air cylinder control
  7. Pneumatic cutting stroke: 600mm
  8. Length fixing method: by flapper
  9. Cutting precision: ±2mm
  10. Dust collection: vacuum cleaner  2.2kW  380V
  11. Dimension: 1850mm(L)x1250mm(W)x1510mm(H)
6Flipper table1pc
  1. Length: customer-made, width: 500mm
