Overview Product Description

Produce process :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

Main Composition

ItemQuantity1.SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)One set2.Die and MoldOne set3.Vacuum calibration unitOne set4.Haul-off unitOne set5.Cutter UnitOne set6.StackerOne setOptional auxiliary machines for your choice 1.PrinterOne set2.MixerOne set3.CrusherOne set4.Milling machineOne set5.PVC pipe belling machineOne setTechnical parameterDiameter(mm)16-40dual20-63dual20-6375-200160-315315-630Extruder modeSJZ51/105SJZ65/132SJZ51/105SJZ65/132SJZ80/156SJZ92/188Extruder power (kw)18.5AC37AC18.5AC37AC55AC110DCMax lineal speed (m/min)0.5-100.5-150.5-100.5-80.5-60.5-4Max capacity (kg/h)12025080-120180-250280-350500-600Installation area  24*2.8*2.0m30*2.8*2.2m35*3.0*2.4 m36*3.0*2.4 mDetailed Photos

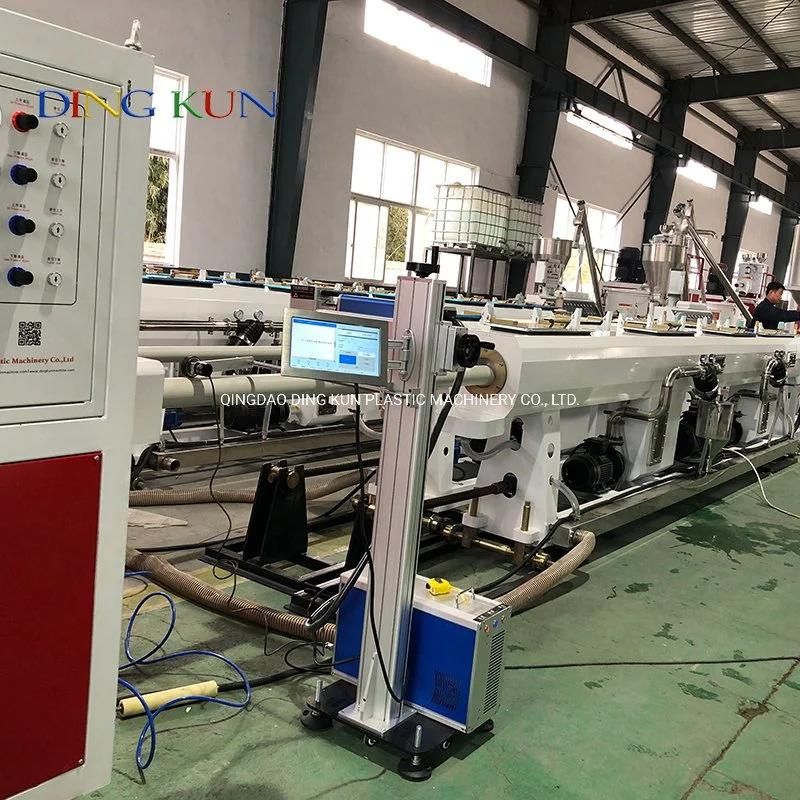

Pictures of Whole Production Line

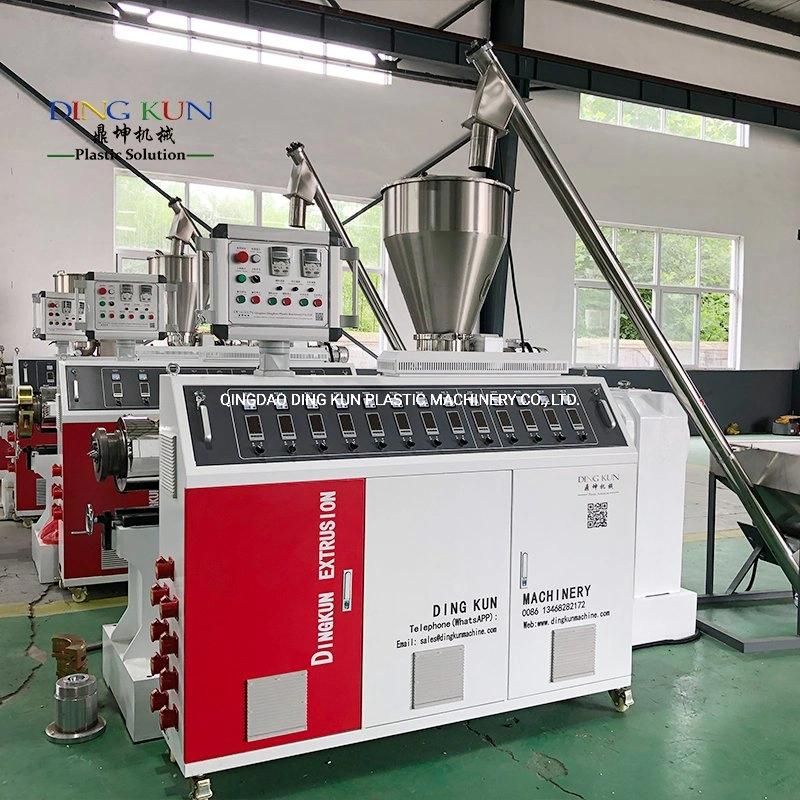

1. SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)

• World famous brand electrical component such as Siemens, ABB etc •High torque gearbox with adopts NSK/SKF bearing; •Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.

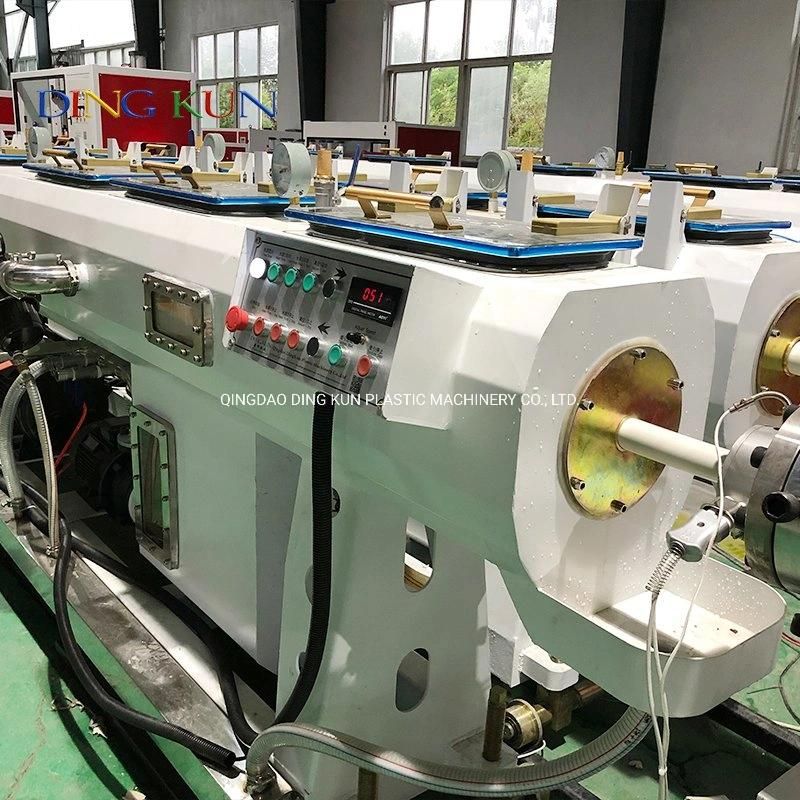

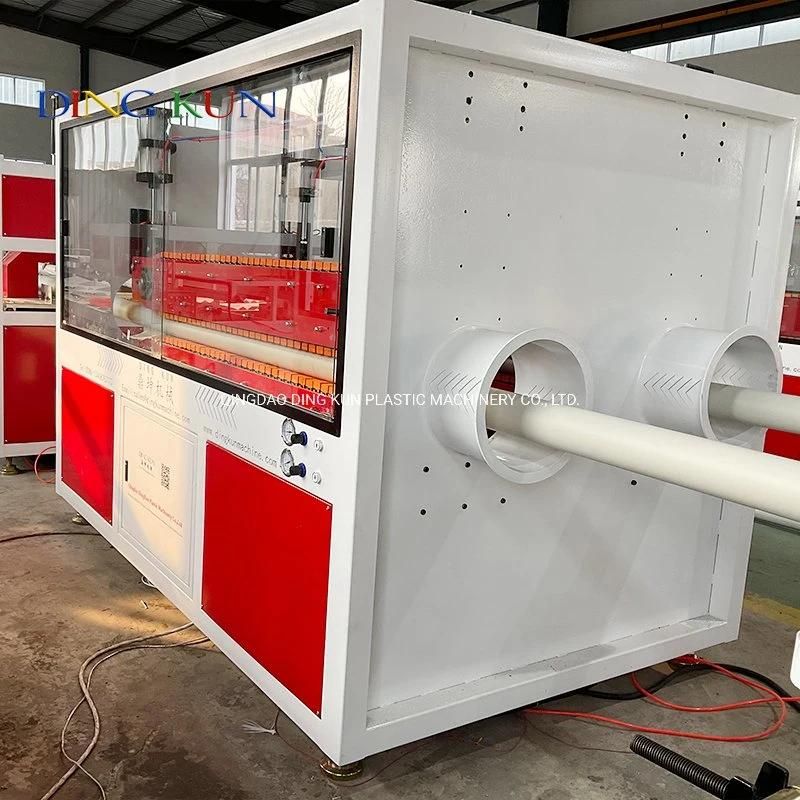

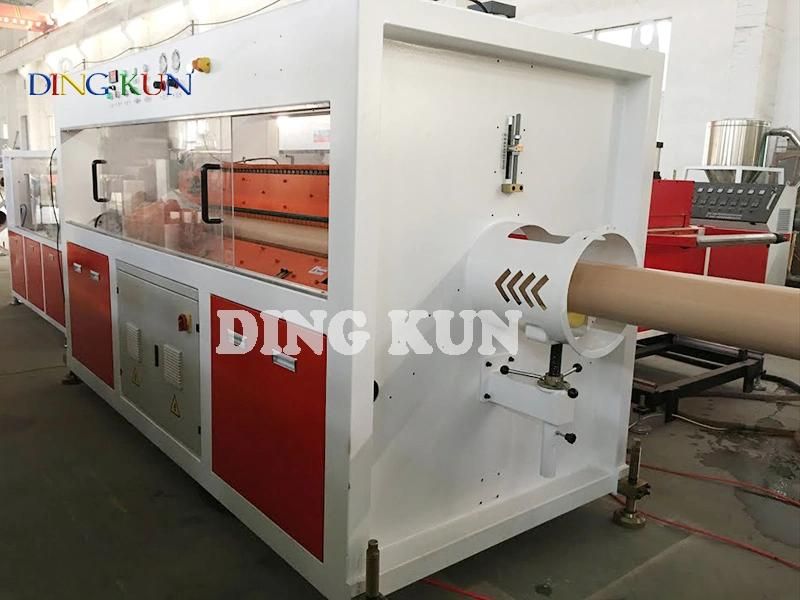

2. Vacuum calibration unit
• Include full set of vacuum and water pump • length 6000mm

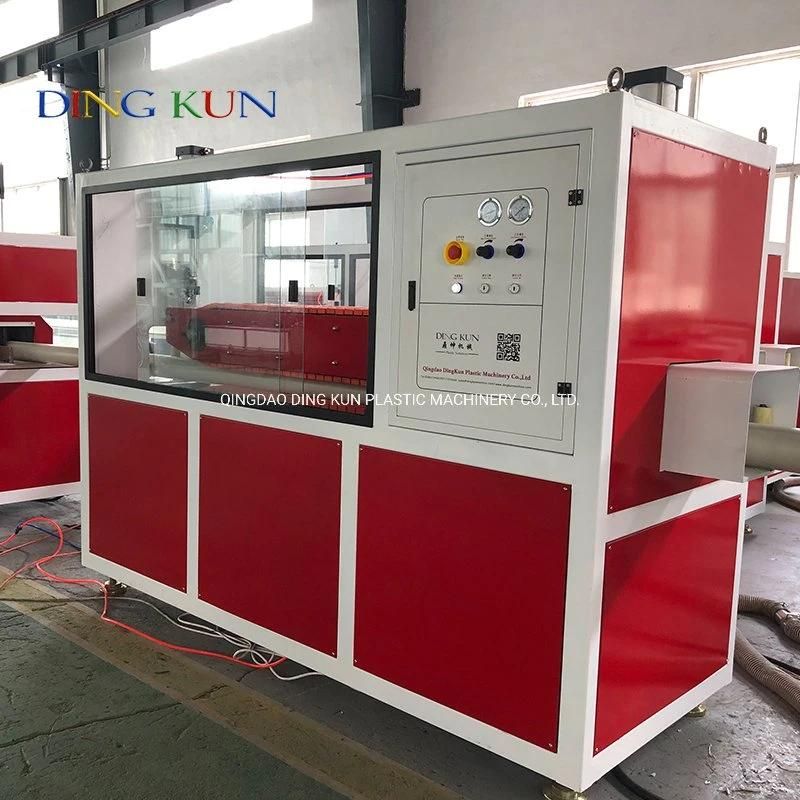

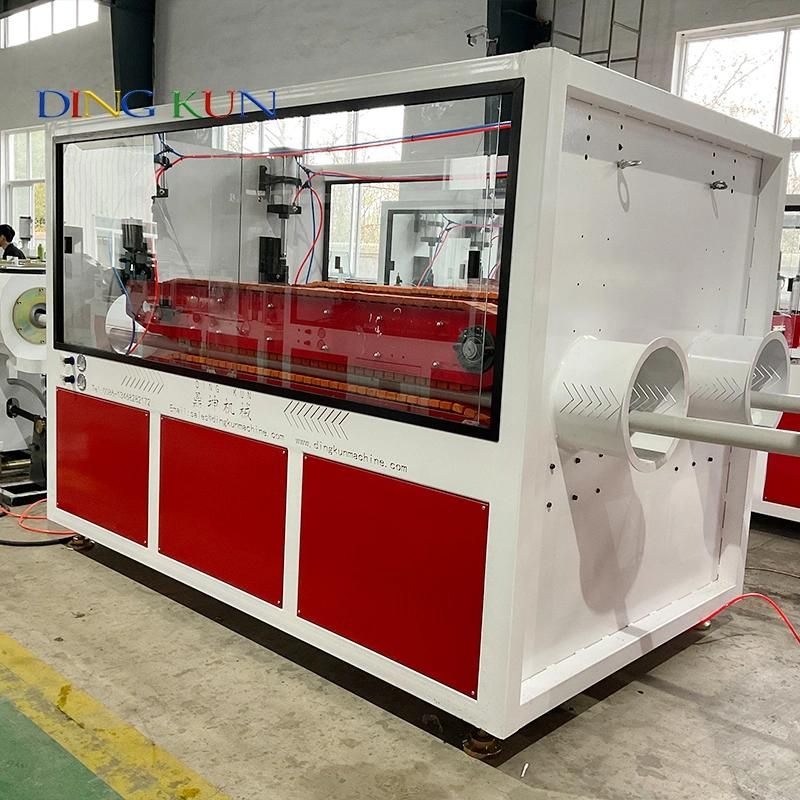

3. Haul-off unit + cutter unit
Upper and lower caterpillar is driven separately by the frequency inverter

SJSZ80/156 PVC PIPE MACHINE FOR 160-250mm / 160-315mm / 110-200 Double Pipe





Laser Printer

DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
