Hand Diamond Underwater Wire Cutting Rock Saw
Wuxi Lancy Beauty Technology Co., Ltd.- Application：Ceramic, Concrete, Stone, Marble, Granite
- Type：Electroplating
- Name：Hydraulic Diamond Wire Saw
- Keyword：Diamond Marble Concrete Cutting Saw
- Power Source：Hydraulic Power Unit
- Automation：Semi-Automatic
Base Info
- Model NO.：YG Diamond Wire Saw
- Dimension：1300*2500*300mm
- Motor Power：25kw
- Usage：Jadestone, Cement Brick, Concrete Curb, Granite
- Cutting Ability：High Speed
- Source Voltage：380V,220V
- Power：Hydraulic or Electric
- Transport Package：Wooden Case
- Specification：210kg
- Trademark：YUGONG
- Origin：Henan( China)
- HS Code：8461500090
- Production Capacity：20sets,Week
Description

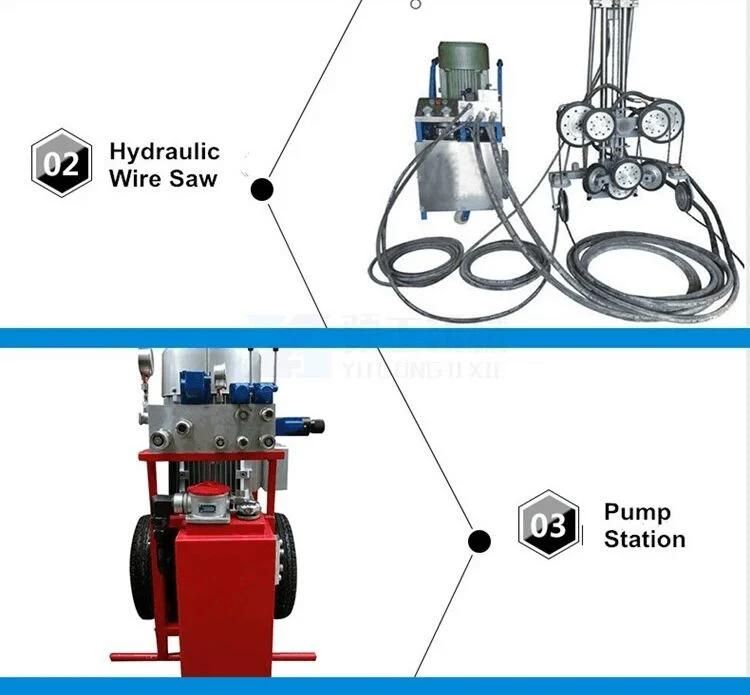

Hydraulic Pump
YG-25
Motor Power
25kw
Voltage
220V/380V, 50Hz
Motor Type
HM-80, 2 Cylinders
Rotation
1300r/min
Working Pressure
15-20Mpa
Weight
170kg
Size
720*650*1050mm
Frame & Wheels
Aluminum
Wheels
10
Weight
75kg
Size
90*90*1700mm

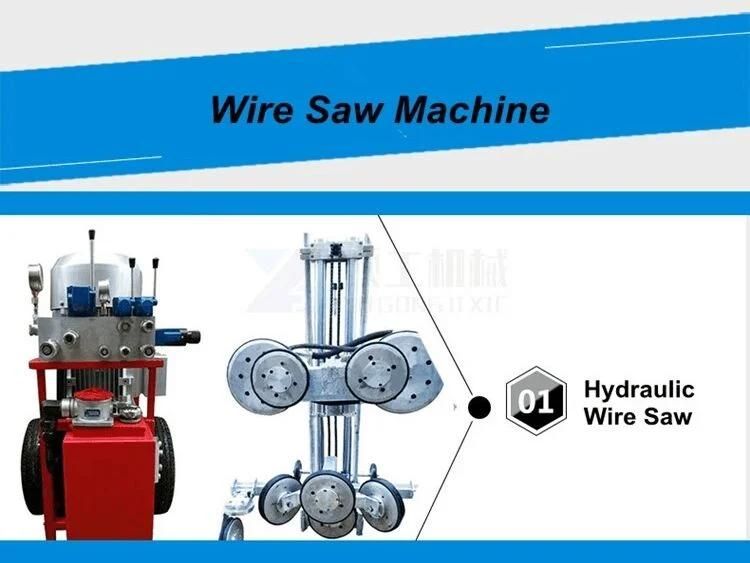

Diamond Wire Saw

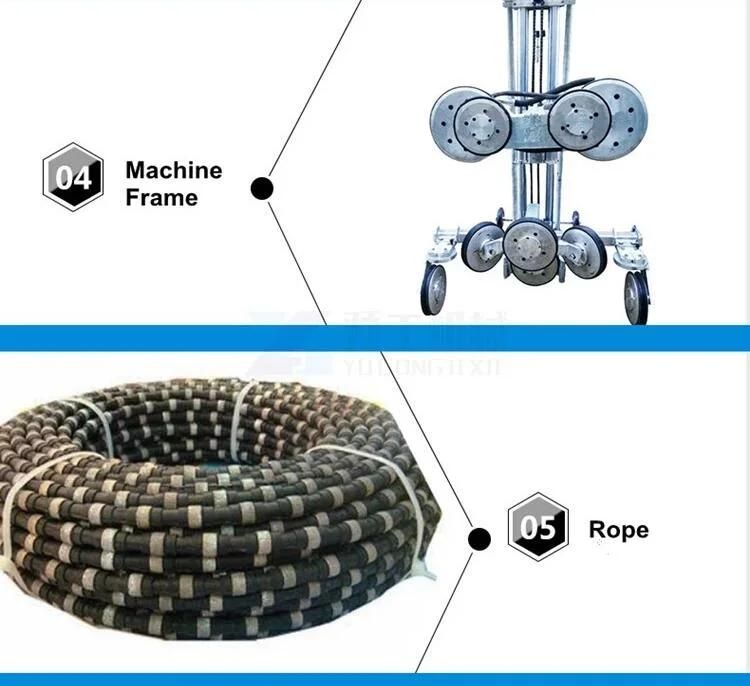

Diamond Wire
Specification
φ11.5mm 40beads/m
Cutting speed
3~5m2/h
Wire life
2~3m2/m
Structure

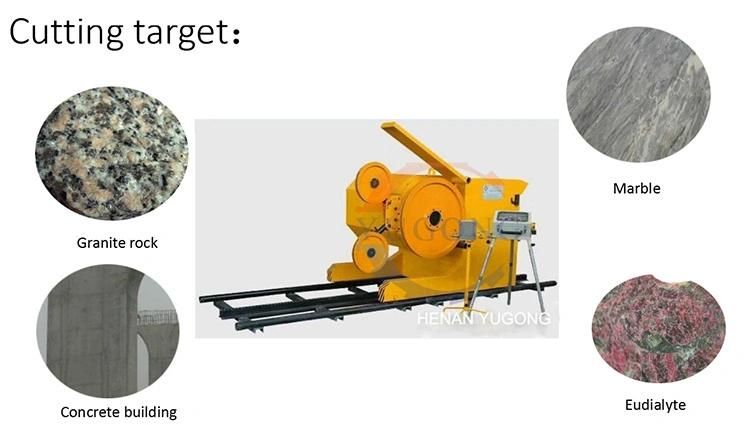

According to the power, it can be divided into two types: electric wire saw and hydraulic wire saw. According to the different cutting purposes and requirements, it can be divided into concrete cutting wire saw, mining wire saw (mining wire saw mainly for marble, granite mining shaping processing with mining waste stone cutting machine at the same time mining waste material)

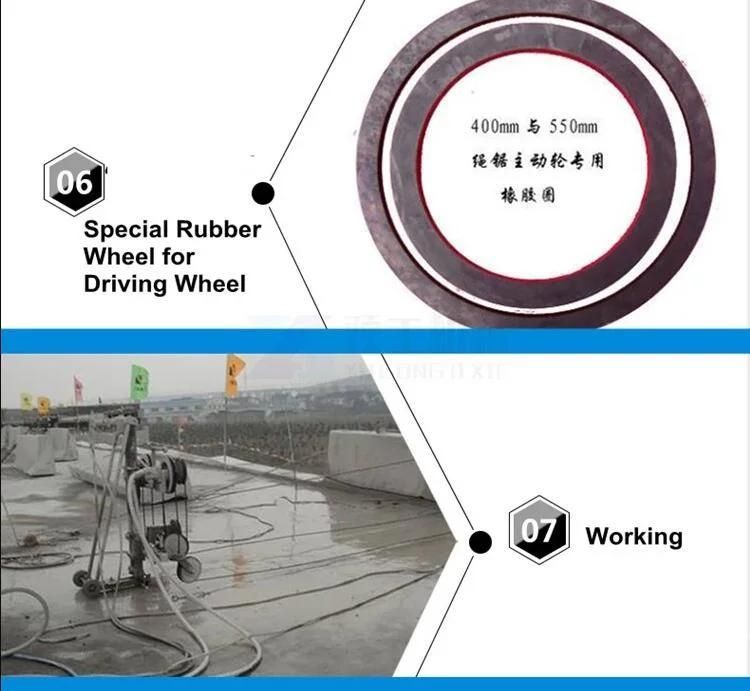

Working Site

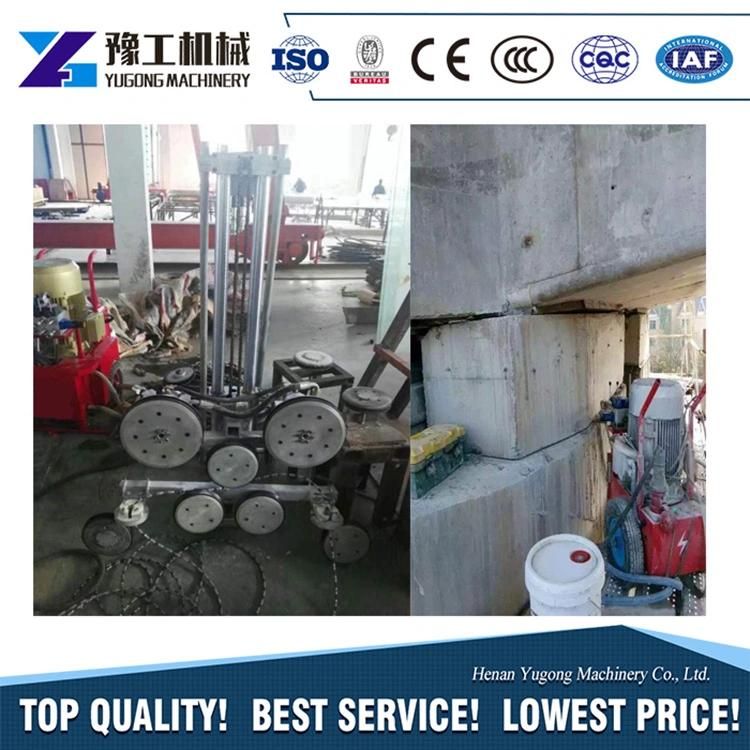

Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
Packaging& Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
