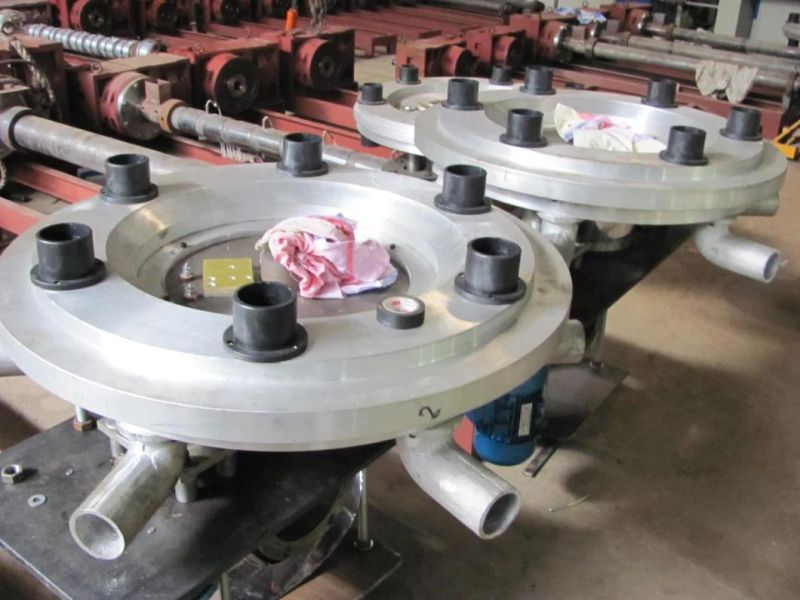

Sj-B Rotary Die Head PE Film Extrusion Machine (CE)
Zhengzhou Research Institute for Abrasives & GrindingBase Info
Description
Basic Info.
Model NO. SJ-B Machine Weight 2t Certification CE Size 600mm Sicrew 50mm Motor 11kw Max Output 35kg/H Single Side Thickness 0.01-0.1mm Machine Dimension 4000*1800*3600 Transport Package Wooden Case, Wooden Block, in Nude Specification 1200mm Trademark Fangtai Origin Ruian, China HS Code 84778000 Production Capacity 1 Set/ MonthProduct Description

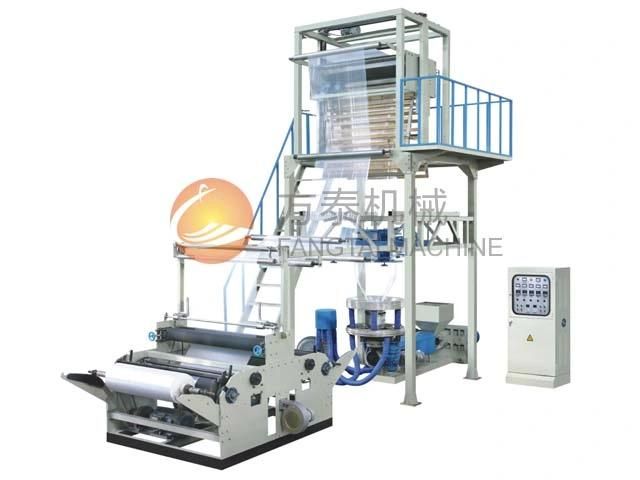

SJ-B50/55/65/65-1 PE High & low-pressure Film Blowing MachineUse:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
OPTIONAL EQUIPMENT:
1) AUTO LOADER
2) AIR SHAFT
Main Technical Variables:
| Model | B50 | B55 | B65 | B65-1 |
| Diameter of screw | Φ50 | Φ55 | Φ60 | Φ65 |
| Reduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
| Max. Extrusion(kg/h) | 35 | 50 | 65 | 80 |
| L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of main motor(kw) | 11 | 15 | 18.5 | 22 |
| Power of Traction motor(kw) | 1.1 | 1.1 | 1.5 | 1.5 |
| Heating Power(kw) | 11 | 13 | 19 | 21 |
| Outline diameter(L*W*H)(mm) | 4800*1900*3500 | 5500*2100*3800 | 6500*2300*4200 | 6500*2500*6000 |
| Weight(T) | 2T | 2.5T | 3T | 3.2T |
