• Model NO.：LK
• Transport Package：Customized Size
• Specification：Customized Size
• Trademark：CHEERING
• Origin：Guangzhou, Guangdong, China
• HS Code：84185000
• Production Capacity：50 Pieces,Month

Model NO. :  LKR Design: Depends on customers requirements.Cooling Method: Direct Cooling And Indirect RefrigerationInsulation Material: polyurethane sandwich insulation panelInsulation Material Thickness: 100mm, 150mm, 200mm, 250mmInsulation Material Density: ≥42Kg per cubic metreSteel Plate Thickness: 0.6mmInsulation Material Fire Rating:B2Connection:Concave and convex chamfer CAM lock hook connectionCorners Connection: L type angle panelRefrigeration Equipment: Bitzer Condensing Unit,  Air Cooler,Equipment Configuration:Condenser, Reservoirs, Gas-Liquid Separator, Oil Separator, H/L Pressure Controller, Condensing Pressure Controller, liquid Sight Glass, Solenoid Valve, Filter, H/L Pressure Gauge, Oil Pressure Gauge, Junction BoxBrand Compendents:Danfoss, Alco, Castol

Features:

1.refrigeration system: Compressor, Condenser, evaporator, Refrigerant.

-- condensing unit: bitzer, copeland, maneurop, fusheng. etc.

2.Electric system:Siemens and Schneider electric components or others.

3.Insulation panel:use 100%polyurethane insulation panel, density about 38~46kg/m3,with gasket,with flame retardant, panel thickness:100mm~200mm, standard width of panel is 980mm

1).Material:PU, metal sheet.

2).Metal sheet:Painted steel sheet,stainless steel sheet, aluminum or other.

3).Thickness of panel:75mm,100mm,120mm,150mm etc.

4). Thickness of cold storage panel temperature application.

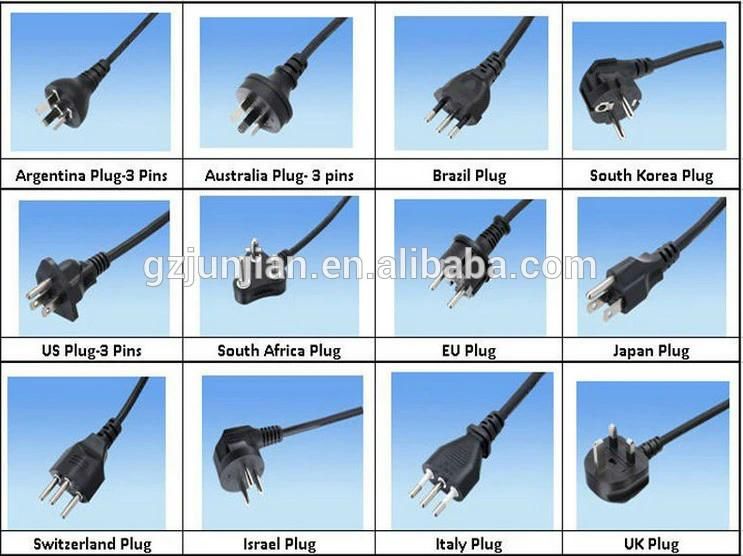

Plug optional:

(1)For the power supply, our standard products are 220V/50HZ.

(2)We provide custom-made service.

(3)If you need other power supply, please contact us.



Different Temperature:

1.0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
2.-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
3.-10 °C ~ -20 °C: Freezer Storage
4.-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
5.-35 °C ~ -40 °C: Blast Freezer, Quick-Freezer

Packing & Delivery

Packing Details : Each set is wrapped in a polybag and packed in a standard export wooden box
lined with foam
Delivery Details : 15-20 days after receiving your deposit

Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factor
After-Sales Service

One year warranty, and free replacement parts within the warranty period

Certifications



Our Company

Quick Contatc us:
