Basic Info.

Model NO. FB-B Automation Automatic Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 Screw Quantity 1set Heating Ring Steel Stainless Take up Section Fixed Screen Changer Manual Type Winder Type Single Station Auto Screen Changer Optional Corona Treater Optional Auto Loading Optional Rotary Die Head Optional Air Shaft Roller Optional Transport Package Wooden Package Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477309000 Production Capacity 30 Set/Month

Product Description

Product DescriptionA: Machine Description:The cylinders and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after revision finishing and nitrogen treatment. The auxiliary machine has a platform working table for making peration easy. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
B. USAGE:
It is used for blowing the various plastic film of low density polyethylene(LDPE), high density polyethylene (HDPE) and linear low density polyethylene(LLDPE) etc, Which are widely used for packing industrial products, textile, garments and food and for cohering farmland.
C.Technology Parameter

Model	FB-B600	FB-B800	FB-B1000
Screw Diameter	45mm	55mm	60mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	7.5KW	11KW	15KW
Max. Extrude Output	35kg /h	50kg /h	65kg /h
Max. Folding Width of Film	600mm	800mm	1000mm
Single-sided Thickness of Film	0.006 -0.10mm	0.006 -0.10mm	0.006 -0.10mm
Total Power	18Kw	22Kw	28Kw
Weight of Machine	2000kg	2200kg	2800kg
Overall Dimensions(L×W×H)	4200×1800× 3600mm	4400×2000× 4000mm	4600×2300× 4200mm

Model	FB-B1200	FB-B1500	FB-B2000
Screw Diameter	65mm	80mm	100mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	18.5KW	30KW	55KW
Max. Extrude Output	76kg /h	86kg /h	160kg /h
Max. Folding Width of Film	1200mm	1500mm	2000mm
Single-sided Thickness of Film	0.006 -0.10mm	0.01 -0.10mm	0.02 -0.10mm
Total Power	32Kw	52Kw	80Kw
Weight of Machine	3300kg	4300kg	5800kg
Overall Dimensions(L×W×H)	4800×2500× 4500mm	5200×2800× 5000mm	6800×3300× 8000mm

D: Details Information
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: Steel Stainless
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones
Heating Ring Material: Steel Stainless
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box

2. Take Up Section
'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder

3. Winder Unit
Rewinder Type: Friction Type
Rewinding Station: Single Stations
Rewinding Motor: Torque Motor
Pinch Roller: Steel Roller

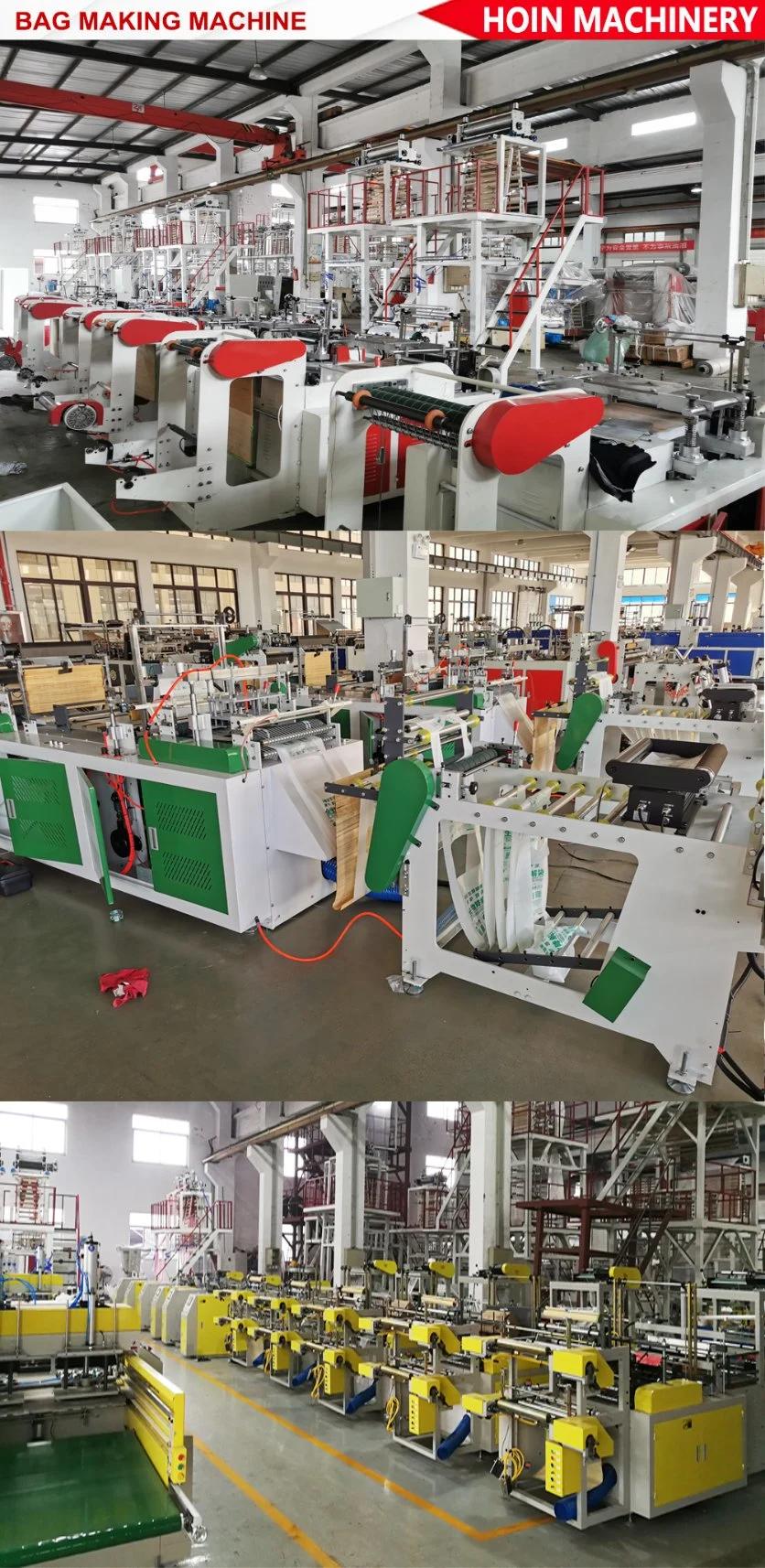

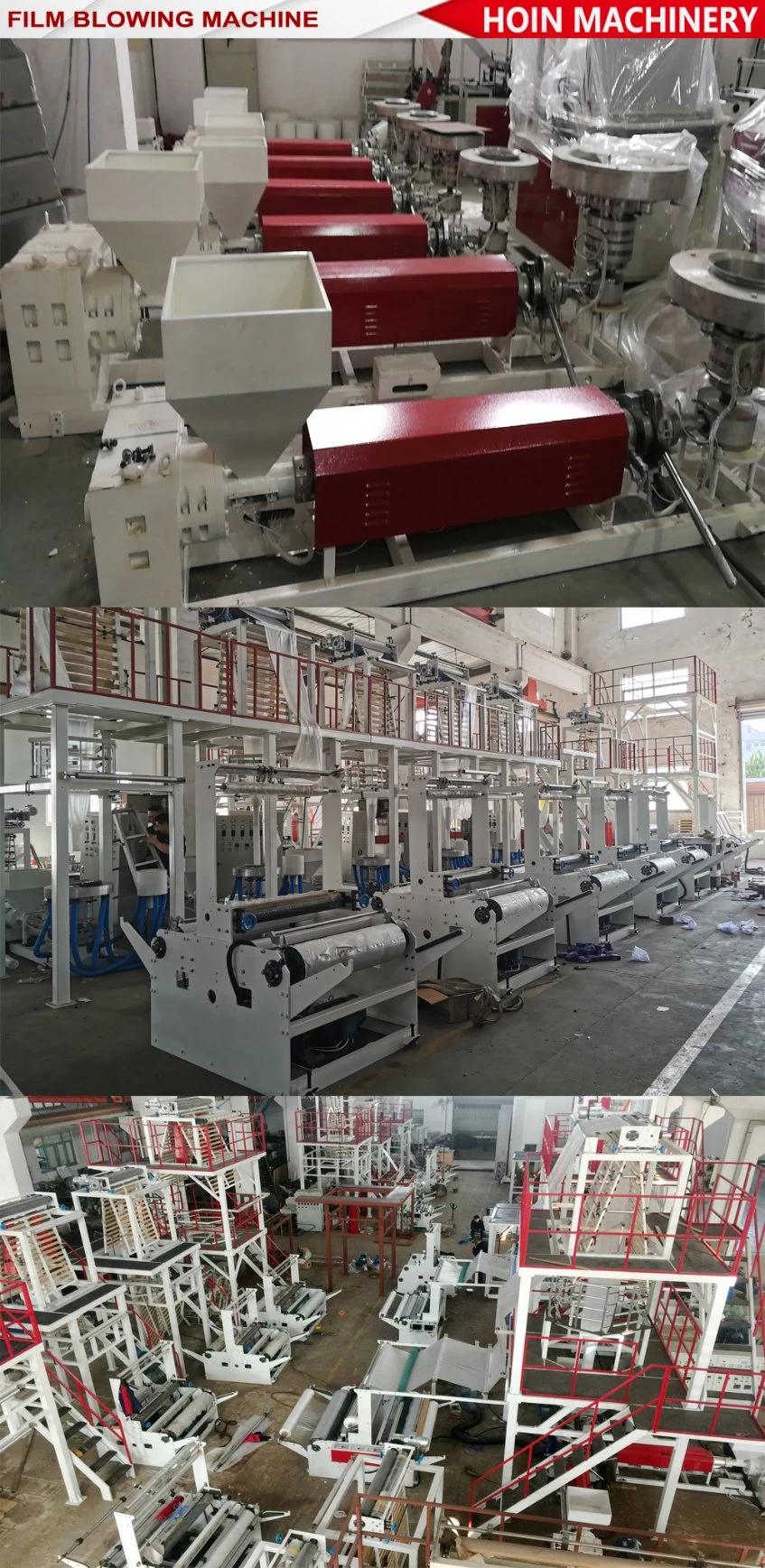

Workshop of HOIN

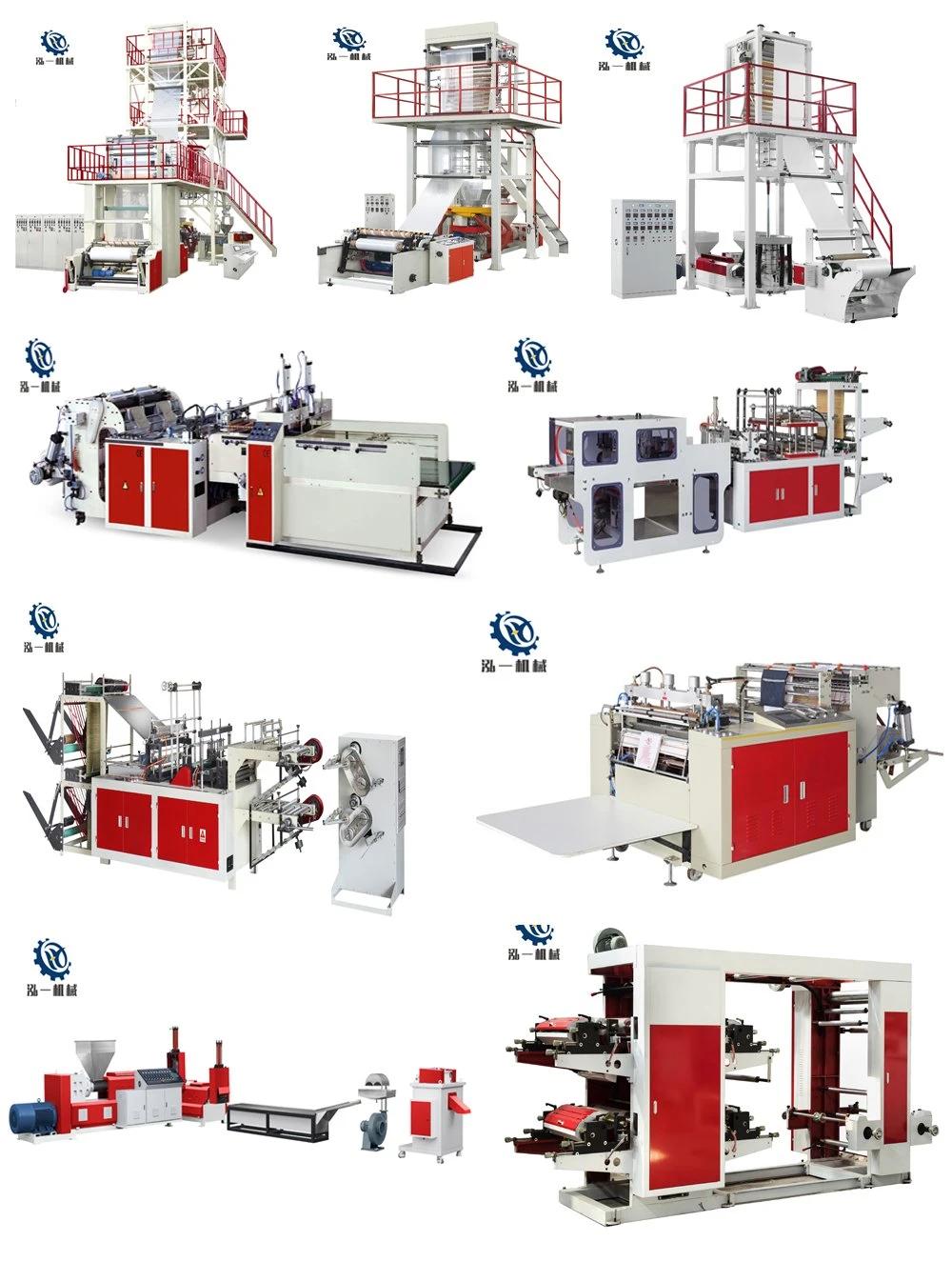

More Products Optional:
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
