Hws260 Pneumatic and Mud Pump Water Well Drilling Rig Sales
Kunshan Hexin Precise Machinery Co., Ltd.Base Info
Description
Model
HQZ-180L
Overall weight (T )
3.5
Dimension (mm )
3400*1500*2400
Drilling diameter (mm )
130-245
Drilling depth (m)
180
One-time advance length of the drill(mm)
3000
Traveling speed (km/h )
2.5
Climbing ability (max )
25°
Minimum Ground Clearance (mm)
250
Working Air Pressure (mpa )
1.45 - 2.5
Air consumption(m³/min)
15 - 27
Main machine power (kw)
Yunnei 42Kw
Rotary Speed (rpm)
38 - 80
Rotary torque (Nm)
4000-5000
HQZ-180L drilling rig detail information
The drilling rig is multi-functional, with different configurations suitable for different geology.All our water drilling rig accept customization, any good idea there please contact us, our engineers will help you get what you want, we can also put the rig on a truck mounted chassis.

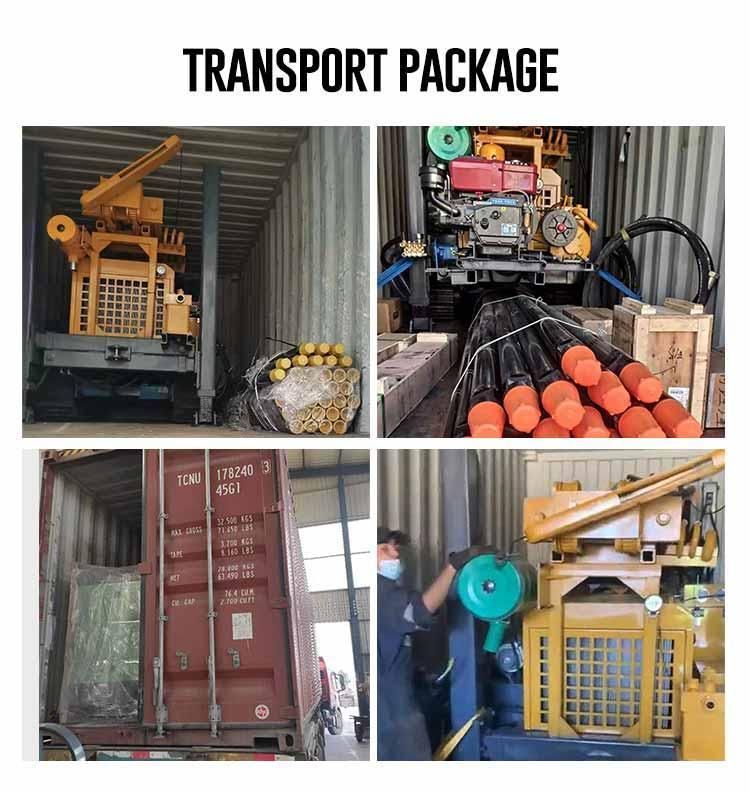

Drill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;Whole set with air compressor needs a 40GP;
Our factory is specialized in manufacture drilling rig , we have many models , if you have any questions, pls contact with us ,Contact person : Sally
