Basic Info.

Shaft Single Shaft Process Target PP Woven Bags Plastic Lumps, Thick Plastic Pipe, P Blade Material SKD-11 Hardness of Blade HRC55-60 Hydraulic Power 2.2-5.5kw Maximum Capacity 2000kg/H Motor Protection Standard Tp44 Brand of Bearing NSK Brand of Gearbox Deling Back and Forward Hydraulic System Transport Package Sea Worth Package Specification CX-600 Trademark chenxing Origin Jiangsu, China HS Code 8477800000 Production Capacity 800sets/Year

Product Description

Main Features:

1. Adapt Germany newest shredding technology, special for crushing aluminum, plastic, wood, paper and so on
2. Low noise
3. High capacity about 800-1000kg/h
4. Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
5. Unique hydraulic pushing system accelerates the shredding speed, for light material particular.

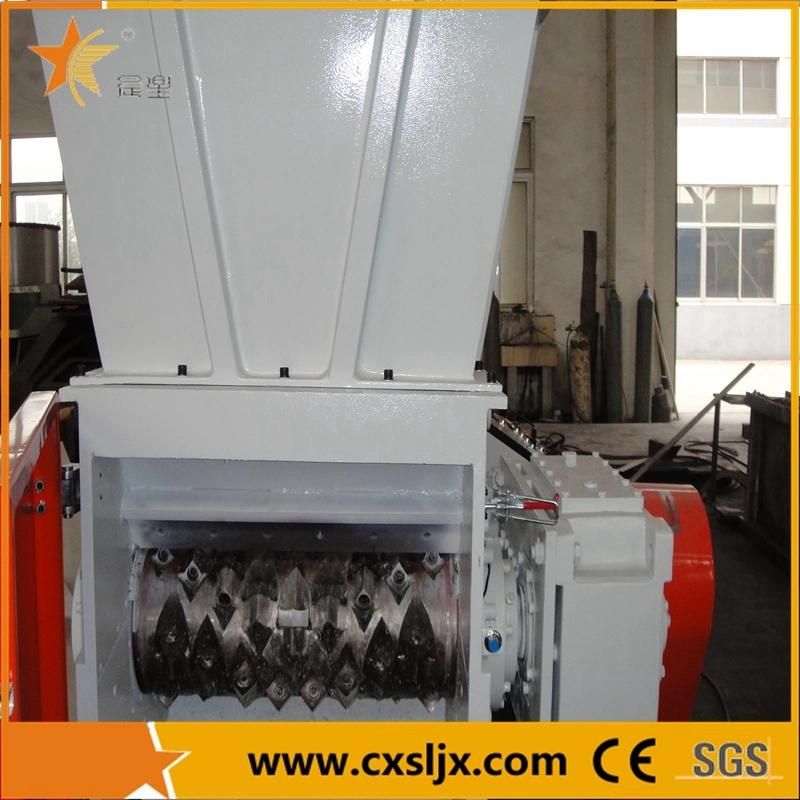

6. Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
7. Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree
8. Quiet operation at low speed
9. Screen perforation is adjustable according to customers' requirement
10. The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.
11. PLC control system with automatic overload protection and auto reverse switch.

Technical parameters:

Model	CX600S	CX600	CX800S	CX800	CX1000	CX1200	CX1500S	CX1500
Power (kw)	18.5	22	30	37	45	55	75	90
Hydraulic power (kw)	2.2	2.2	2.2	3.75	3.75	5.5	5.5	5.5
Shaft diameter (mm)	220	350	350	400	400	400	400	400
Feeding mouth	600*700	600*1100	800*1100	800*1200	1000*1300	1200*1400	1500*1500	1500*1600
Rotary blades	24 pcs	34 pcs	46 pcs	50 pcs	58 pcs	70 pcs	88 pcs	132 pcs
Fixed blades	1set	1set	2sets	2 sets	2 sets	3 sets	3 sets	3 sets
Journey (mm)	620mm	670mm	820mm	850mm	850 mm	1000mm	1000 mm	1100 mm
Speed	85rpm	75rpm	85rpm	85rpm	85 rpm	85 rpm	85 rpm	85 rpm
Mesh size (mm)	35-40mm	35-40mm	35-40mm	35-40mm	35-40mm	35-40mm	35-40mm	35-40mm
Capacity (kg/h)	300-500	500-700	700-800	800-1000	1000-1200	1200-1500	1500-1700	1700-2000
Weight: (kg)	1550kg	2000kg	2800kg	3600kg	4000kg	5000kg	6200	8000
Dimension (L*W*H mm)	1700*1130* 1780	1865*1420* 1800	2470*1420* 2000	2600*1670* 2200	2770*1870* 2200	2990*2370* 2200	2990*2780* 2200	3300*2780* 2720
