• Model NO.：CBI-47A,CBI-472A
• Transport Package：Stainless Steel
• Specification：CBI-47A,CBI-472A
• Trademark：STARLAND
• Origin：Guangzhou
• Production Capacity：6600PCS,Hour

 CBI-47A*/CBI-47X2A*CBI-71A*/CBI-71X2A*CBI-107A*/CBI-107X2A*Number of baking plates4771107Standard Cones/hour**420066009500Gas Consumption(kg)/hour5-69-1011-12Machine Dimension(mm)6700L*2400W*1800H9600L*2400W*1800H13900L*2400W*1800HMachine Weight(kg)450065009600Main Motor specification1.5hp;1.1kw2.0hp;1.5kw2.0hp;1.5kw

CBIII series and WBIII series
(Baking Plares Size:320mmX240mm;suitable for cones length over 125mm and waffle basket)


 CBIII-39A*/CBIII-39X2A*CBIII-55A*/CBIII-55X2A*CBIII-61A*/CBIII-61X2A*Number of baking plates395561Standard Cones/hour**350055006000Gas Consumption(kg)/hour5-69-1010-11Machine Dimension(mm)7000L*2400W*1800H9500L*2400W*1800H10500L*2400W*1800HMachine Weight(kg)470065008500Main Motor specification1.5hp;1.1kw2.0hp;1.5kw2.0hp;1.5kw

CBIV series and WBIV series
(Baking Plares Size:260mm*240mm;suitable for cones length between 100mm to 120mm and waffle basket)


 CBIV-45A*/CBIV-45X2A*CBIV-63A*/CBIV-63X2A*CBIV-101A*/CBIV-101X2A NEW*Number of baking plates4563101Standard Cones/hour**400060009500-10500Gas Consumption(kg)/hour5-69-1011-12Machine Dimension(mm)6800L*2400W*1800H9000L*2400W*1800H14000L*2300W*2000HMachine Weight(kg)4500650010000Main Motor specification1.5hp;1.1kw2.0hp;1.5kw2.0hp;1.5kw

*Ameans one cone per baking plate while x2A means two cones per baking plate
** Standard cone is 23° with cone length 110mm; standard cone /hour for x2A(two cones per baking plate) only.
Also, production output depends on the quality of cone mix, oven tempreature and thickness of wafer.

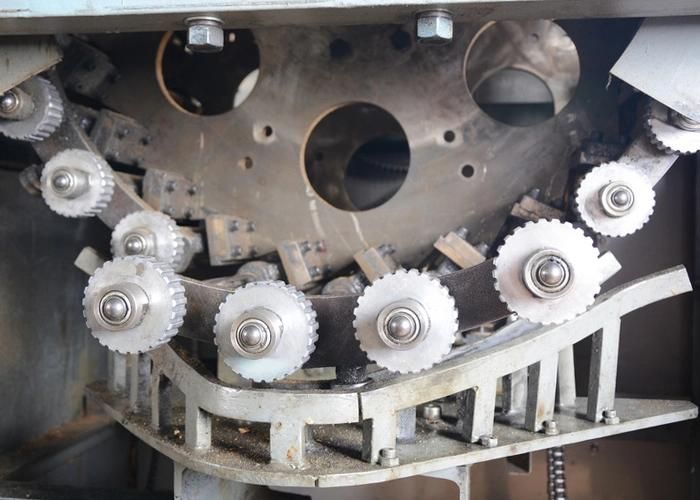

Cone Ejection System.

Cone ejection by mechanical movement using track and roller system(Utility Model Patent#:ZL200820043161.9,ZL200820189568.2).Easy to use and maintain. Flexible cone ejector device with springs allows cone diameter within 2mm difference to be ejected, no matter flat-top or natural rimmed cone.




One Motor drives all.

One single motor synchronize the oven, rolling station, batter pump through a series of high precision chain system. The desired products are produced with high accuracy and high product yield.

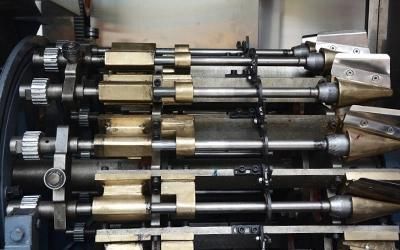

Star-Reel system (Invention Patent#:2015206924431).

Wafer takes shorter path from baking plates to rolling molds. Use of sugar andoil can be reduced.
