Basic Info.

Model NO. SJSZ Engagement System Full Intermeshing Screw Channel Structure Non Deep Screw Exhaust Exhaust Automation Automatic Computerized Non-Computerized Diameter 16-800mm Used for Water Pipe Capacity 50-1000kg/H Vacumm Pump 3 Kw Cooling Cooling Fan Apply for Water Pipe, Voltage 380V 50Hz Inverter ABB Transport Package Conatiner with Film or Wood Packing Specification CE Trademark sevens machinery Origin Zhangjiagang, Jiangzu Province. China HS Code 84772090 Production Capacity 100-1500kg/H

Product Description

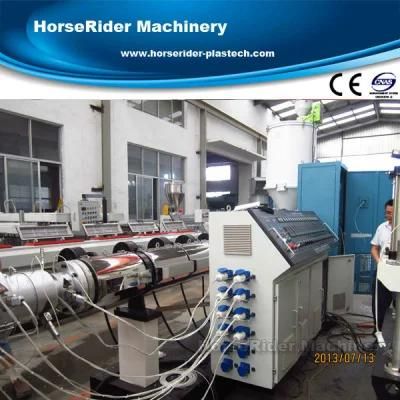

Automatic Single Screw PE PPR Pipe Production Line
Process flow for PP pipe extruding line

1. Raw material + additive mixing,
2. Vacuum feeding machine
3. Hopper dryer
4. Single screw extruder
5. Color code extruder
6. Mould
7. Calibrator vacuum forming machine
8. Cooling tank haul off machine
9. Cutting machine
10. Discharging bracket

Model number	PP-16/63	PP-20/110	PP-50/160	PP-75/250	PP-110/315	PP-200/450	PP-315/630	PP-400/800
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm	400-800mm
Max output	150kg/h	200kg/h	350kg/h	350kg/h	350kg/h	450kg/h	850kg/h	850kg/h
Production rate	1-15m/min	1.2-12m/min	0.6-8m/min	0.5-4m/min	0.4-3.7m/min	0.3-3m/min	0.2-2m/min	0.1-1 m/min
Extruder model	SJ-65/30	SJ-65/33	SJ-75/33	SJ-75/33	SJ-75/33	SJ-90/33	SJ-120/33	SJ-120/33
Installed power	85kw	110kw	125kw	180kw	260kw	325kw	480kw	600kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm	1300
Installation area	35x3.0x2.0m	38*3.1*2.2m	38*3.1*2.2m	40*3.2*2.4m	42*3.2*2.4m	52*3.3*2.6 m	60*3.5*2.8m	68*3.6*3.0m

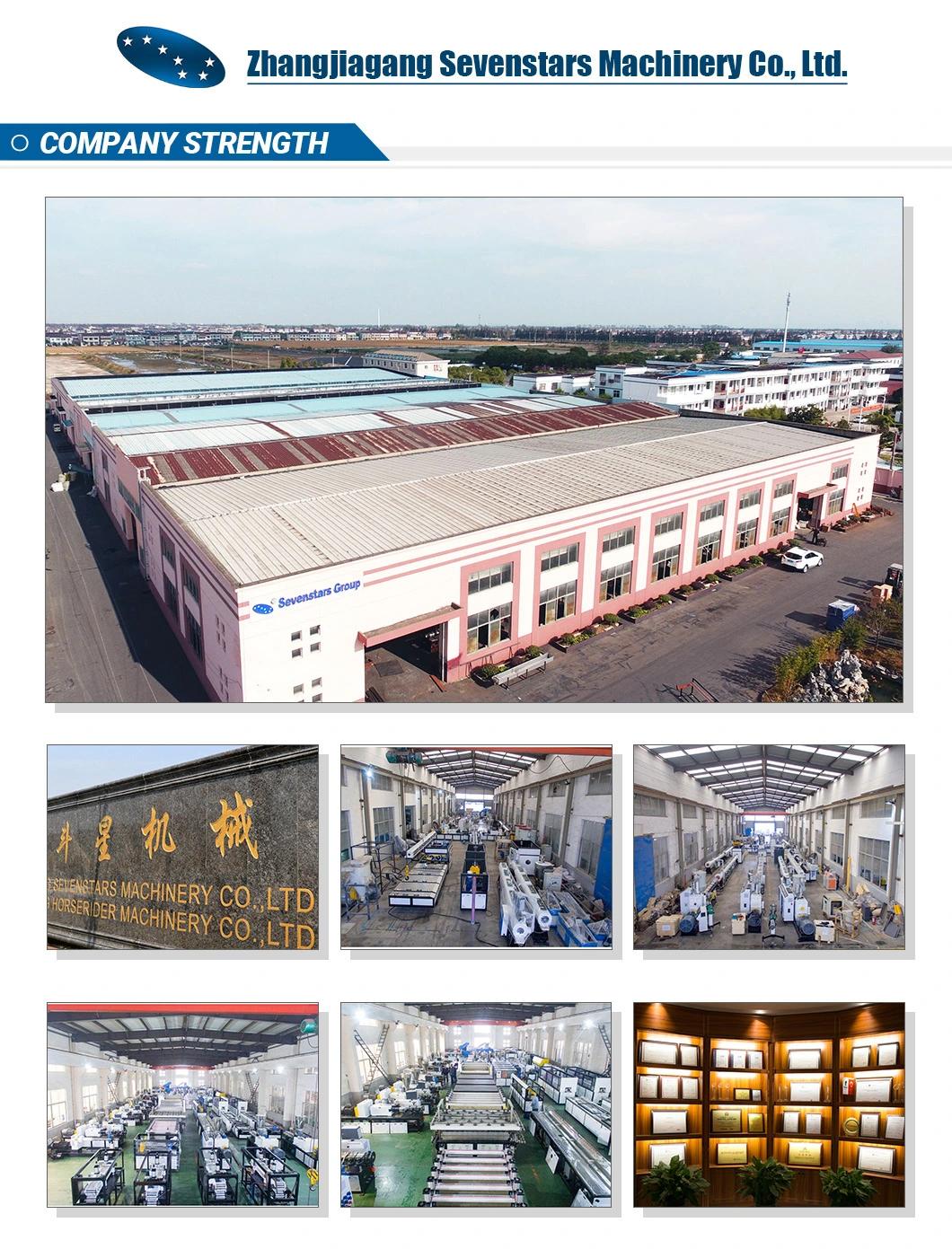

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.

We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.

As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.

Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.

Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
