Single/ Double/Three-Layers Co Extrusion Machine Price for Film Casting

Dongguan Koves Precision Tools Co., Ltd.

Base Info

Description

Specifictions of Lab Three-layers cast film machineApplicable materialsPP, PE, PVC, PS, PET, etc.Screw diametersABA 25,20,25mmScrew rotating speed0-95 rpm (adjustable)Screw L/D ratio33:1Temperature rangeRoom temperature - 300ºC Film thickness0.02-1mmFilm width50--250mm (customized)Die width400mmWorking voltage380V/50Hz/3 phases or CustomerizedMotor power2.2 KWTotal Power7 KWControl modeSIEMENS PLC Control

Single/ Double/Three-Layers Co Extrusion Machine Price for Film Casting




Main features

1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;
2) Using brand melt pressure and temperature sensor to ensure high accurage data
3) Cantilever roll structure making it easy to lead the film and be operated;

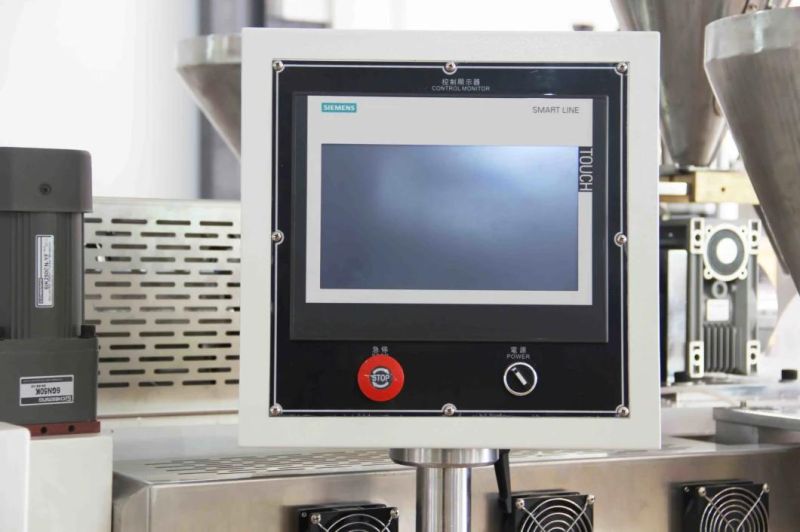

4) dopting PLC control system and friendly operation interface to easily operate;
5) On-line testing and displaying melt pressure, temperature and other key data;
6) Emergency stops and devices to protect safety of the operator;

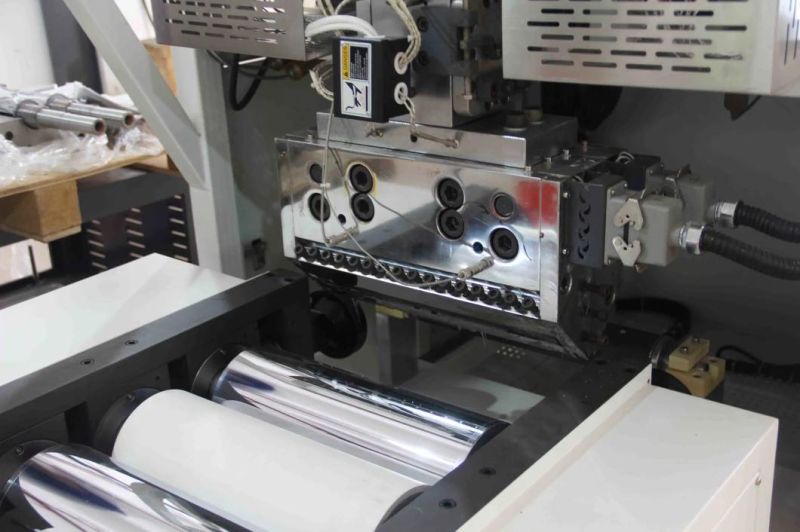

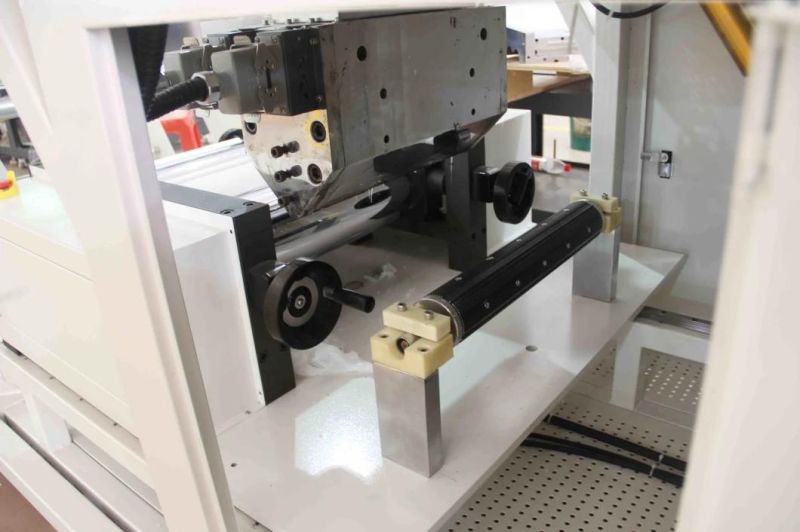

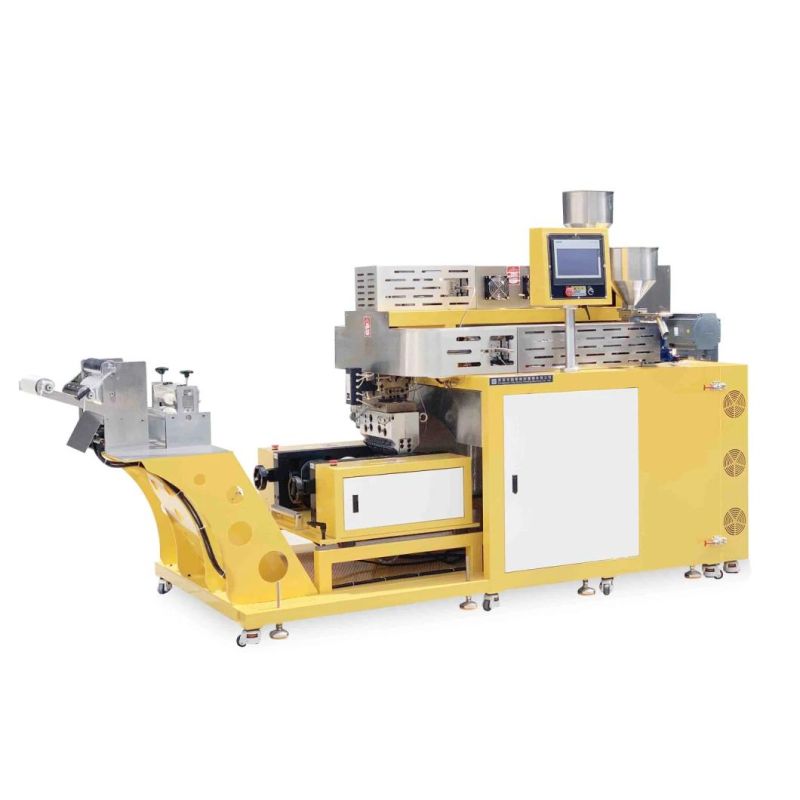

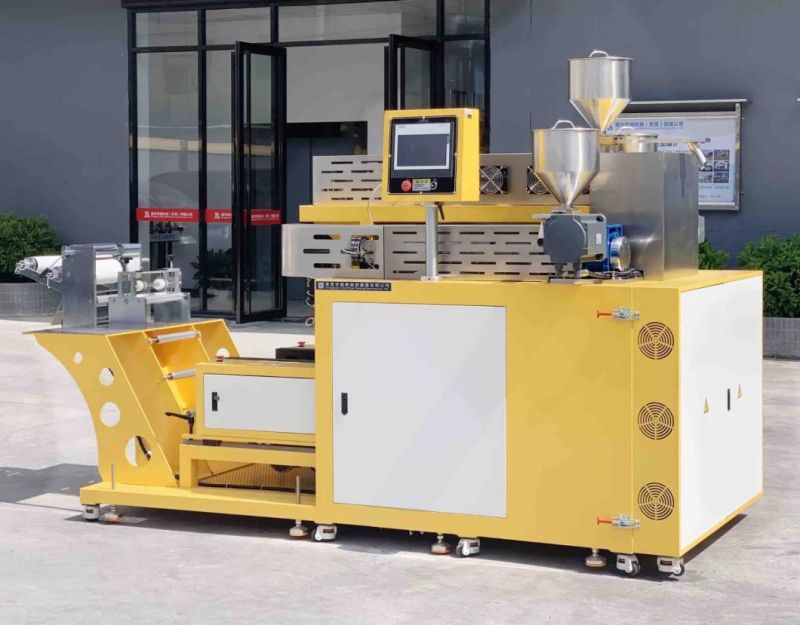

Details images

 Single/ Double/Three-Layers Co Extrusion Machine Price for Film CastingSingle/ Double/Three-Layers Co Extrusion Machine Price for Film Casting

 Single/ Double/Three-Layers Co Extrusion Machine Price for Film CastingSingle/ Double/Three-Layers Co Extrusion Machine Price for Film Casting
