• Model NO.：TPX
• Application：Candy, Chocolate, Popcorn, Chips, Donut, Candy Bar
• Customized：Customized
• Voltage：Customize
• Dimenssion：Various
• Function：Bar Production Line
• Cooling Tunnel Temp：5-10
• Turnning：Selectifve
• Enrober：Selectifve
• Raw Material：Stainless Steel
• Certificate：CE; ISO9001
• Line Length：According to Customer′s Workshop
• Transport Package：Wooden Box
• Specification：customized
• Trademark：Gusu
• Origin：Suzhou
• HS Code：8438200000
• Production Capacity：500 Unit,Units Per Month for Bar Making Machine

Basic Info.

Model NO. TPX Application Candy, Chocolate, Popcorn, Chips, Donut, Candy Bar Customized Customized Voltage Customize Dimenssion Various Function Bar Production Line Cooling Tunnel Temp 5-10 Turnning Selectifve Enrober Selectifve Raw Material Stainless Steel Certificate CE; ISO9001 Line Length According to Customer′s Workshop Transport Package Wooden Box Specification customized Trademark Gusu Origin Suzhou HS Code 8438200000 Production Capacity 500 Unit/Units Per Month for Bar Making Machine

Product Description

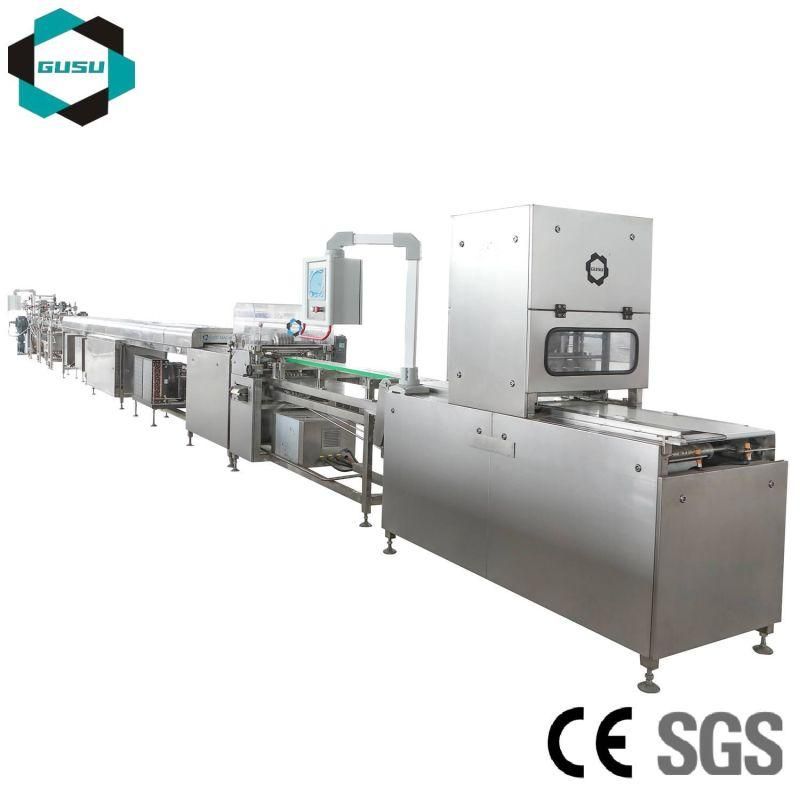

Candy Bar Cereal Bar Energy Bar Production Line
Product Description
TPX series of candy bar line is design to mix boiled syrup, powder, grain, etc, through pre-cooling, to form the uniform thickness and width, then cut into blocks or bars by longitudinal and latitudinal cutter, then transport to Enrober to coat the product surface with a layer of chocolate; Create a unique bars.

Features:
1) Application: energy bar, protein bar, fruit bar, nougat, Snickers, Sachima, etc.
2) Model: Gusu candy bar is available in five widths: 200,300,400,600 and 800 mm. All functions of the forming line can be controlled by one or two PLC control cabinets.
3)All the equipment is manufactured to be extremely robust and reliable.
4)The machinery is almost full stainless steel construction for maximum hygiene and simple cleaning down.

Techinical Parameters

Model	Single Group Roller Width(mm)	Compound Group Roller Width(mm)	Flatten Roller Width(mm)	Roller Temp.(ºC)
TPX200	150-200	150-200	150-200	-20~-70
TPX300	280-330	280-330	280-330	-20~-70
TPX400	380-430	380-430	380-430	-20~-70
TPX600	580-630	580-630	580-630	-20~-70
TPX800	780-830	780-830	780-830	-20~-70

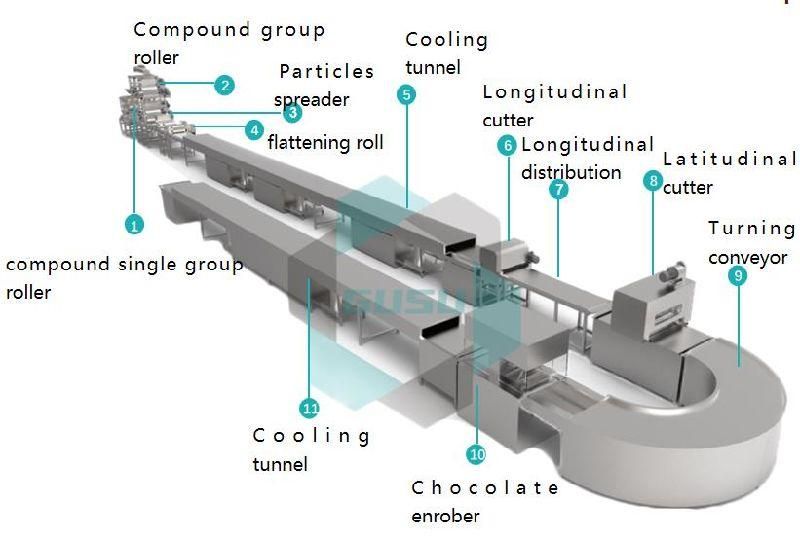

Components:

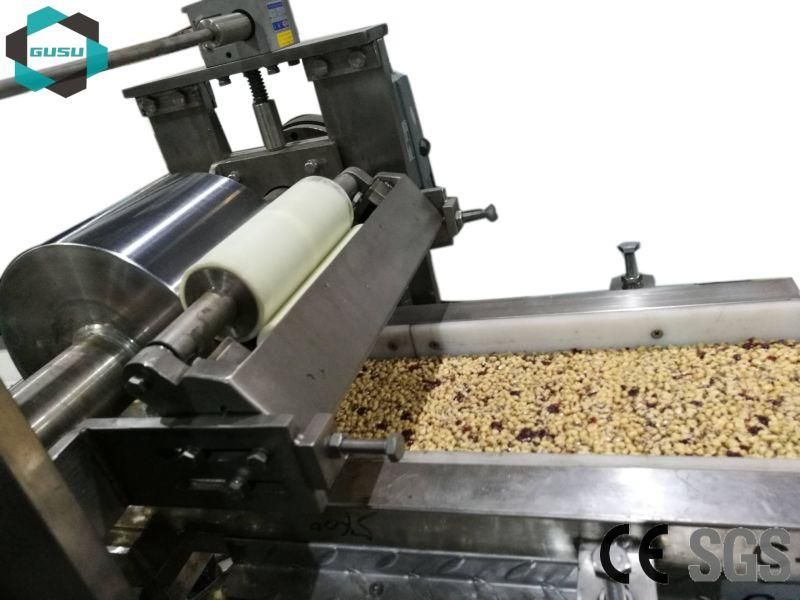

1. Compound Single Group Roller
2. Compound Group Roller
3. Particle Spreader
4. Former Roller
5. Cooling Tunnel
6. Longitudinal Cutter
7. Longitudinal Distribution
8. Latitudinal Cutter
9. Chocolate enrober(Selective)
