• Model NO.：6YL-100
• Condition：New
• Customized：Customized
• Shaft Speed3：30-40rpm
• Hot Press and Cold Press：Both Available
• Delivery Time：5-7days
• capacity：200kg,h
• power：7.5kw or 11kw
• weight：550kg
• Transport Package：Wooden Box
• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 6YL-100 Condition New Customized Customized Shaft Speed3 30-40rpm Hot Press and Cold Press Both Available Delivery Time 5-7days capacity 200kg/h power 7.5kw or 11kw weight 550kg Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 84792000 Production Capacity 5000PCS/Year

Product Description

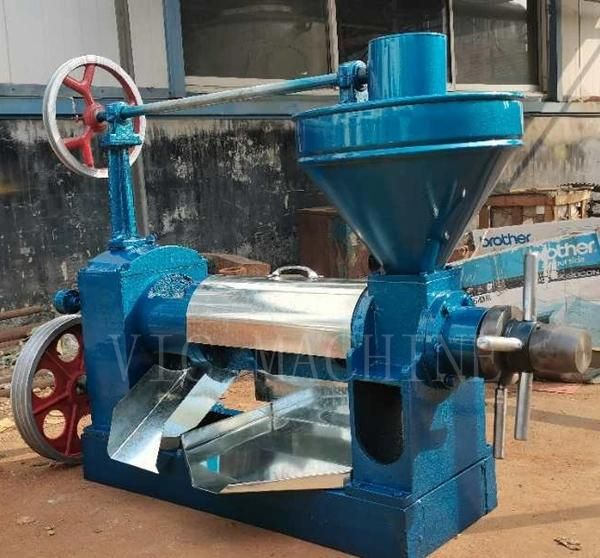

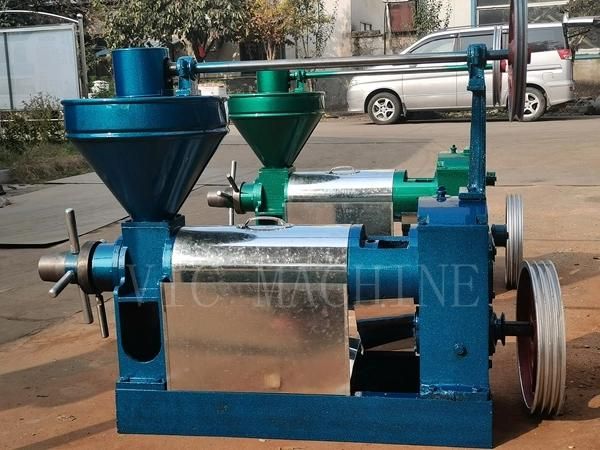

                                                                     6YL-100 Oil Press Machine

Application:
This oil press is a rather advanced machinery in oil processing machinery, it has the function of easy operation, simple structure, low voice and high output, can be applied to press oil materials like peanut, soybean, rapeseeds, cottonseeds, sesame,
Sunflower seeds, olive, coconut etc.

Advantage
1.Simple and easy operation,one key to start without other operating
2.High oil yield to  the highest 97%
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance

Main data:
Model: 6YL-100 oil press
Capacity: 200kg/h for oil seeds
Power: 7.5kw (380V/50Hz/3p) or 15HP diesel engine
Residue oil in cake: Less than 8%
Size: 1320X540X1020mm
Weight: 600KG

More model 6YL-system oil press machine:

Model	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
6YL-68	50kg /h	5.5kw	930x490x820	150kg
6YL-68C	50kg /h	5.5kw	930x575x1055	150kg
6YL-68J	50kg /h	5.5kw	930x575x1055	150kg
6YL-80	100kg /h	5.5kw	1307x550x1102	300kg
6YL-95	200kg /h	7.5-11kw	2155x580x1250	550kg
6YL-100	200kg /h	7.5-11kw	2050x550x1180	550kg
6YL-120	300kg /h	11-15kw	2150x610x1300	700kg
6YL-130	450kg /h	15-18.5kw	2180x610x1480	800kg
6YL-160	550kg /h	18.5-22kw	2180x610x1480	900kg
6YL-165	700kg /h	22-30kw	2280x620x1680	1300kg

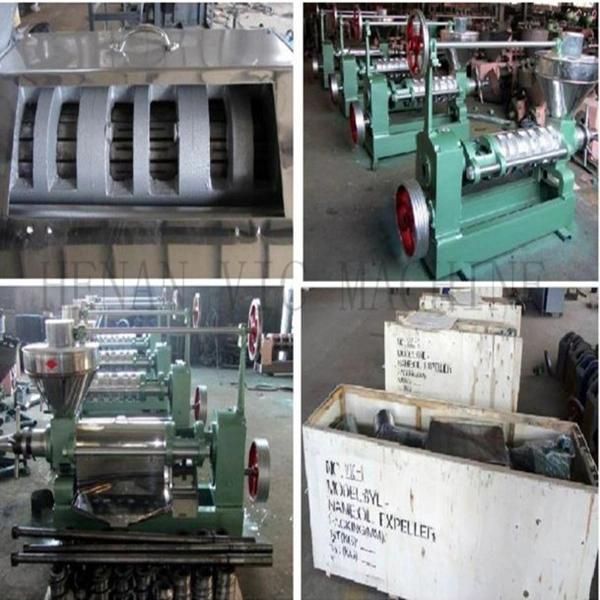

More picture

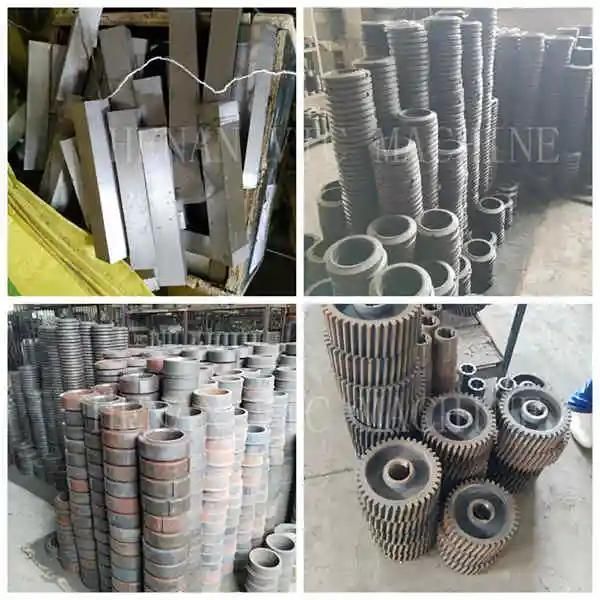

parts

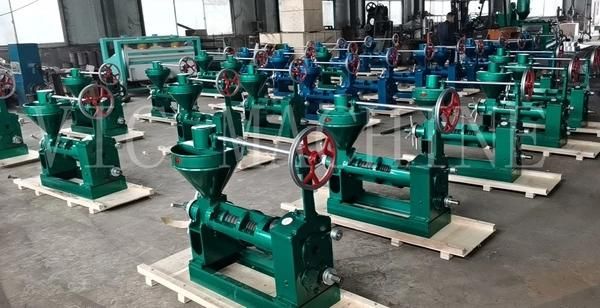

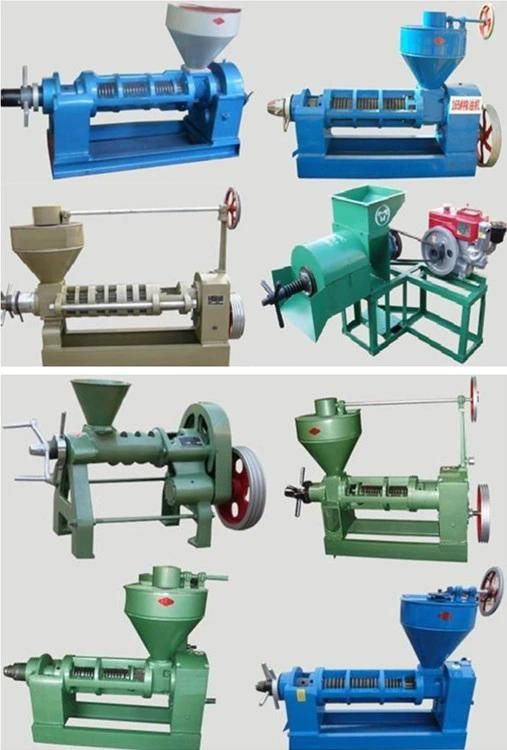

More pictures of 6YL-system oil press machine:

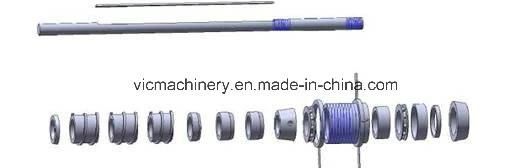

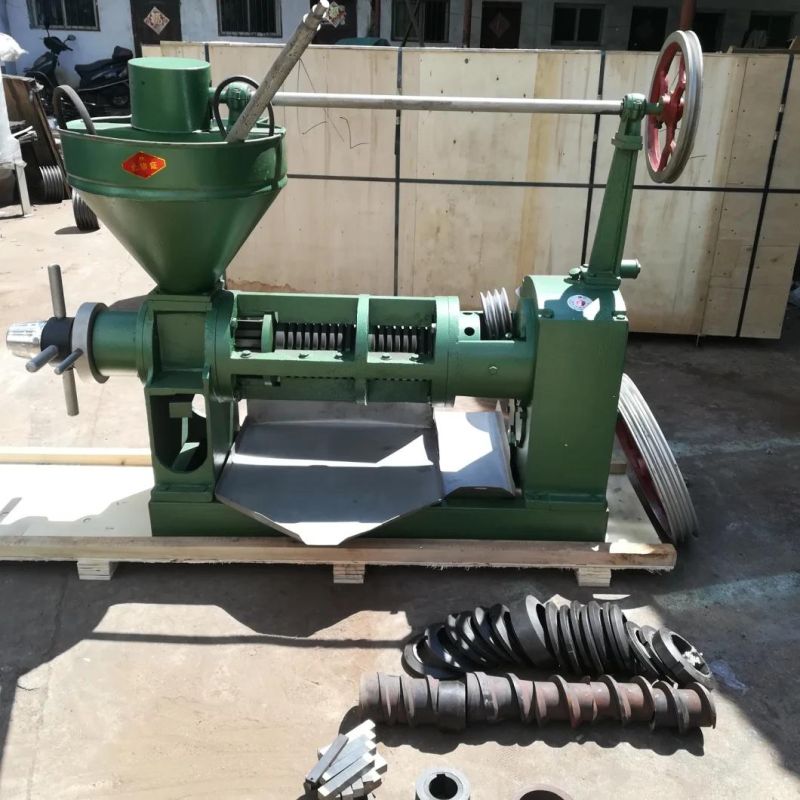

6YL-100 pressing screw:

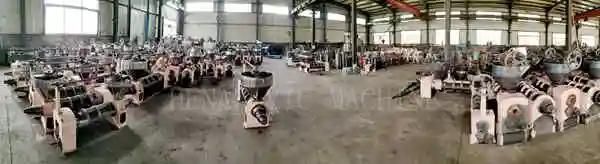

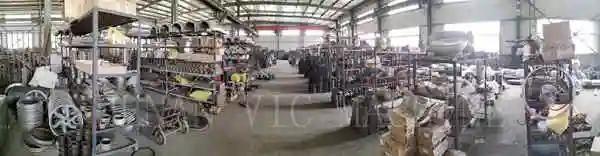

Our factory



After sale service:
