• Model NO.：HJ550
• Dredger Loa：38.0m
• Hull Size：27.0*8.5*2.5m
• Structure：Box-Structure
• Main Engine Brand&Power：Cummins 1193kw,Jichai 1200kw
• Discharge Pipe Inner Dia：550mm
• Max.Dredging Depth：16m
• Water Flow：4500m3,H
• Solid Sand Capacity：900m3,H
• Discharge Distance：2000m
• Draught：1.7m
• Displacement：302t
• Total Fuel Oil Consumption：229L,H
• Transport Package：Sea Transportation
• Specification：22inch 4500m3,h
• Trademark：HAIJIE
• Origin：Qingzhou City Shandong Prov. China
• HS Code：8905100000
• Production Capacity：900m3,H

ModelsMax.Dredging DepthWater FlowSolid Sand CapacityDischarge DistanceMain Engine Brand&PowerHJ2008m800m3/h160m3/h800mCummins224kw/Jichai 220kwHJ2509m1000m3/h200m3/h1000mCummins298kw/Jichai 330kwHJ30010m1500m3/h300m3/h1200mCummins447kw/Jichai 450kwHJ35011m2000m3/h400m3/h1500mCummins477kw/Jichai 540kwHJ40013m2500m3/h500m3/h1500mCummins582kw/Jichai 540kwHJ45014m3000m3/h600m3/h1500mCummins895kw/Jichai 600kwHJ50015m4000m3/h800m3/h2000mCummins895kw/Jichai 900kwHJ55016m4500m3/h900m3/h2000mCummins1193kw/Jichai 1200kwHJ60016m5500m3/h1100m3/h2000mCummins1641kw/Jichai 2200kwHJ65016m6000m3/h1200m3/h2000mJichai 2200kwHJ70017m7000m3/h1400m3/h2200mJichai 2200kwHJ80017m7500m3/h1500m3/h2500mJichai 3000kw *The above data is for reference only.Detailed parameters can be customized according to customer needs.

 Main Advantages▪Reliable and efficient.▪The key component like engine pump and hydraulic system are adopted the international brand.▪Tested in pool before delivery.▪Quality testing for each dredger before delivery to ensure all function working properly.▪Dismantled and easy transport.
▪In order to shorten the delivery time, we always keep one or two spare engine.Anyone who needs it urgently we can ship the goods after receiving the money.

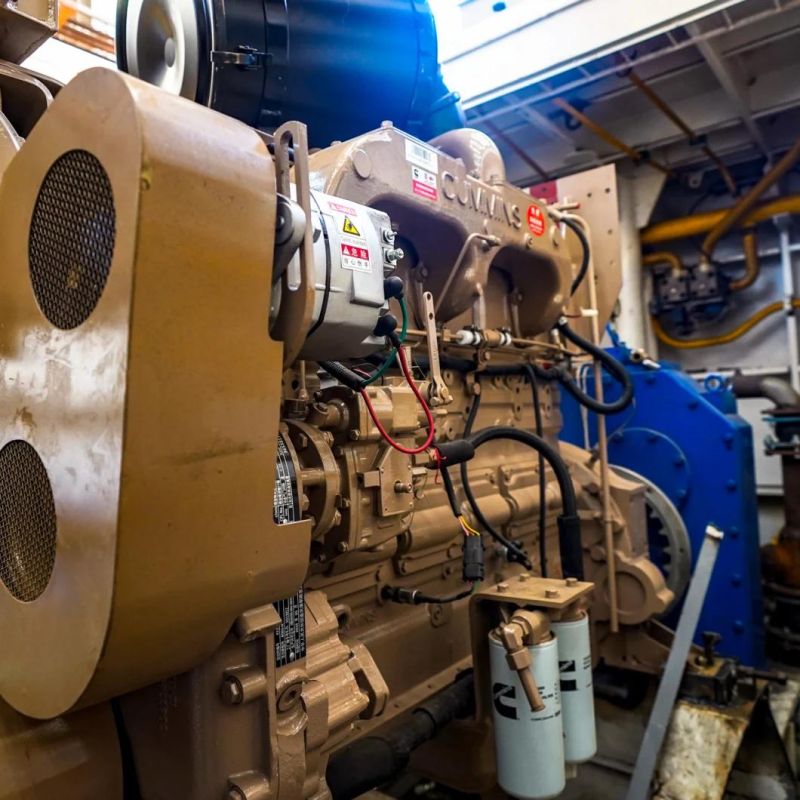

                Cummins,Weichai and Jichai Engine

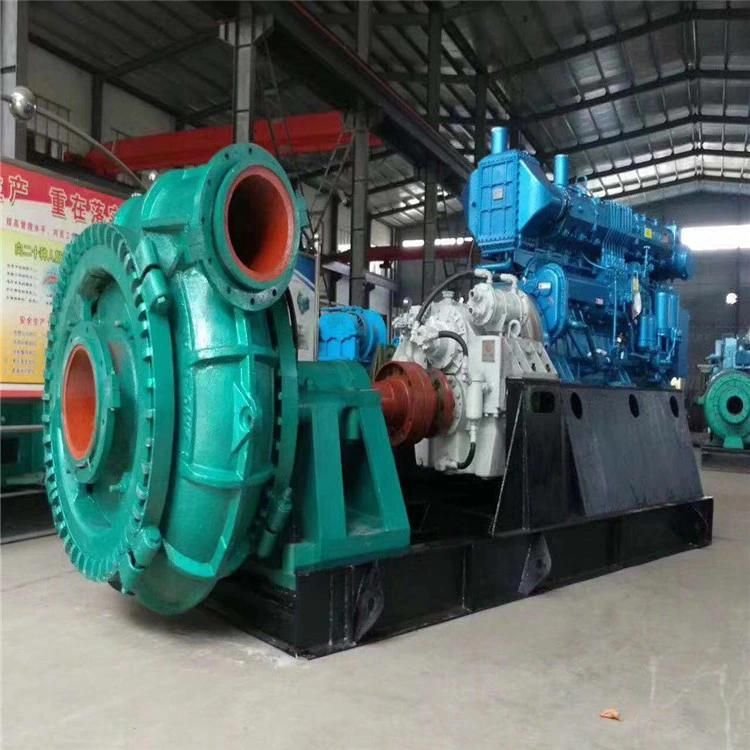

           Well-known brand engine for you to choose                                                      The best pump in China-Shijiazhuang pump

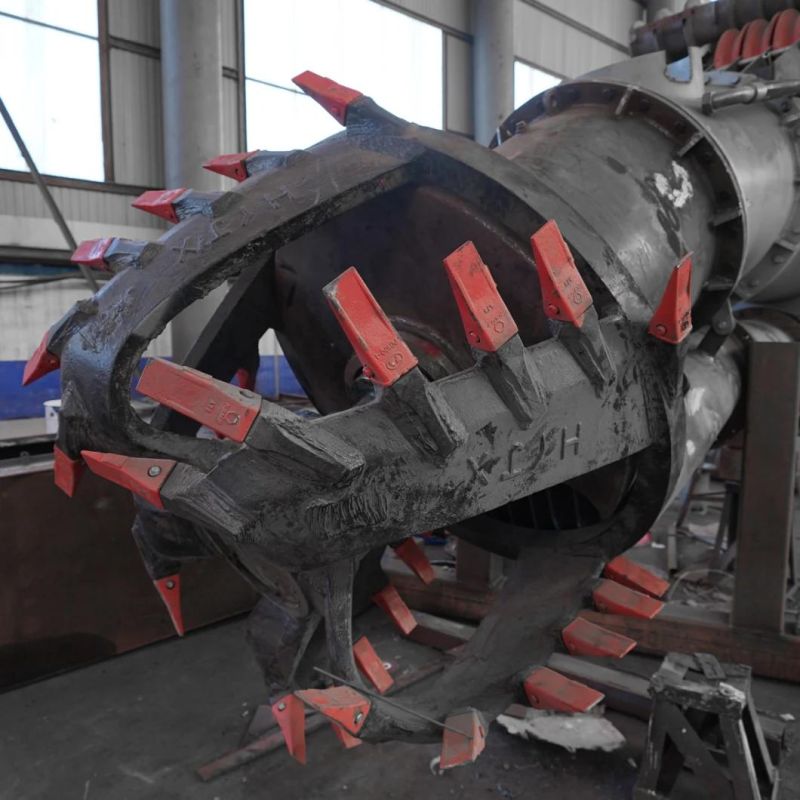

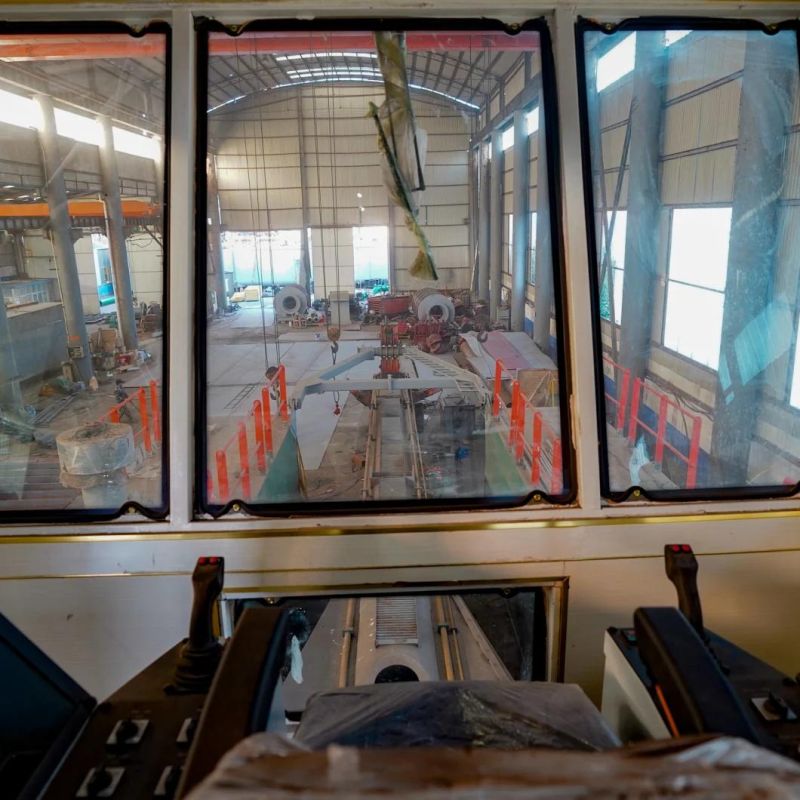

                      Intelligent control operation room                                                                                  Cutter head

                                                                       Our Service▪Customized products according to customer requirements

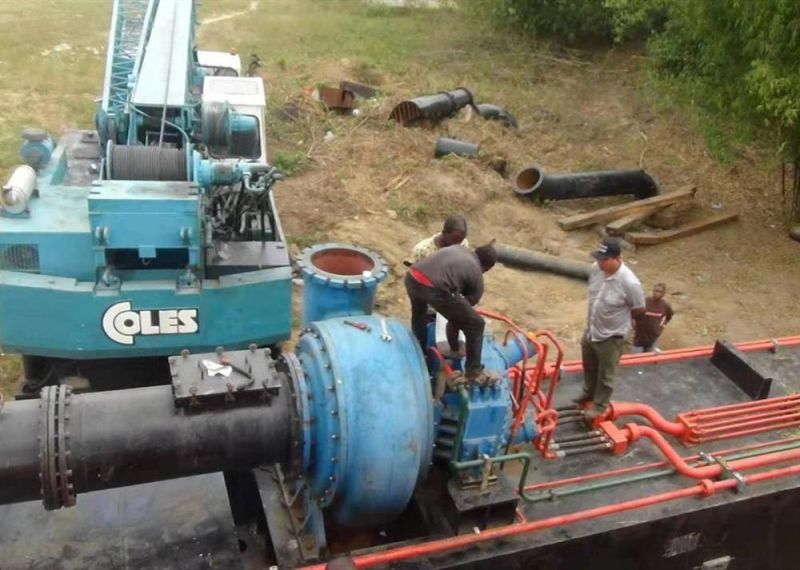

▪Experienced engineers to guide installing and training local workers.Around the clock technical support standby.
▪Free spare parts in the first year,low cost for services.
▪Any questions about the product can be answered by phone, mail or 24-hour online support.

     Detailed images

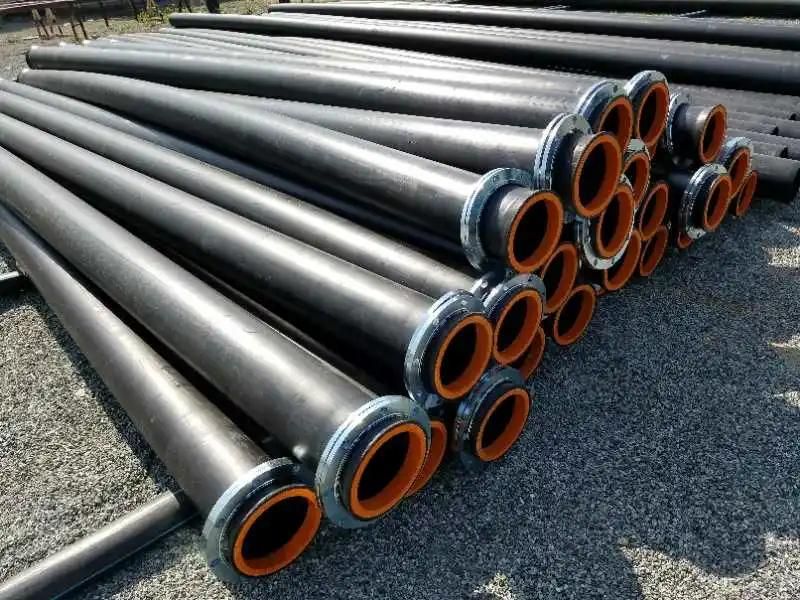

                                        Flange HDPE pipe                                                                                                         Float
Company Profile

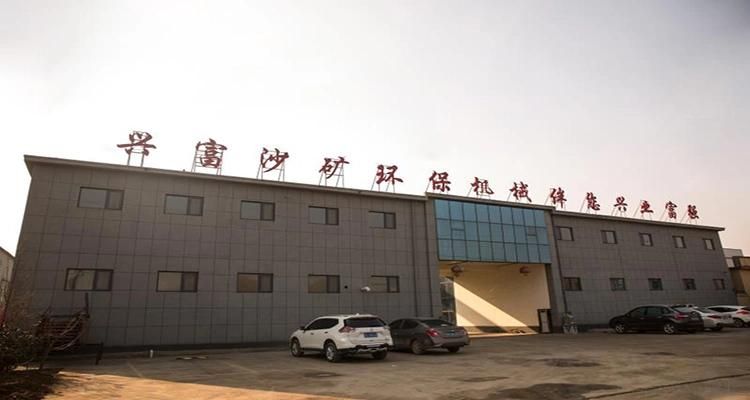

Our factory is located beautiful city- QingZhou,Shandong Province in China.We have many years manufacture experence,we can provide all kinds of advanced cutter suction dredgers,gold dredgers and sand machines production line etc.We can according to the customers request to customize,we have a complete R&D and after service team.We look forward to cooperating with you.



Contact Information
If you are interested in our products or have any questions about our products, we are very honored to serve you.
