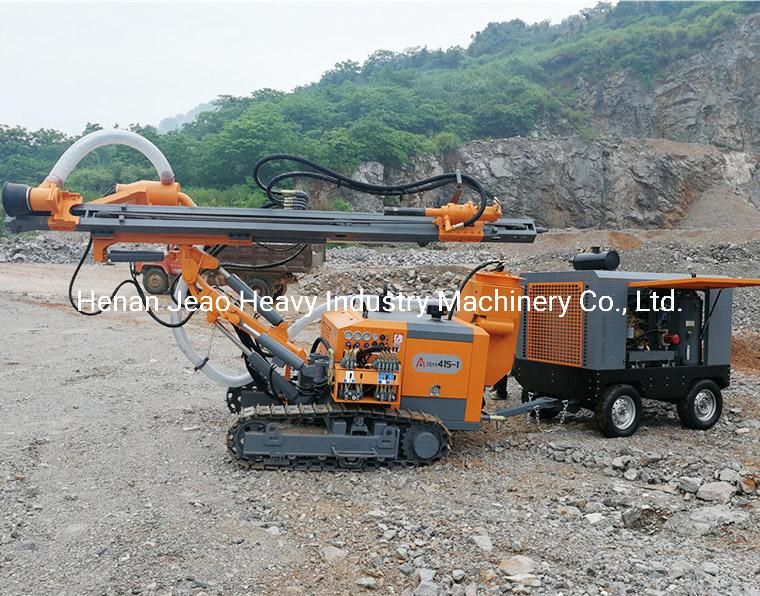

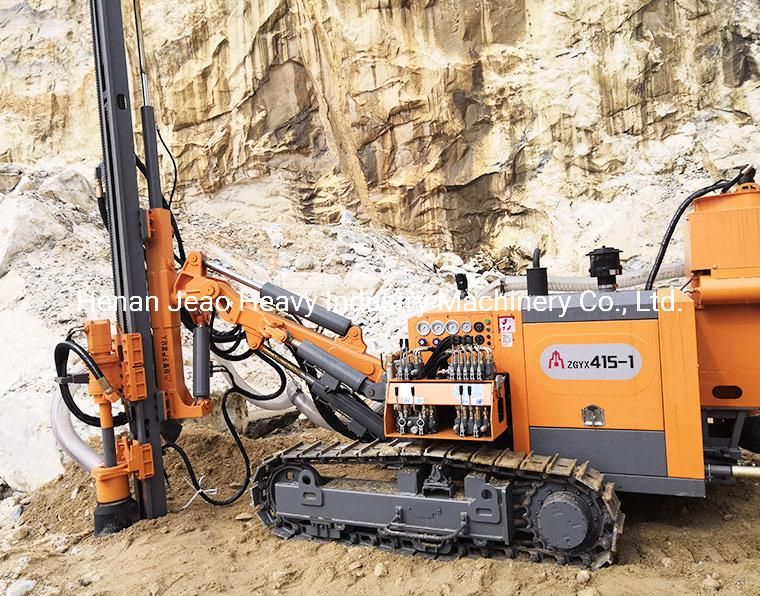

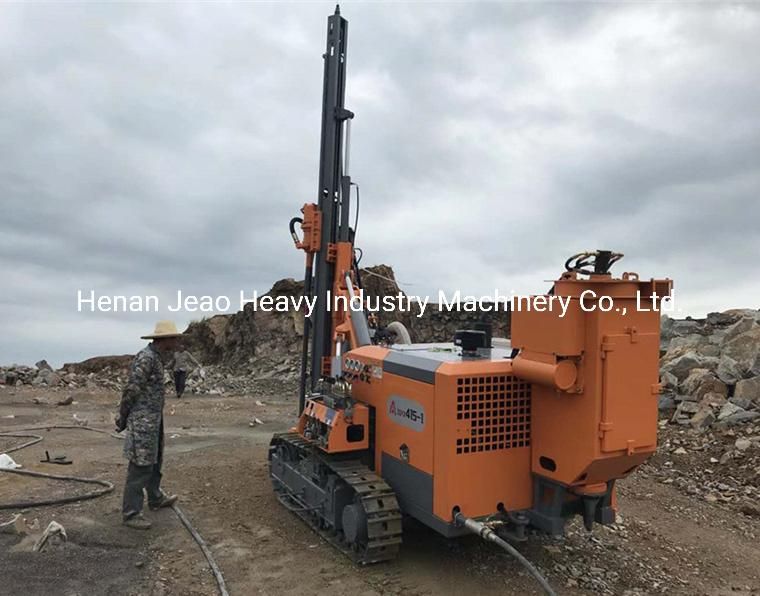

Zgyx415-1 Pneumatic Crawler DTH Drilling Rig with Dust Collector
Zhejiang Zhongnuo Intelligent Machinery Co., Ltd.Base Info
Description
Basic Info.
Model NO. ZGYX-415-1 Rock Hardness F=6~20 Working Pressure 1.0~1.7 MPa Air Consumption 9-16m3 Rotation Torque 1850n.M Rotate Speed 110rpm Feed Force 15kn Pull Force 25kn Walking Speed 2.5km/H Gradient 25° Weight 4500kg Transportation Size 4900*2000*2200mm Transport Package Nude Packing Trademark ZHIGAO Origin China HS Code 8432412200 Production Capacity 300sets/MonthProduct Description
Product Description
Specification for Pneumatic Crawler DTH Drilling Rig with Dust Collector
| Model No | ZGYX415-1 |
| Rock hardness | F=6-20 |
| Hole diameter | 90-115mm |
| Economic drill depth | 25M |
| Boom Angle | 75° |
| Rotating speed | 0-110r/min |
| Rotary torque | 1850N.m |
| Feed force | 15kN |
| Pull up force | 25kN |
| Propulsion Type | Cylinder-Chain |
| Push Length | 3000mm |
| Walking speed | 0-2.5km/h |
| Grade ability | 25° |
| Net weight | 4500KGS |
| Dimension | 4900*2000*2200mm |
| Diesel Engine | YCD4R22T-8 (59KW 2400r/min) |
| Drill rod specification(mm) | 60×3000mm |
| Working pressure | 1.0-1.7MPa |
| Air consumption | 9-16M3/min |
| Remark | Pneumatic-Hydraulic |
