Basic Info.

Model NO. GD450-LS Bit Type Cone Bit Drilling Way Rotary Type Crawler Rated Power 154kw Dimension 8450*2320*2650(mm) Max Thrust-Pull Force 480kn Transport Package LCL, 20gp Specification 14500kg Trademark CHIAN TOP BRAND Origin China HS Code 8427209000 Production Capacity 100

Product Description

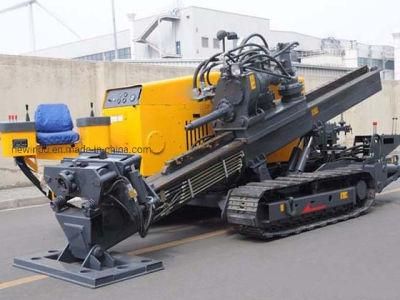

Big Sale GD450-LS 45Ton Horizontal Directional Drilling

Products Description
1. Top Engine: high efficiency, large power, low fuel consumption, low noise.
2. Driving head reserves reinforced power (push & pull force).
3. Four bar linkage luffing structure -patented technology.
4. Wire-control walking system ensure safety.
5. Reversible Manipulator reduces the workers' labor intensity.
6.φ89/φ102×4500mm drill rod.
7.Advanced hydraulic system and first-class hydraulic components.
8.Reasonable electric design with low failure rate.
9.The push & pull with the rack and pinion system.
10.Steel track with rubber plate is adopted for crawler


Product Paramenters

Rig Weight	14500 kg	Dimension(L*W*H)	8450*2320*2650(mm)
Max. Push&Pull Force	480/960 kN	Max. Torque	27000 N·m
Max. Push&Pull Speed	55 m/min	Max. Rotation Speed	116 r/min
Engine Power	194kW	Max. Mud Pump Flow	600 L/min
Walking Speed	3-5(km/h)	Max. Mud Pump Pressure	10 Mpa
Entry Drill Angle	12°-22°	Max. Climbing Gradient	18°
Max. Aperture Diameter	ø1500mm (Soil Depended)	Max. Crossing length	800m (Soil Depended)
