Basic Info.

Model NO. SJ-C 55/65 Machine Weight 1.5t Certification CE, ISO9001:2008 Screw Size 50/65mm Transport Package Standerd Wooden Case/Stretch Film Package Specification CE/ISO9001 Trademark Changyin Origin China HS Code 84773000 Production Capacity 100sets/Year

Product Description

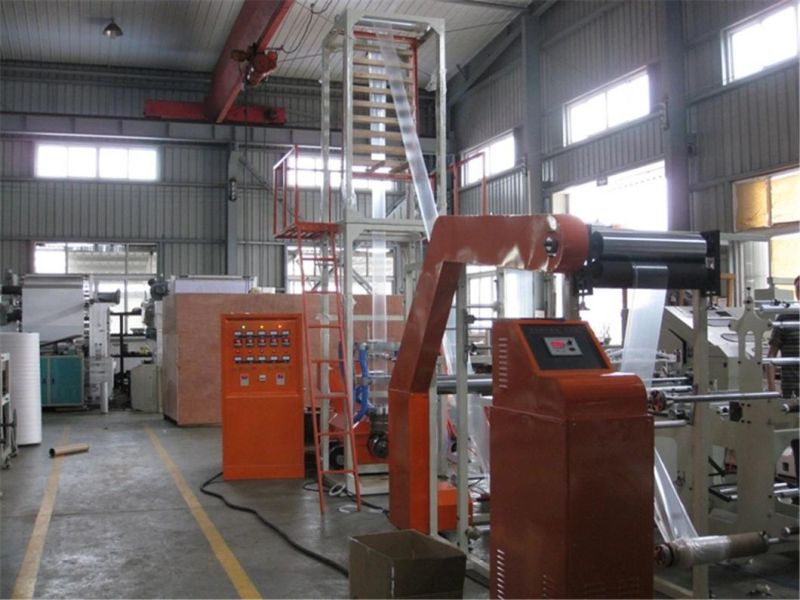

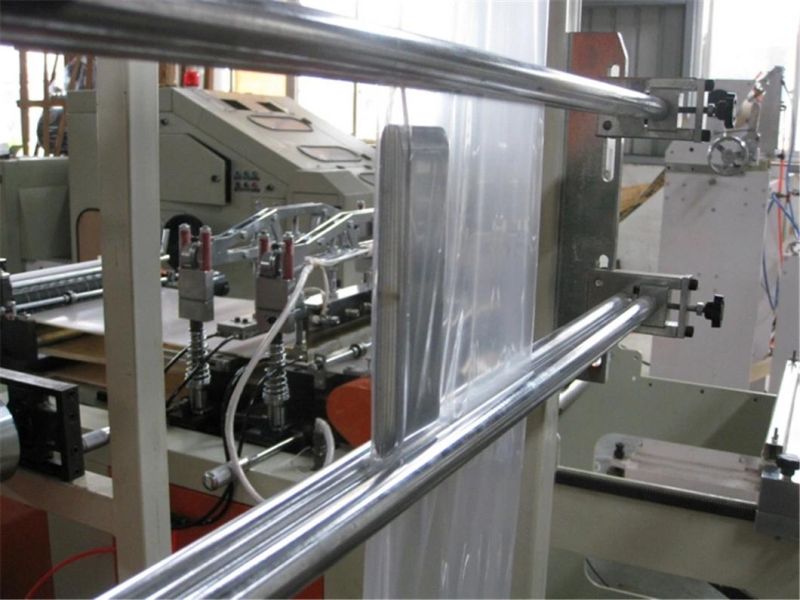

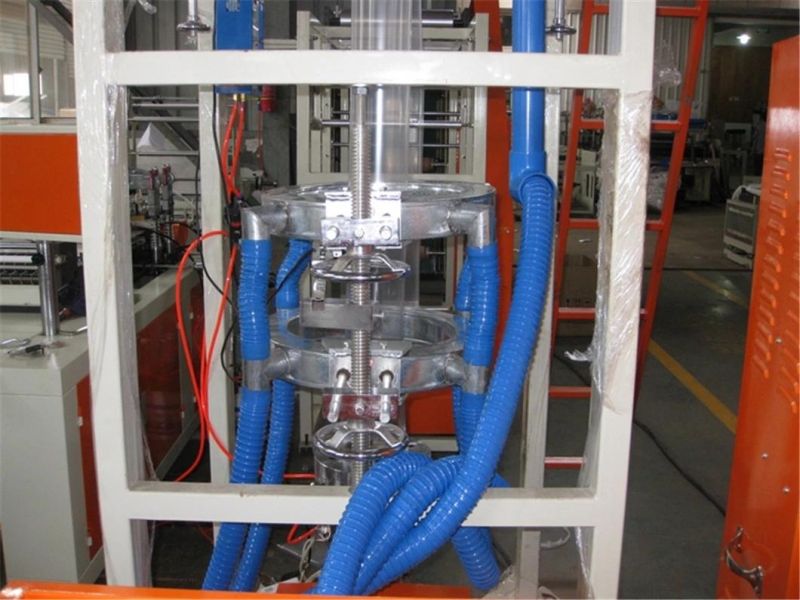

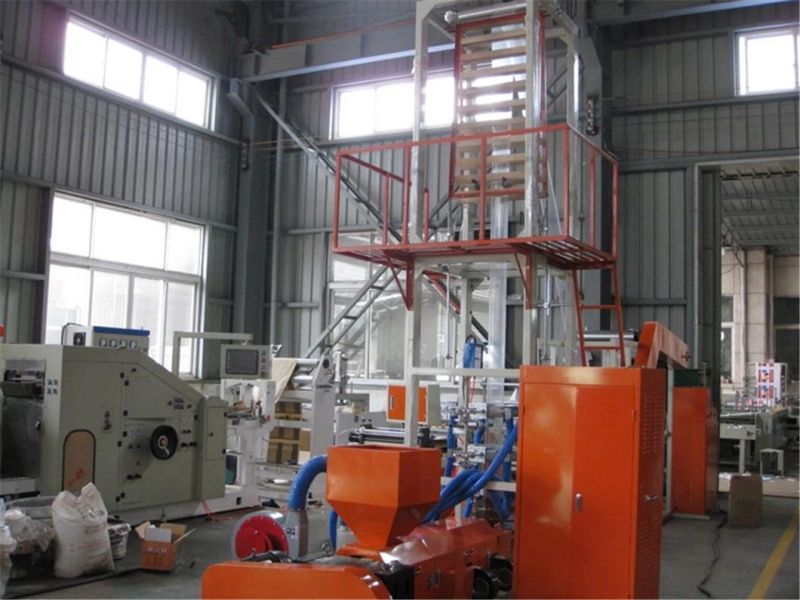

SJ-C 55/65 Zipper bag blowing machine
Base on the film blowing machine ,this machine is designed creatively.With an embossing button automatic sealing zip at the very opening ,a bag can be produced automatically freely .The main processor adpots frequency conversion speed governing ,photoeclectric control,air filling automatically ,with a hihgh content  of science and technology and power applocability .
We use low density polyvingl chloride LDPE as our raw material and our products can be used to package food ,fruit ,medicine ,documents,industrial products,clothing ,fabric and industrial products for
civil use .


Model	SJ-Z55	SJ-Z65
Raw material	LDPE(Density0.921)	LDPE(Density0.921)
Width of bag	50-450mm	200-550mm
Thickness of bag	0.03-0.10mm	0.03-0.15mm
Diameter of screw	55mm	65mm
L/D	28:1	28:1
Power of Auxiliary	0.75kw	1.1kw
Heater	12kw	15kw
Cooling	1.5kw	2.2kw
Power	25kw	28kw
Voltage	380v,50hz,3p	380v,50hz,3p
Output	5-30kg/hr	6-35kg/hr
Mould Head	70,80,100,130,160,180,200,230,270,300,350,450mm	70,80,100,130,160,180,200,230,270,300,350,450mm
Diemension (LX WXH)	6000*1600*4500mm	6000*1600*4500
Total Weight	1.5T	1.5T
Power of main motor	5.5KW	7.5KW
