Basic Info.

Model NO. FM-1700 Machine Weight 8T Certification CE, ISO9001:2008 Size(M) 6.0*3.66*6.5 Voltage 380V 50Hz 3phase Transport Package Plastic Film for Container Shipment Specification single layer Trademark Xiongqiu Plastic Machinery Co., Ltd. Origin Foshan, Guangdong Province HS Code 8477300000

Product Description

It is used to blow various plastic film of LDPE, HDPE and LLDPE, etc.. Widely used in packing food stuff, garment and textile, daily product, industrial products and agricultural field.


model	suitable material	film width	thickness	max output	screw diameter	L/D ratio	temp. controller	barrel cooling	driving motor
FM-1700	LDPE/HDPE/LLDPE	1600mm	0.02-0.20mm	105kgs/hr	Φ75mm	30:1	5 zone	250w*3	30kw

die diameter	air ring diameter	cooling fan	take up width	effective width	take up motor	winder width	effective width	winder moto
Φ160mm	Φ300mm	3.7kw	1700mm	1600mm	2.2kw	1700mm	1600mm	50kg

die structure	spiral mandrel die chrome plated surface 40Cr
optional equipment	auto-loader device, film surface treater, air compressor, fast change net, double center winder/cage roll flat winder, rotary die head, double wind air ring

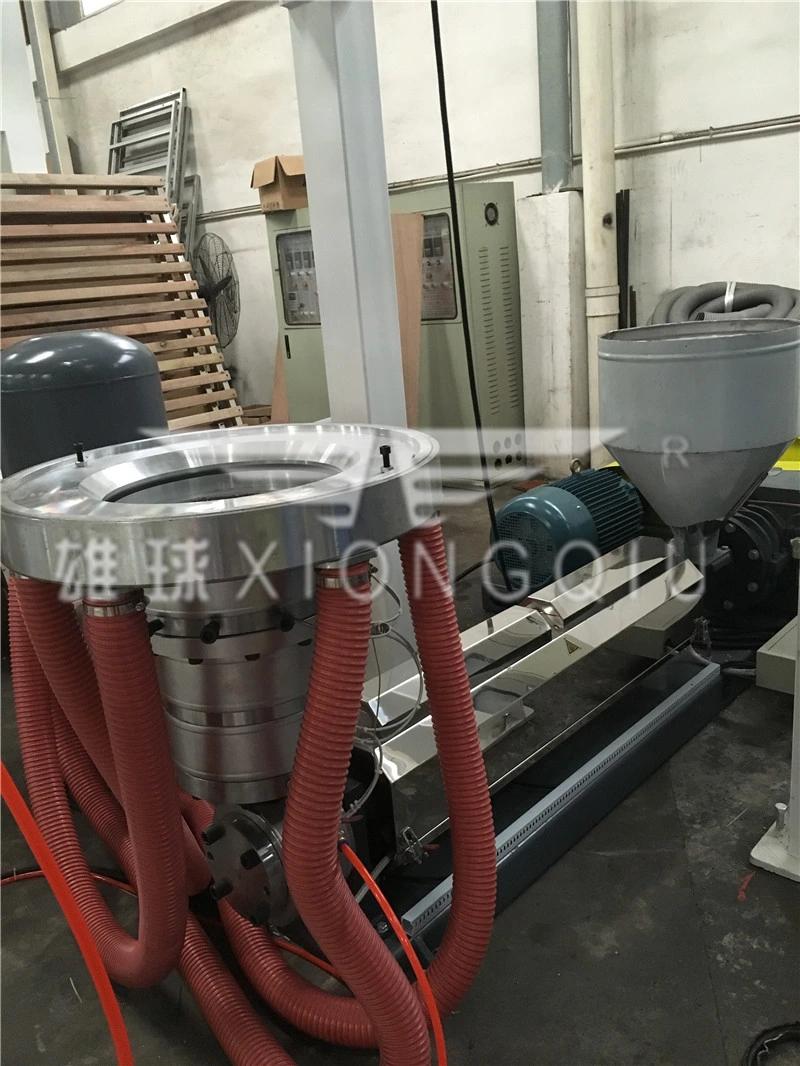

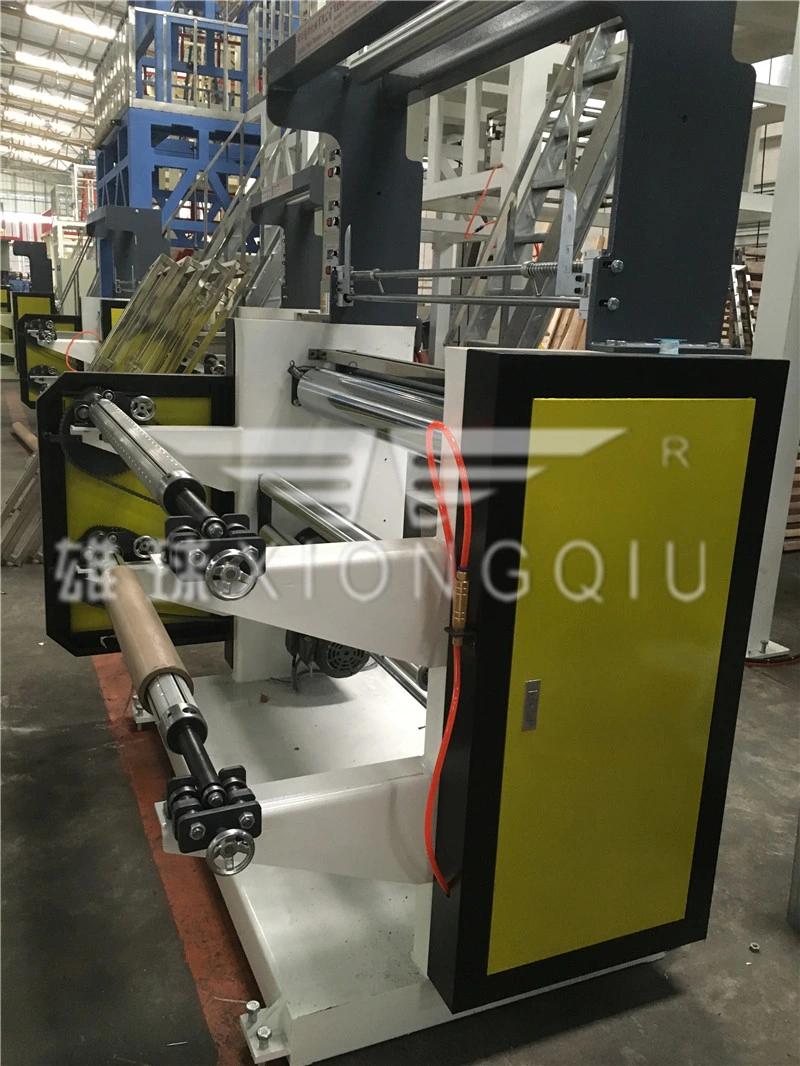

other pictures for reference:
