Gravure Printing Machine with Film Extruder
BEHAPPY CRAFTS (SUZHOU) CO., LTD.Base Info
Description
28:1Main motor(kw) 11 15 18.5 Dia of orifice(mm) Φ80/Φ120 Φ80/Φ160 Φ120/Φ220 Printing length(mm) 250-1000 250-1000 250-1000 Precision of color printing(mm) :0.2 :0.2 :0.2 :0.2 :0.2 :0.2 Tota power(kw) 10 36 40 Weight (T) 4.3 5 6.2 Dimension LxWxH(M) 7.5x2x3.2 8x2.4x4 8.5x2.6x4.6

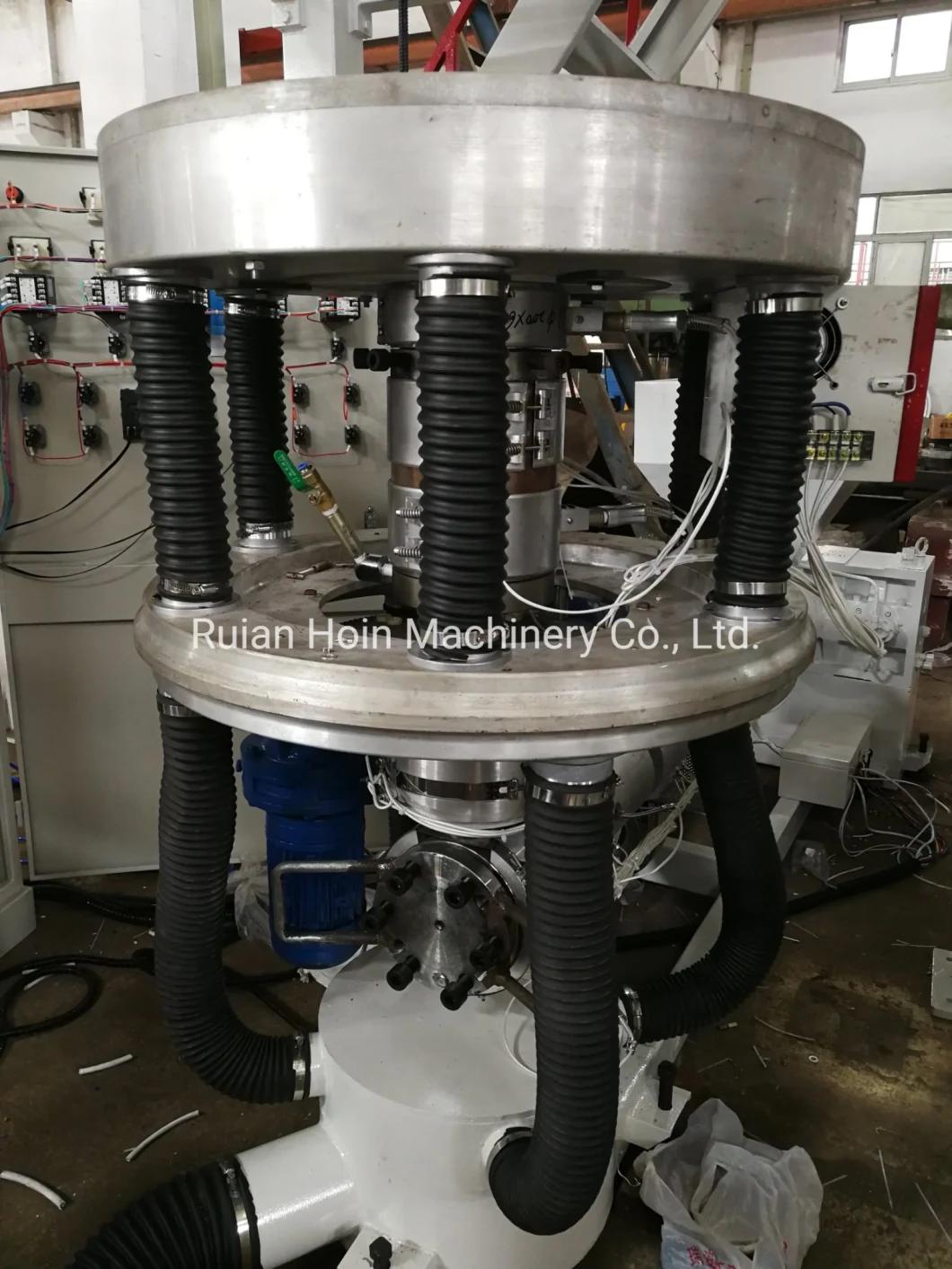

1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Heating Ring Material: Steel Stainless
Screen Changer: Standard Manual Type
Gear Box: Hard Tooth Surface Gear Box

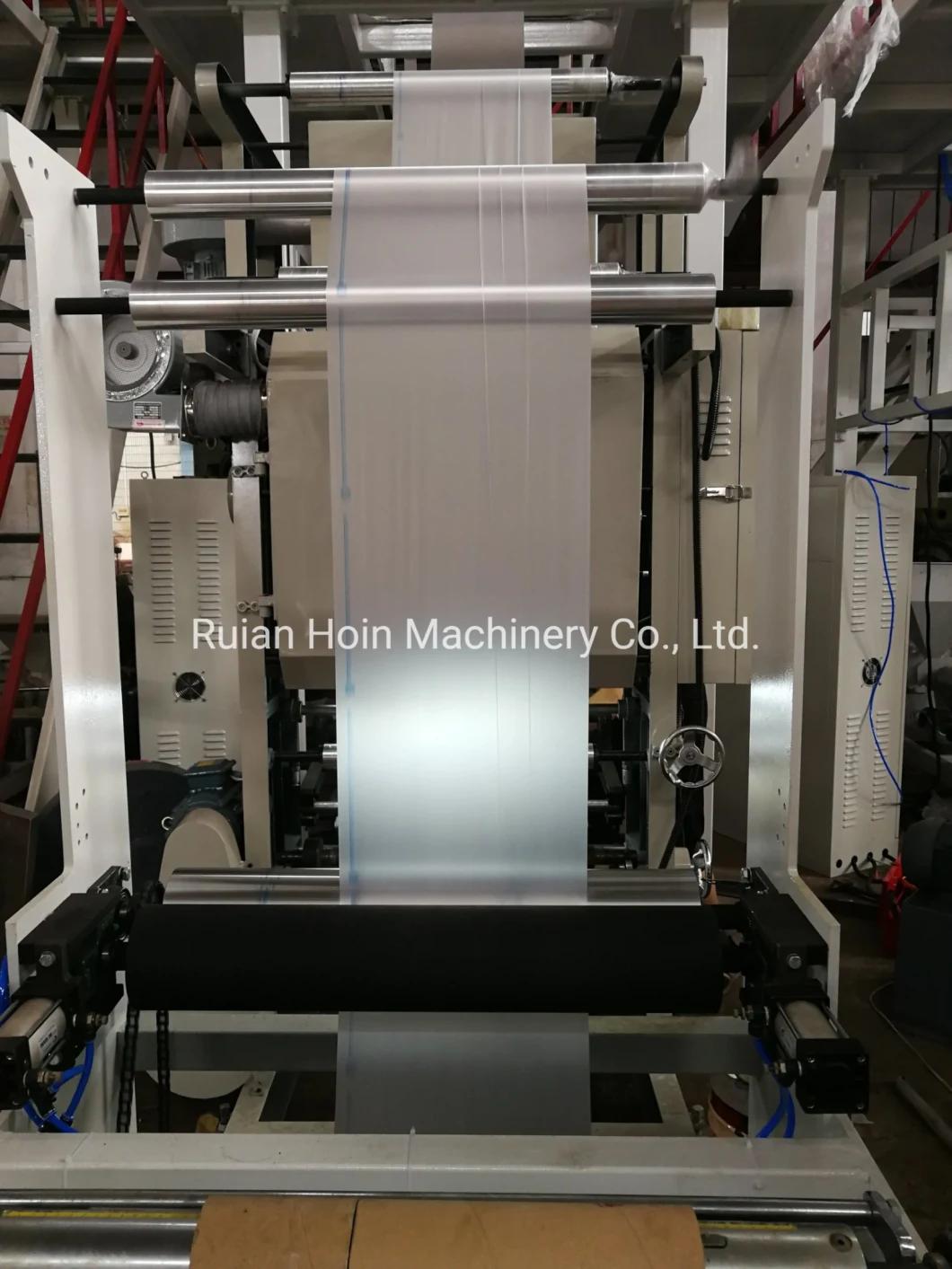

2. Take Up Section

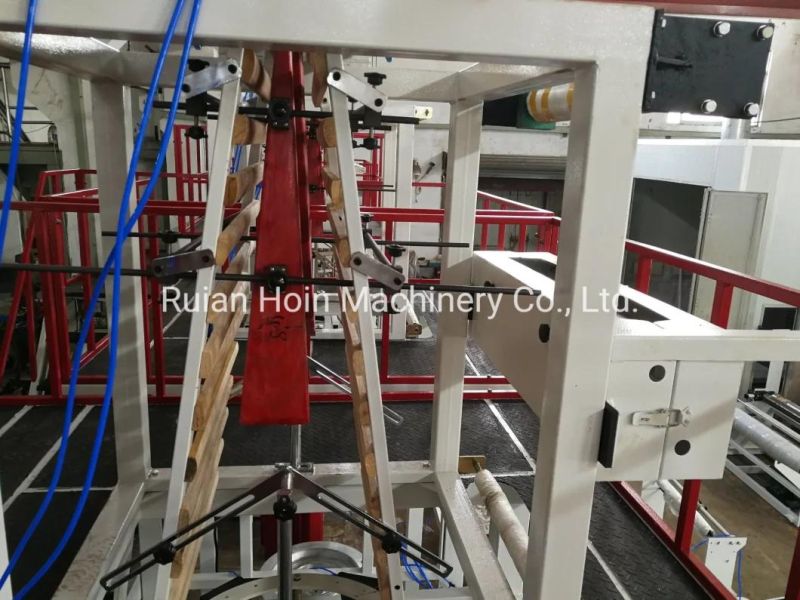

'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Corona Treater: 600MM
3. Printing Unit
Printing Speed: 10-60m/min
Printing Width: 550MM
Printing Color: 1-4 Colors
4. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

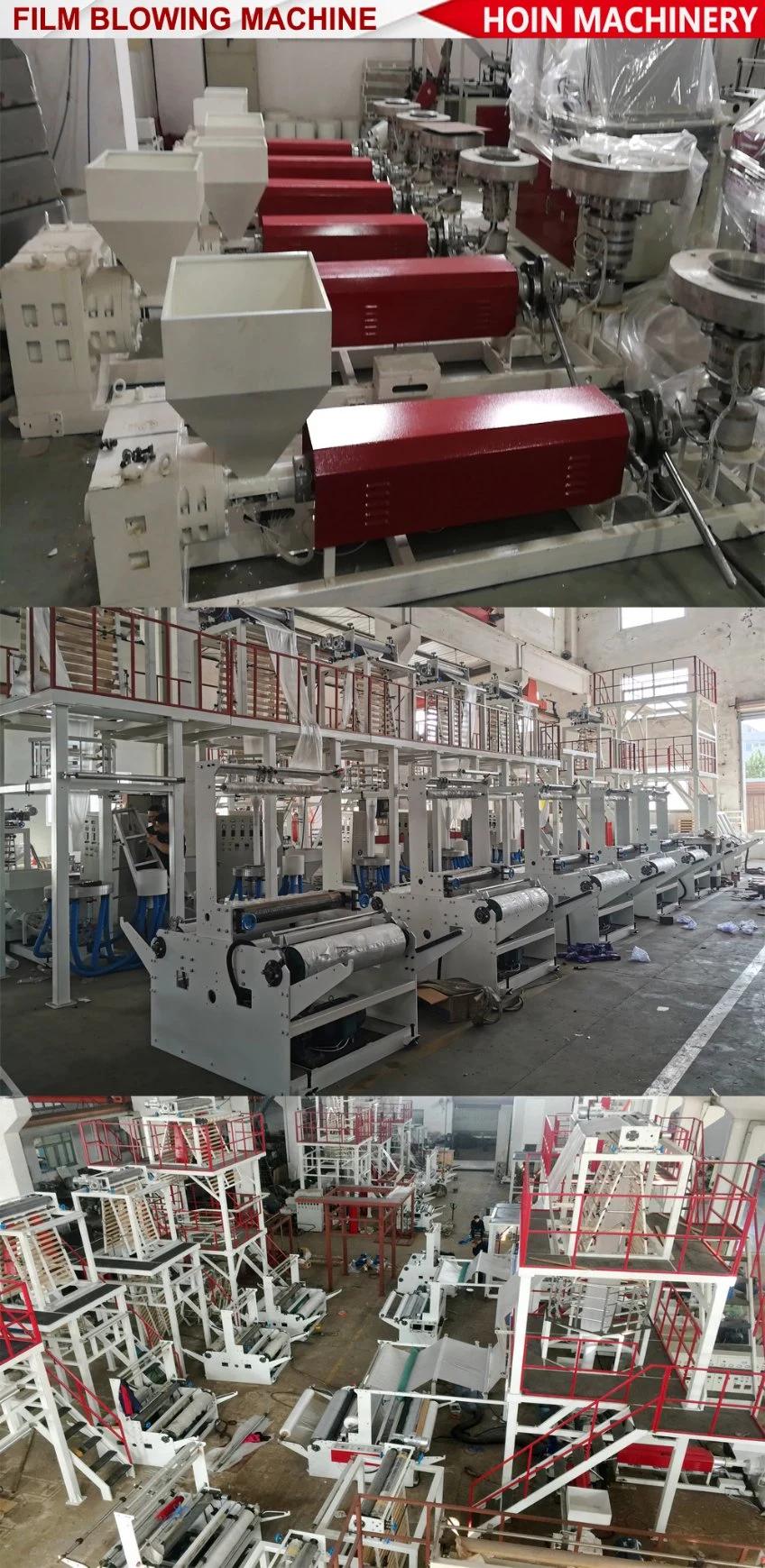

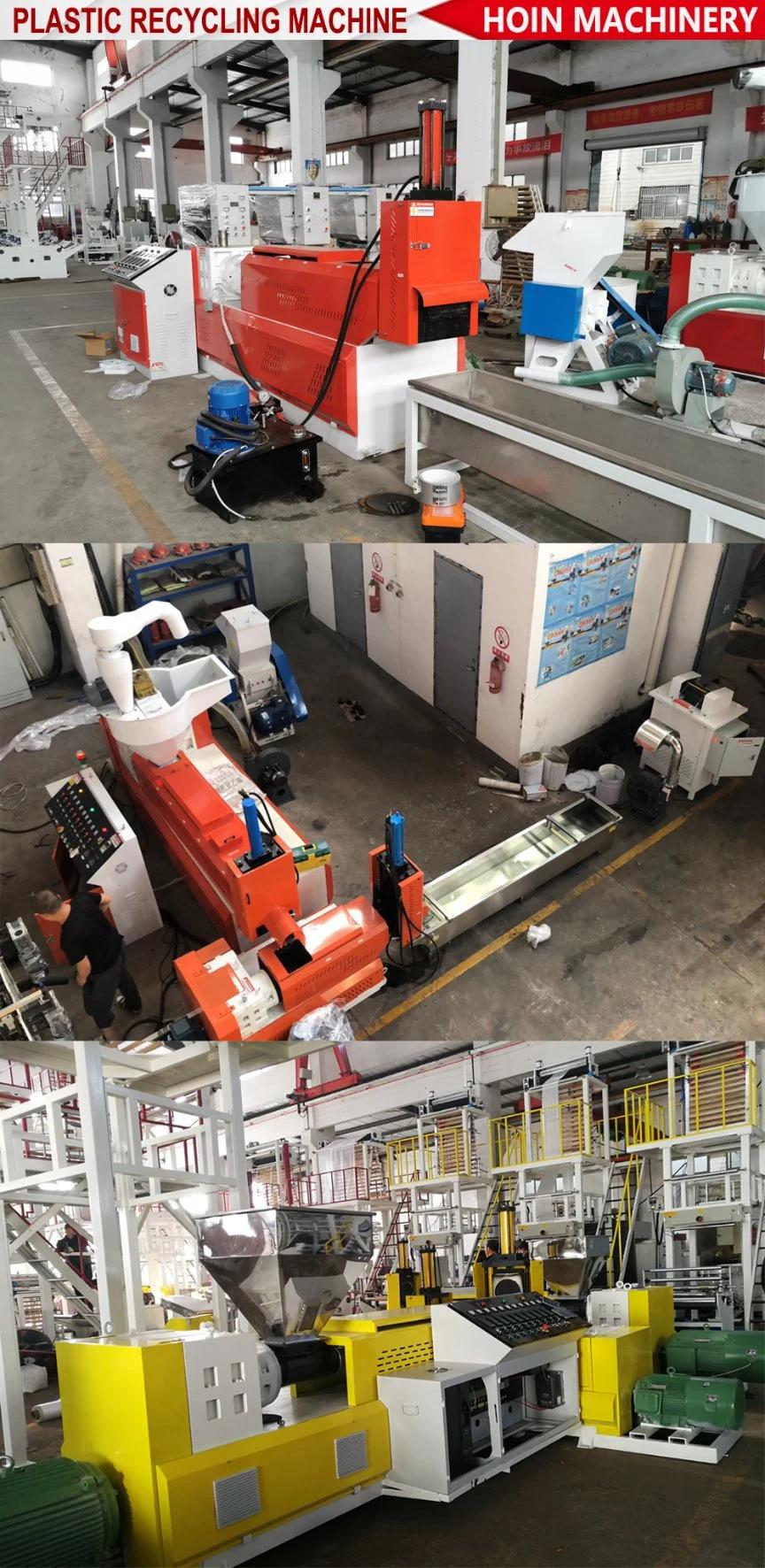

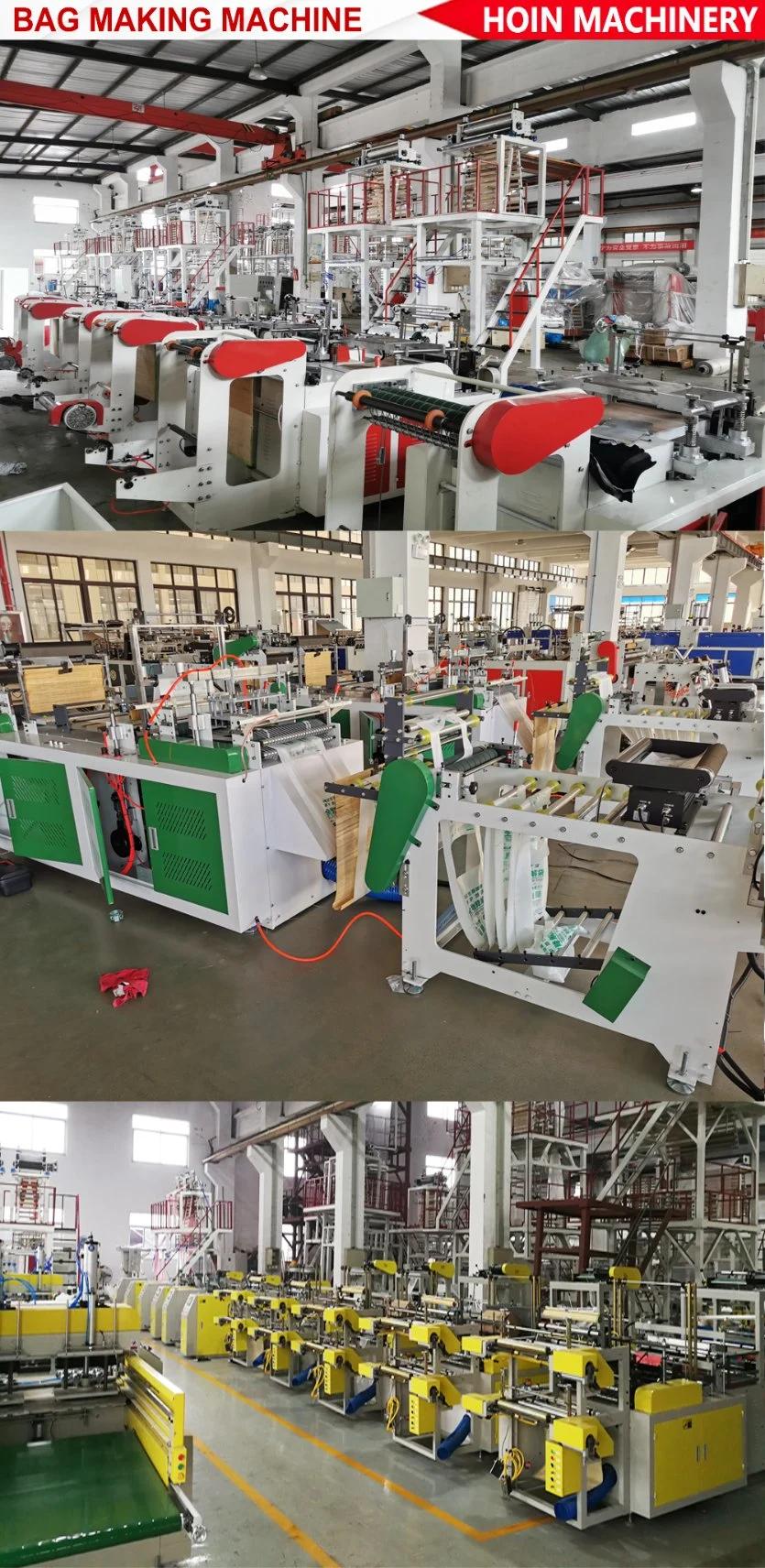

HOIN WORKSHOP

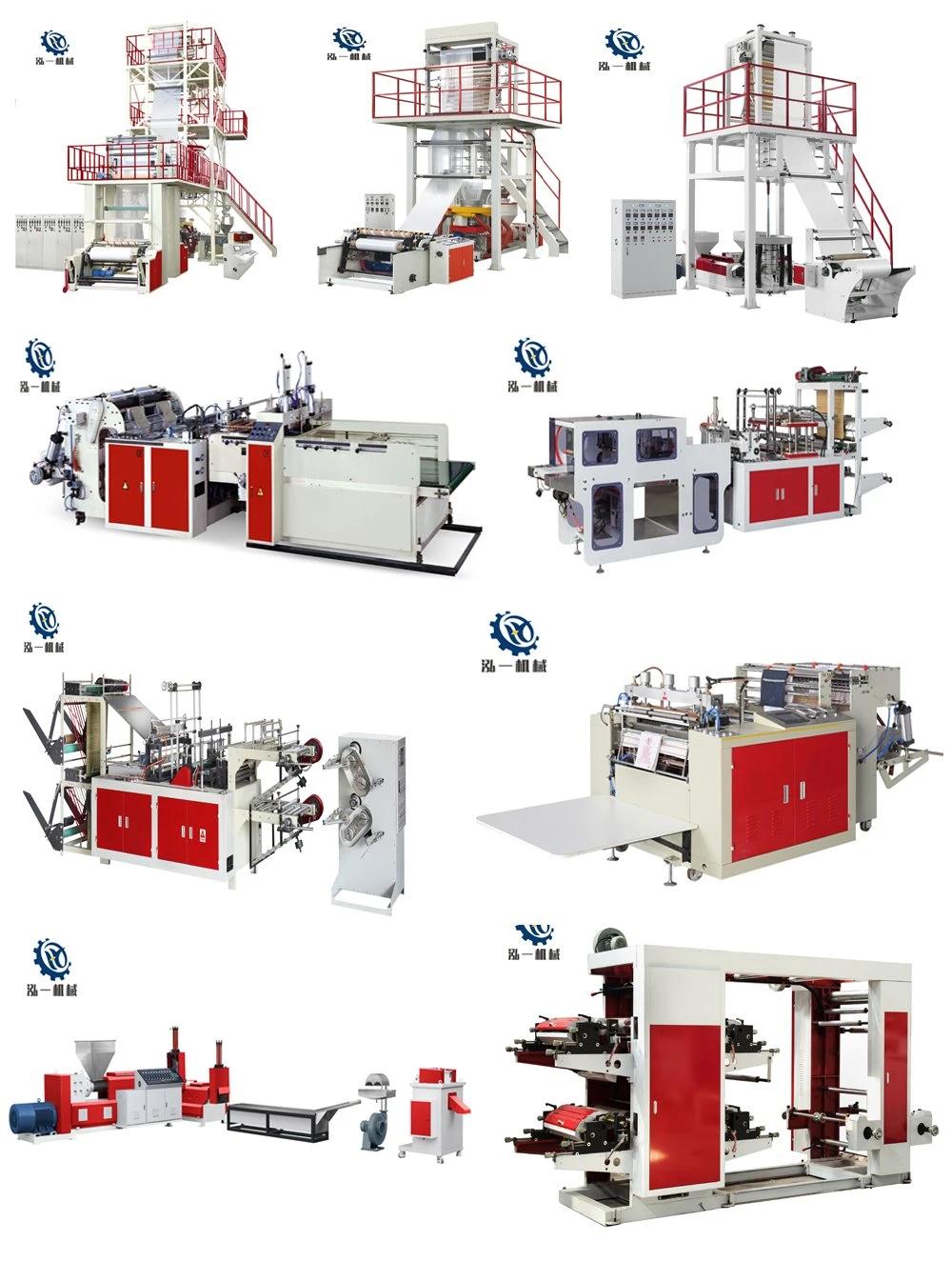

MORE PRODUCTS
AFTER SERVICE OF HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
