Stone Quarry Concrete Hydraulic Portable Diamond Wire Saw Machine

Wuxi Lancy Beauty Technology Co., Ltd.
  • Application：Diamond
  • Type：Electric
  • Hydraulic Pump：Yg-25
  • Voltage：220V,380V, 50Hz, 3 Phase
  • Rotation：1300r,Min
  • Frame & Wheels：Aluminum

Base Info

  • Model NO.：YG-25
  • Cutting Speed：3~5m2,H
  • Motor Power：25kw
  • Motor Type：Hm-80, 2 Cylinders
  • Working Pressure：15-20MPa
  • Size：720*650*1050mm
  • Weight：170kg
  • Transport Package：Wooden Case Export Package
  • Specification：720*650*1050mm
  • Trademark：Yugong
  • Origin：China, Henan
  • HS Code：8461500090
  • Production Capacity：10000

Description

                                                                Hydraulic wire sawWire driving modehydraulicMotor typeHM-80(double cylinder)Output frequency33HPAxis output rotation1300r/minWire saw(Max.)18mFeeding methodautomatic hydraulicCutting machine weight64kgMotor weight14kgTotal weight78kg                                                           Hydraulic wire sawWire driving modehydraulicMotor typeHM-80(double cylinder)Output frequency33HPAxis output rotation1300r/minWire saw(Max.)18mFeeding methodautomatic hydraulicCutting machine weight64kgMotor weight14kgTotal weight78kg                                                                 Diamond wireDiameter11.5mmBeads amount40/MWire length50M/circleWorking efficiency2m2/hWire consumption2-3m2/M

Product Display

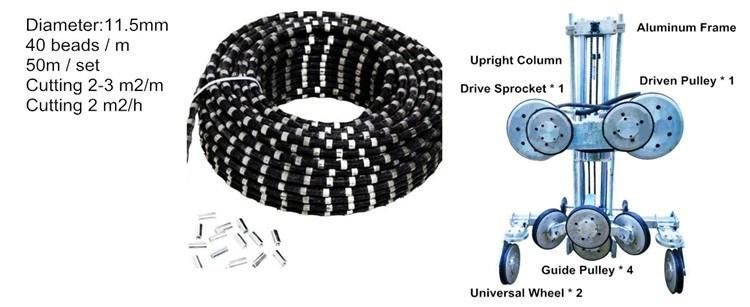

Stone Quarry Concrete Hydraulic Portable Diamond Wire Saw Machine

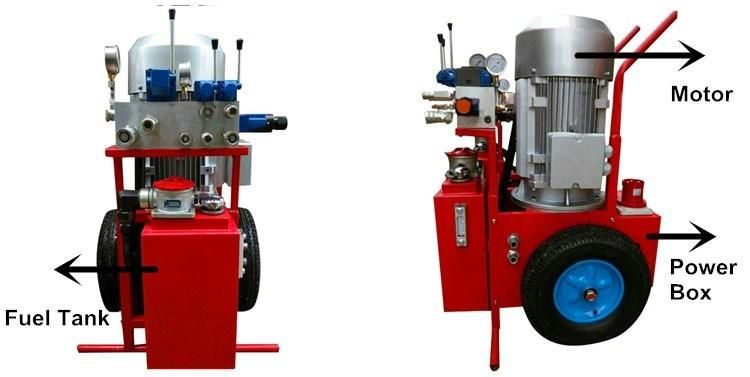

Stone Quarry Concrete Hydraulic Portable Diamond Wire Saw Machine

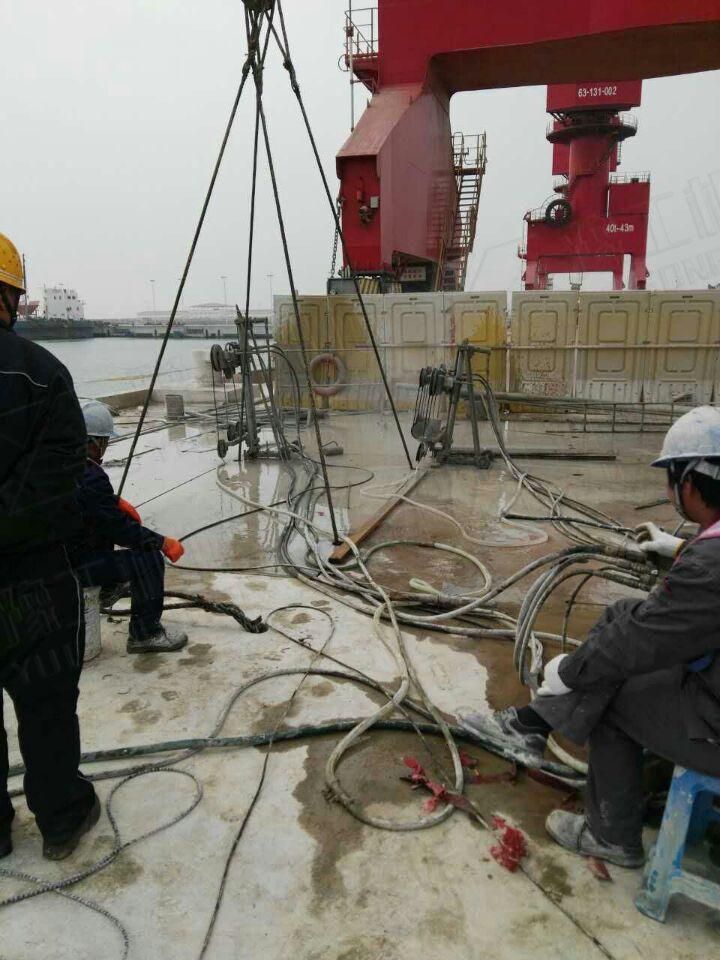

Working Picture
Stone Quarry Concrete Hydraulic Portable Diamond Wire Saw Machine
