• Model NO.：PEDK-9060
• Laser Technology：Laser Fusion Cutting
• Engraving Machine Type：Laser Engraving Machine
• Control：Automatic
• Current：AC
• Laser Type：CO2
• Usage：Plastic
• Model：6090r
• Working Area：600*400mm, 600*900mm, 1300*900mm
• Laser Power：60W , 80W , 100W , 120W , 150W
• Engraving Speed：1-60000mm,Min
• Cutting Speed：1-10000mm,Min
• Transport Package：Sea-Worthy Packing or Air-Worthy Packing
• Specification：CE & ISO 9001: 2000
• Trademark：Perfect
• Origin：China
• HS Code：84572000
• Production Capacity：5000 Sets,Year

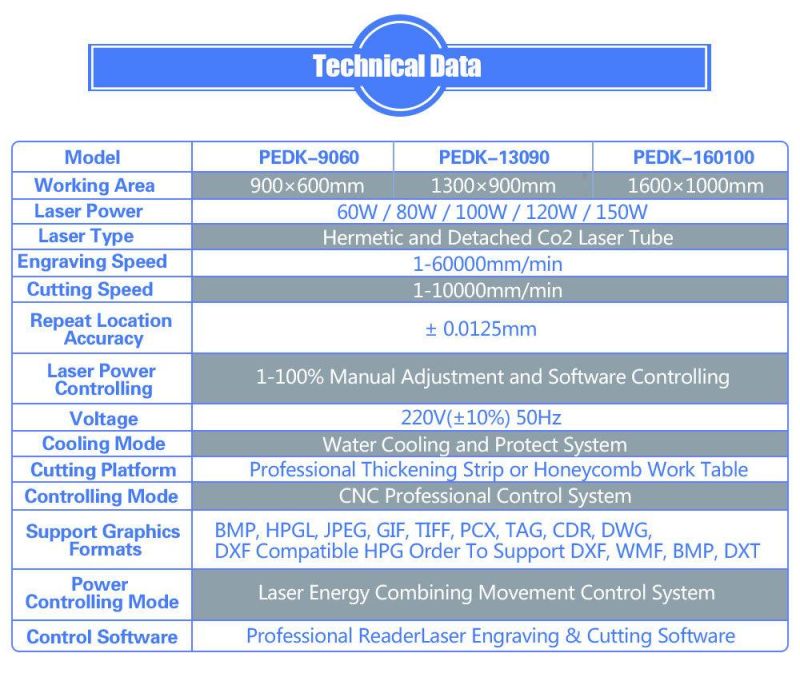

Basic Info.

Model NO. PEDK-9060 Laser Technology Laser Fusion Cutting Engraving Machine Type Laser Engraving Machine Control Automatic Current AC Laser Type CO2 Usage Plastic Model 6090r Working Area 600*400mm, 600*900mm, 1300*900mm Laser Power 60W / 80W / 100W / 120W / 150W Engraving Speed 1-60000mm/Min Cutting Speed 1-10000mm/Min Transport Package Sea-Worthy Packing or Air-Worthy Packing Specification CE & ISO 9001: 2000 Trademark Perfect Origin China HS Code 84572000 Production Capacity 5000 Sets/Year

Product Description

Features:
2. Advanced LCD Touch Screen+ USB port+ Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
3. LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.
6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1× 1mm little English character perfect.
10. Red Light Pointer realizes the exact position without laser.




Application Fields:
Available Materials:
1. It's widely used in advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
2. Wood material: Wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.

Application Industry:
Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
