Basic Info.

Model NO. SJ-75 Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Brand Tongsan Proudct HDPE/PP Pipe Machinery Suitable Material HDPE/PP/PPR Cooling Way Water Cooling After Sale Plastic Pipe Machine Transport Package Wood Block Fixed Steel Wire Reinforcement Specification 110-250mm Trademark Qingdao TONGSAN Origin Qingdao, China HS Code 84772090 Production Capacity 24/Years

Product Description

HDPE Pipe Production Line can produce HDPE Gas and Water Pipes.


HDPE pipe Production Line Model

Model	Screw Diameter	L/D	Pipe Range (mm)	Motor Power (kw)	Total Power (kw)	Line Length (M)
PE-63	65mm	33:1	16-63	37	80	24
PE-110	65mm	33:1	75-110	55	110	30
PE-160	75mm	33:1	90-160	90	150	32
PE-250	75mm	33:1	110-250	110	200	42
PE-315	90mm	33:1	160-315	160	240	44
PE-400	90mm	33:1	200-400	185	300	50
PE-500	120mm	33:1	250-500	280	350	56
PE-630	120mm	33:1	315-630	280	480	56
PE-800	150mm	33:1	400-800	315	550	72

Feature:

   1,The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.

   2,Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.







   3, Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.



   4,Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

TONGSAN has 23 years experience in manufacturing plastic pipe machinery.

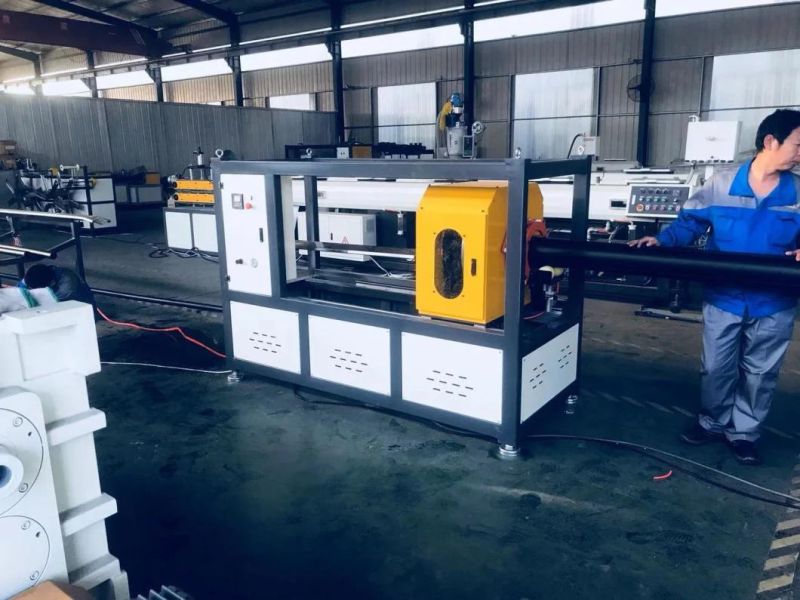

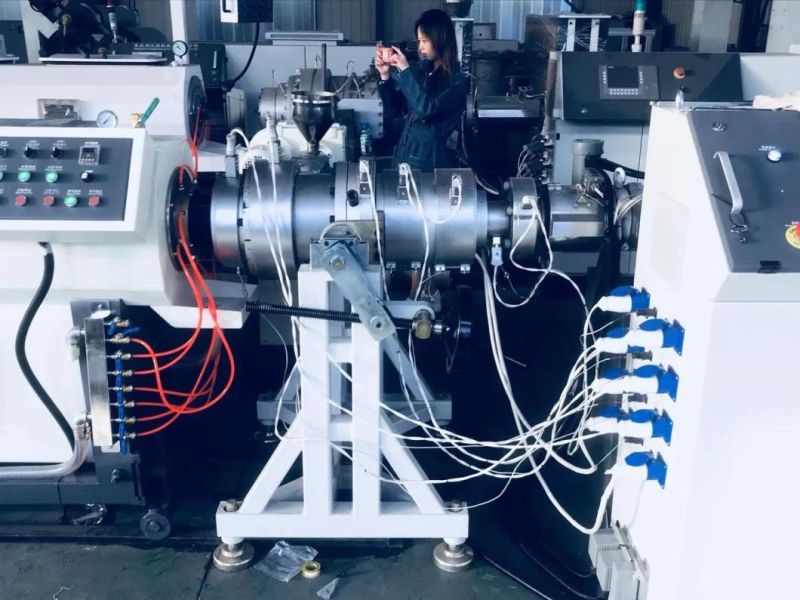

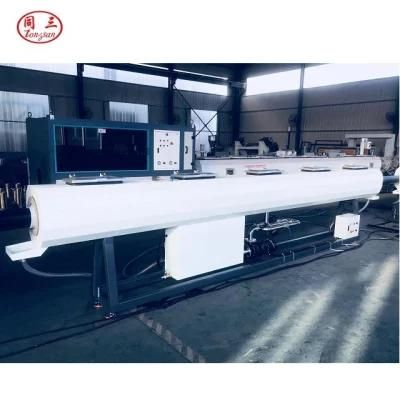

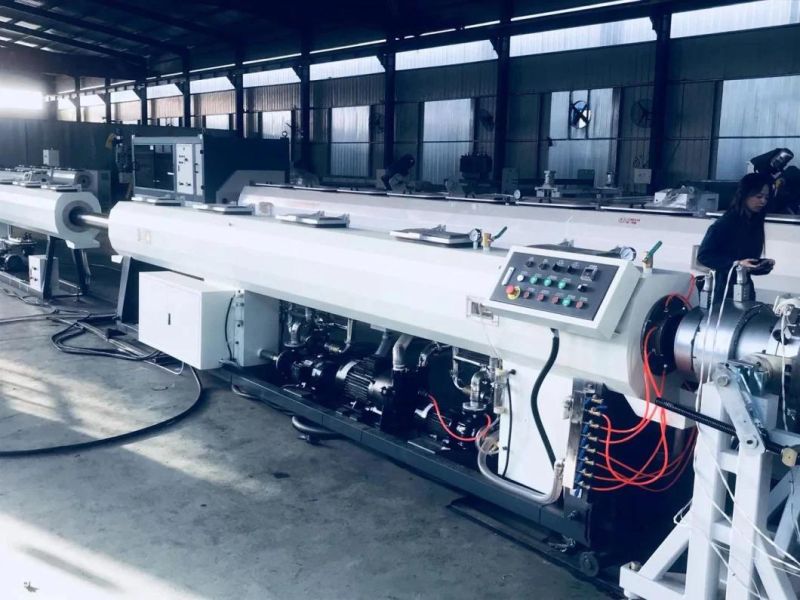

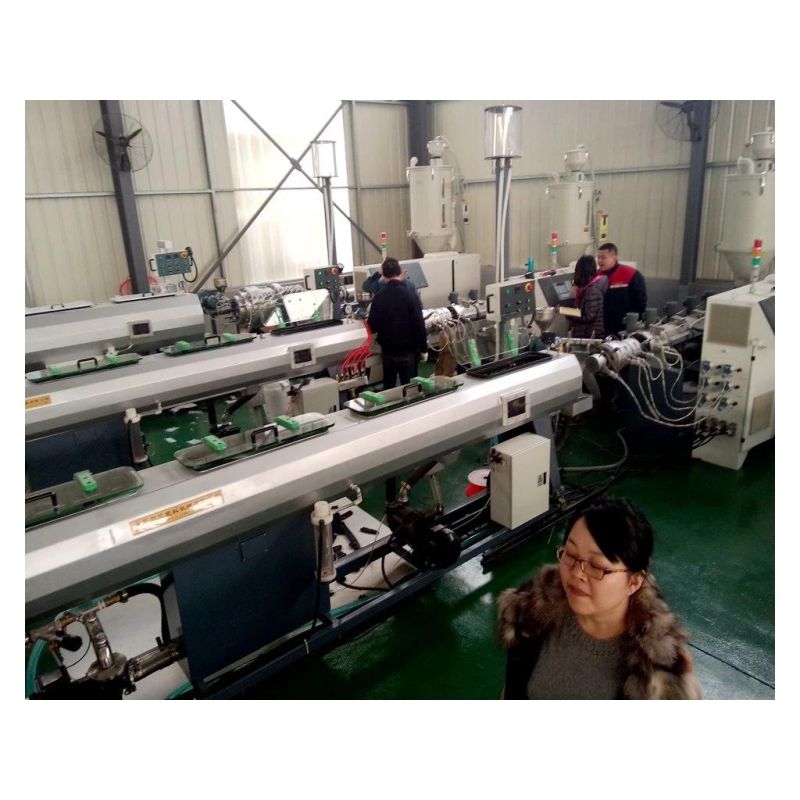

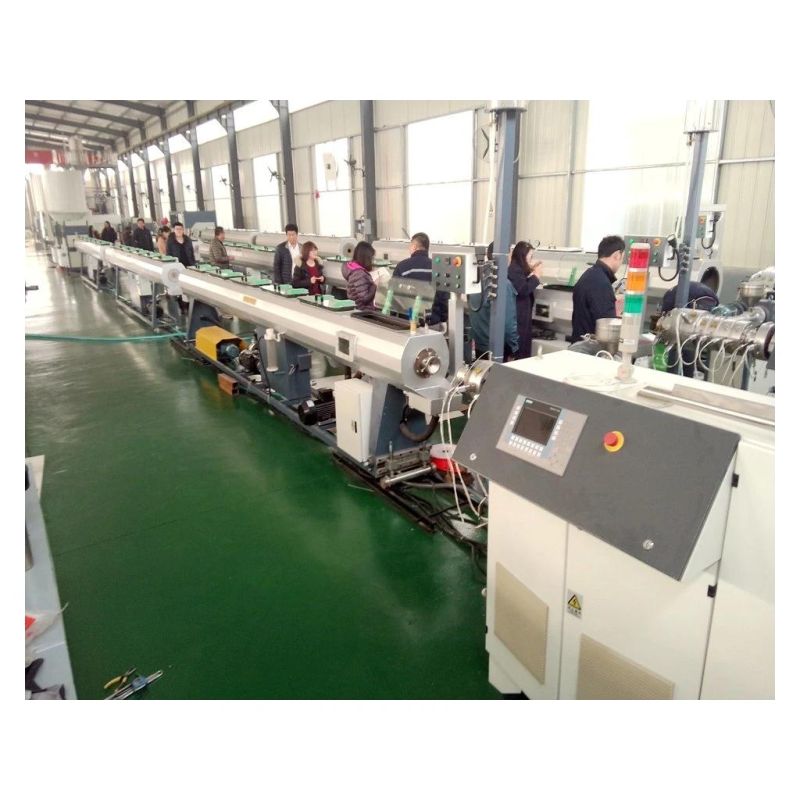

Plastic  Pipe Extrusion Line Workshop:

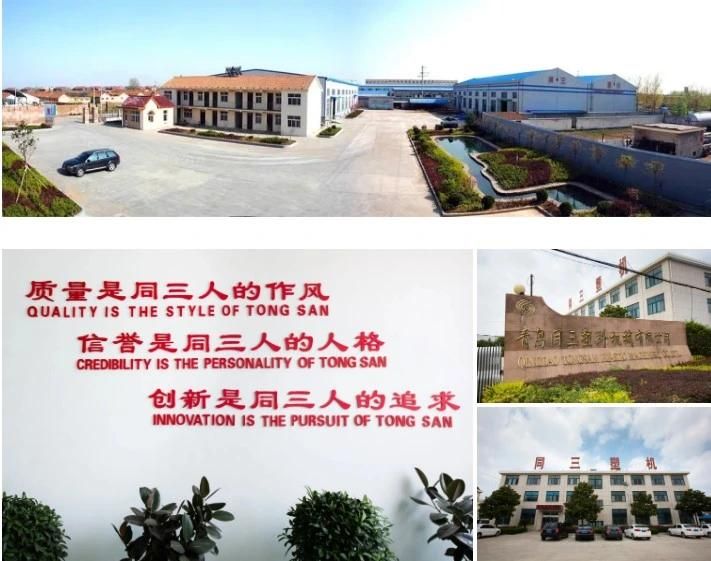

Company Introduction:
Qingdao Tongsan Plastic Machinery Co.,Ltd is one experienced plastic machinery manufacutrer since 1997.
Qingdao Hegu Wood Plastic Machinery is sister company of TONGSAN, which is focused on Wood Plastic Composite Extrusion Line!

Our Motto
Quality is the style of TONGSAN.

Credibility is the personality of TONGSAN.

Innovation is the pursit of TONGSAN.


Exhibition

Our Services

1. We will provide the Feasibility Analysis Report for the wood plastic project.
2. We will provide the model selection and technical parameter for wood-plastic machine.
3. We will provide the design for the plant and electric powder accounting for the facilities.
4. We will provide the design for wood plastic formula according to the product requirement.
5. We will provide the technology of wood plastic product surface treatment.
6. We will provide technique training for operator.
7. We will provide solution for the practical problem during the production.
8. We will install and test machine for free.
9. We will provide turnkey project to customers.

Contact me
We look forward to have the opportunity to work together with you in the future.
Alan Jia
