Basic Info.

Model NO. DFS-70 Type Rotary Drilling Rig Power 48kw Drilling Hole Diameter 700mm Stratum Soil, Gravel, Weathered Stone, Concrete Dimension 7700*2000*2700mm Weight 7.1t, 6.7t Hydraulic Work Pressure 20MPa Mobile Base Mounted on Truck Name Consturction Foundation Widely Used Auger Drill Ri Usage Water Well, Coal, Farm Irrigation, Pile Foundation Power Type Diesel Transport Package as Requirement Specification 15m drilling depth Trademark DEFY Origin China Mainland Production Capacity 50sets/Month

Product Description

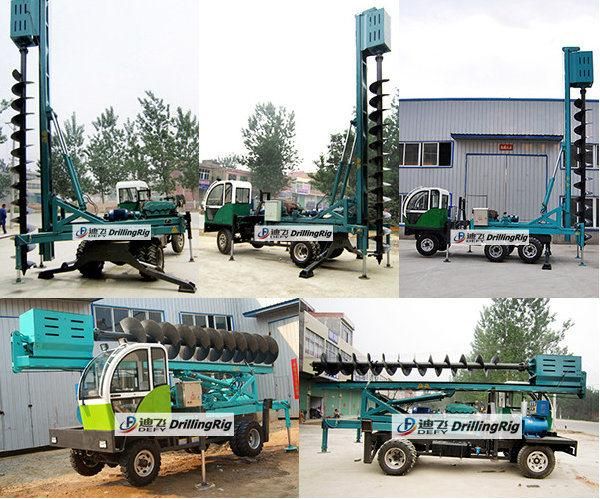

Consturction foundation widely used auger drill rig

I. Application of DFS-70 auger drill rig

Max 15m depth DFS-70 truck mounted auger drill rig machine is Widely used for Cement pole borehole of power construction, Photovoltaic (pv) stent pile foundation drilling, Pile foundation of building construction and so on.

II. General Description of DFS-70 auger drill rig

DFS-70 is designed and manufactured by our factory with latest technology, awarded by National Patent Product. It is very well received by customers for high efficiency and excellent performance.

III. Features of DFS-70 auger drill rig :

1. 1. Full Hydraulic controlling system.
2. 2. Hydraulic stabilizer legs.

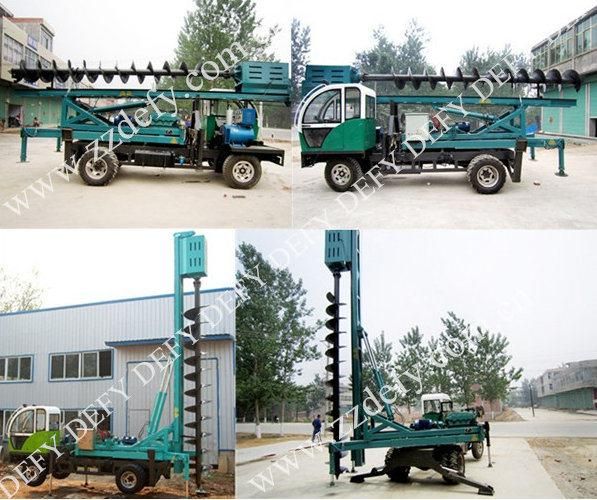

3. 3. People can drive to move like a car, as you can see in the picture.
4. 4. Easy operation, people without experience can handle it in short time.
5. 5. Reasonable structure, flexible transport, remote control.

III. Technical Parameters of DFS-70 auger drill rig :

Dimension(mm)	7700x2000x2700
Wheel tread(mm)	2000
Wheel base(mm)	3200
Walking way	Rear Wheel Drive/Four Wheel Drive
Brake method	Air brake
Turnaround mode	Mechanical/Hydraulic
Running speed(Km/h)	40
Max. Drilling diameter(mm)	700
Max. Drilling depth(m)	15
Power(Kw)	48
Nominal Voltage(V)	380
Generator power(Kw)	24
Power supply(V)	Tractor&External 380V
Hydraulic working pressure(Mpa)	20
Frame Rotation Angle	270°
Weight(T)	6.7



DERY Service

1.Professional technical support pre-sale, sale and after-sale .

2.Your problems can get feedback in 8 hours and solved in 24 hours.

3.Machine can be customized as per your requirement.

4.One year quality warranty.

5.Training: operation manual and DVD operation video, overseas installation is also available.

6.Spare parts are available in our factory at cost price for former customers.


Customer visit

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advice whenever you need.

Thanks for browse our products information. If you have any question, or want to know more about drilling rig, Pls contact me directly:
