Basic Info.

Model NO. HSD Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Product Width Max 3000mm Product Thickness 0.1-30mm Material PE,PVC,EVA Application Semi-Conductor Character Flexible, Water Proof Transport Package Standard Package Specification ISO9001: 2008 Trademark HSD Origin Qingdao HS Code 8477209000 Production Capacity 30 Units/Year

Product Description

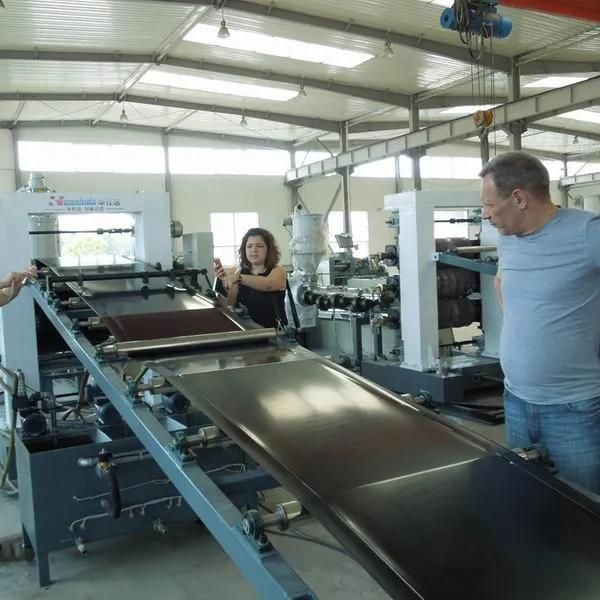

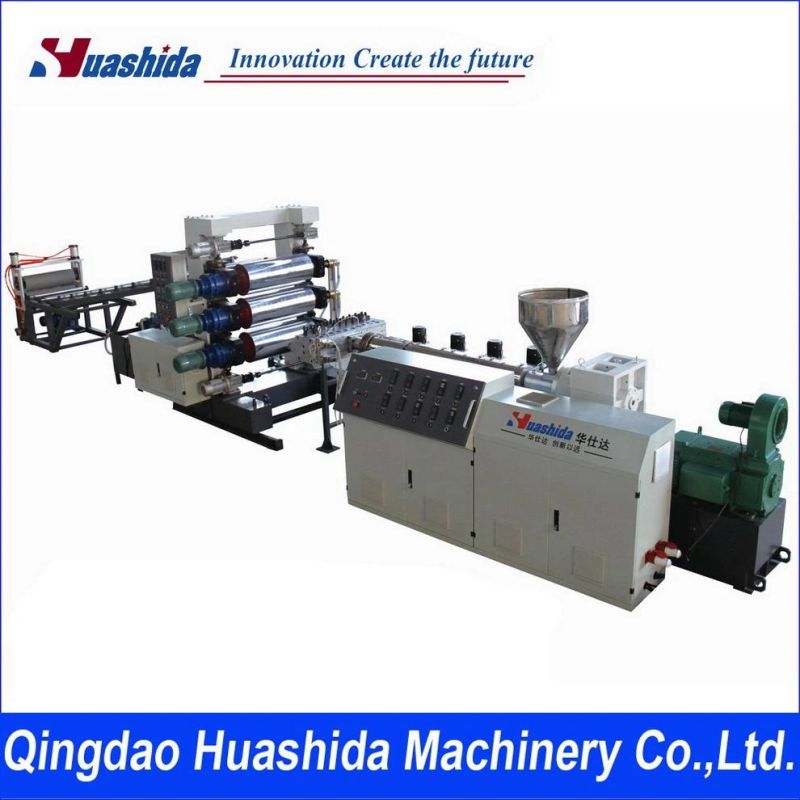

Plastic PP HDPE sheet film Board Extrusion Line

The  Plastic PP PE PVC sheet extrusion lines is the most complete, high performance, reliable sheet line. Qingdao Huashida Machinery Co,. Ltd can manufacture complete systems in 3 sizes extrusion line with a 65mm, 90mm, or 120mm extruder, to produce what the capacity you need.




Features of the  PP HDPE Board Extrusion Line:
The single screw extruder with good motor, digital controls, vacuum venting, screen changer, gear box, and a flexible lip die. Your extruder also can be equipped with the PLC/PCC control system, the specially design screw for HIPS, PP, and PET.
1.High grade alloy structural steel ( 38CRMOALA) made material barrel& screw and mould, after nitriding treatment. It gets high hardness, corruption and long service life.

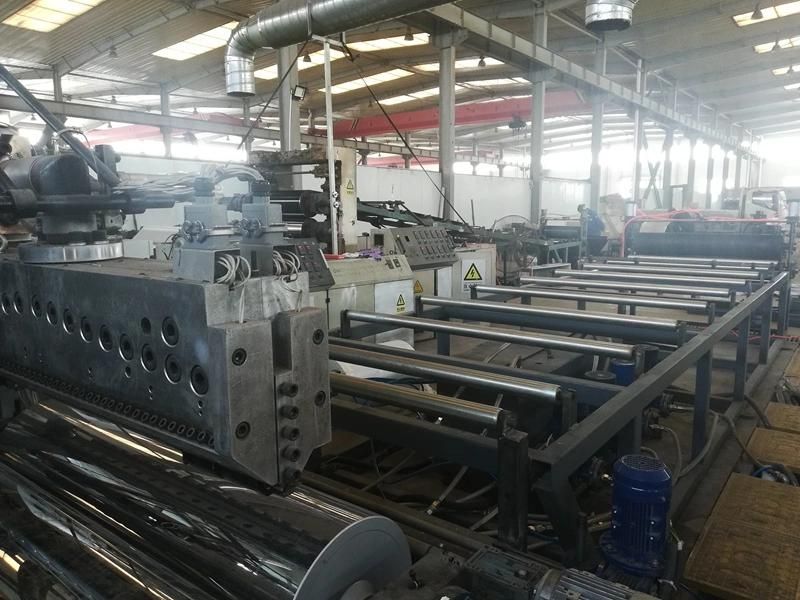

2.Choice T-die the flowing passage is designed for easy flowing of thehout any detaining, and the product thickness is even,
3.  the calender, large conical slot is designed, the cooling quality inside the roller is good, and the temperature synchronization,

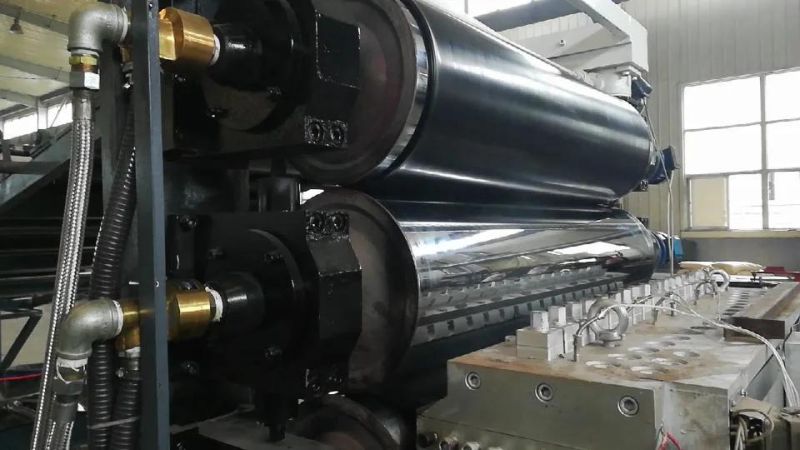

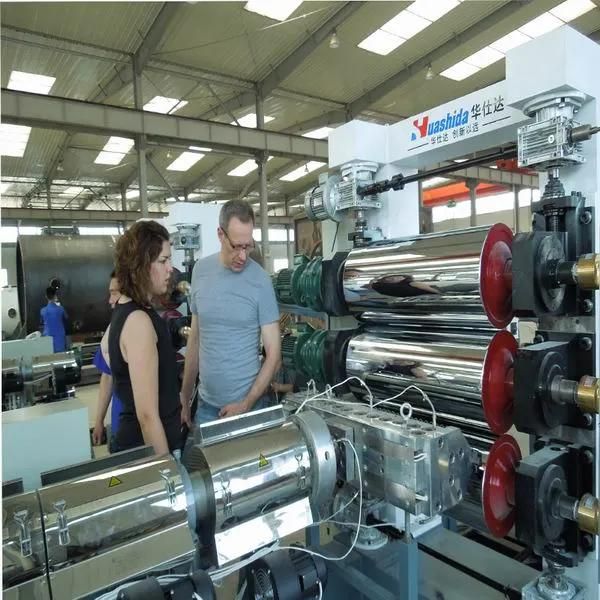

The sheet take-offs (Three rolls calender) feature three hard surface polishing rolls with flawless mirror chrome plating, designed for the highest efficiency heat transfer. Each roll is equipped with an individual, built-in, high volume pressurized water temperature control system. The sheet take-offs also includes two shaft winder.
Every lines include an edge trim system.

Plastic PP PE PVC Board Extrusion Line parameter details as below:

Extruder	Sheet Width	Sheet Thickness	Capacity	Total Power	Dimension
SJ65/30	Max. 800mm	0.2-3mm	150Kg/h	100Kw	18× 2× 2.5
SJ90/30(33)	Max. 1200mm	3-15mm	280-300Kg/h	150Kw	24× 2× 2.5
SJ120/30(33)	Max. 3000mm	0.5-20mm	500Kg/h	250Kw	20× 4× 2.5
