Basic Info.

Model NO. JSJ-63-1200mm Condition New Outcome 80-1500kg/H Transport Package Wooden Pallet or Nude Specification CE ISO Trademark Jinfuxin Origin Qingdao, China HS Code 8477800000 Production Capacity 80-1500kg/H

Product Description

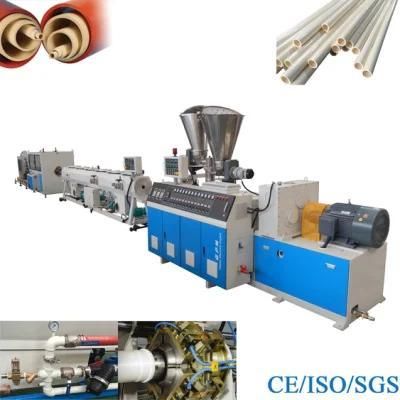

HDPE gas & water pipe extrusion line

HDPE gas & water pipe extrusion line can produce pipe which diameter range is from 20mm to 1200mm.

It consists of automatic feeding system/single screw extruder/die head/vacuum calibration tank/
Spray cooling tank/haul off /cutting machine /stacker. HDPE gas & water pipe extrusion line

Uses electric parts brand of this line is Siemens/OMRON/SCHNEIDER. It can keep machine operation
Stability. Adopt PLC control and simple operation. Unique grooved structure feed bush with
Force cooling system.

Variable screw-pitch and doubleseparate structure screw is specially designed for PE.
Comprehensive plasticizing element, ensure the plasticizing effects of materials.

The HDPE gas & water pipe has excellent stiffness and flexibility, heat resistance, aging resistance,
High mechanical strength, resistance of environmental. It is mainly used in ductwork systems
And gas supply systems.

Model	Range (MM)	Extruder Model	Mark-line Extruder Model	Extrusion Speed (m/min)	Max.ouput	Total Installed	Overall Dimension
JSJ -63	20-63	FSJ-50X33	FSJ-25X25	0.2-16	120	65	36X2.2X2.5
JSJ -110	20-110	FSJ-65X33	FSJ-25X25	0.2-20	220	115	56X2.2X2.5
JSJ -160	63-110	FSJ-75x33	FSJ-25X25	0.2-6	300	160	50X2.2X2.8
JSJ -250	75-250	FSJ-80X33	FSJ-25X25	0.2-5	400	200	52x2.2x3.0
JSJ -400	160-400	FSJ-90X33	FSJ-25X25	0.2-2	550	250	66X2.2X3.0
JSJ -500	200-500	FSJ-100X33	FSJ-25X25	0.1-1	700	300	70X2.3X3.5
JSJ -630	355-630	FSJ-120X33	FSJ-30X25	0.1-1	900	420	72X2.3X3.5
JSJ -800	400-800	FSJ-135x33	FSJ-30X25	0.08-0.8	1200	500	76X2.5X4.0
JSJ -1200	800-1200	FSJ-150X33	FSJ-30X25	0.05-0.5	1500	650	80X3.0X4.0
