Basic Info.

Model NO. TF-78A Servo Motor for Forming Machine Mitsubishi, Japan Speed 30circles/Min Stations 4, Forming, Punching, Cutting, Stacking Transport Package Thermforming Machine Wrap with Film Specification thermforming machine was according to CE standard Trademark Y. E Origin Zhejiang Ruian HS Code 847740 Production Capacity 5sets Thermoforming Machine Per Month

Product Description

Application:
The machine is suitable for producing all sizes of packing containers under high-speed vacuum function-positive and negative pressure forming processing. Plastic containers produced by this machine can be used for packing of food, tourist goods, cosmetic products, toy, electrical elements and hard-ware of daily use, etc.
It's suitable for PVC, HIPS, PET, PS, EPS material.

Specification

Model	TF78A
Max. Forming Area	600x400 mm
Depth of Draw under sheet	105 mm Max
Depth of Draw above sheet	85mm Max
Forming mold stroke	2*150
Cutting mold stroke	150mm
Cutting mold stroke	Max 100mm
Suitable material	PET PP PS EPS PVC
Sheet Width	350- 650 mm
Material Thickness Range	0.15-1.5 mm
Material Roll Diameter	1100 Max
Rewinding diameter	710 mm
Cycles per Minute	30 (PET 30Cycles/min, PP 20cycles/min)
Power Supply	3-N AC380V±15V
Air Pressure	0.7 Mpa
Cooling	water cooling
Heating power	80 kw
Feeding servo motor power	3 kw
Forming servo motor	5.5kw
Cutting servo motor	5.5kw
Dimension (L×W×H)	5300×1900×2000(mm)
Weight	4000 kg

multi-station Thermoforming machine sample container:

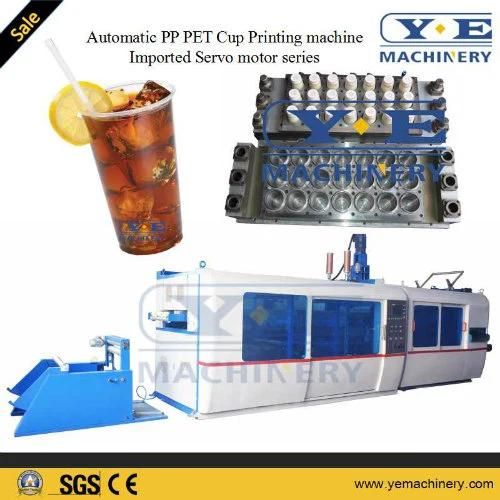

Tilt mold thermoforming machine for plastic cups:

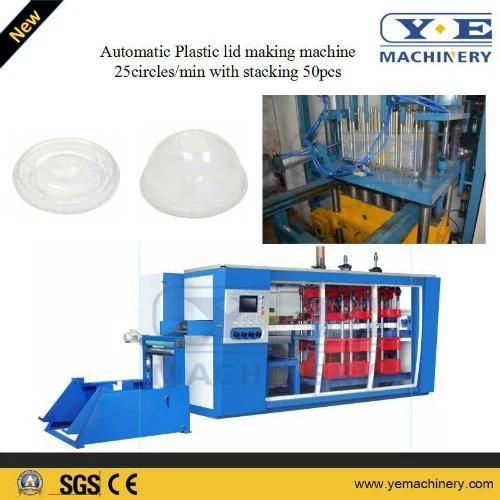

Cup lid making machine:

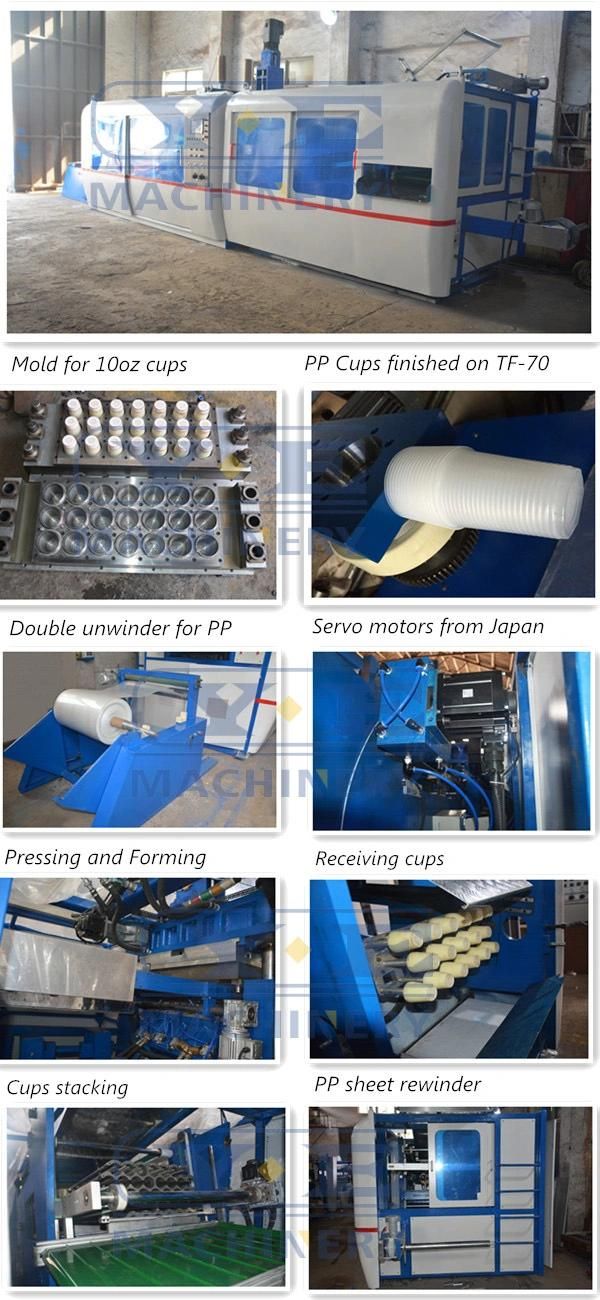

Details for tilt mold plastic cup making machine:
