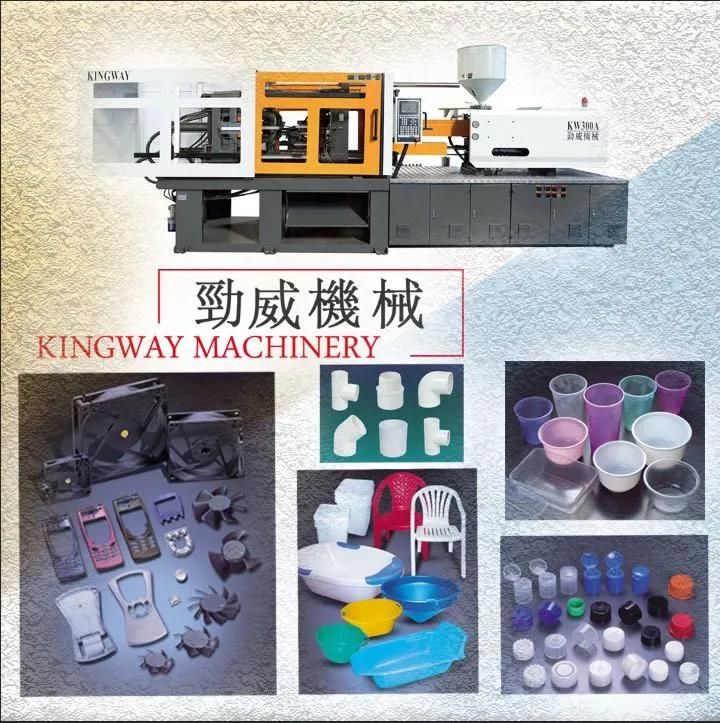

600ton Plastic Injection Molding Machine for Plastic Buckets
HONG SHENG SAWS MANUFACTURING CO., LTD.Base Info
Description
Technical parameterItem Unit Model KW600 Injection unit Screw type / A B C D Screw diameter mm 90 95 100 105 Shot volume(theoritical) cm3 2736 3048 3377 3723 Injection weight (PS) g 2462 2743 3039 3350 Injection rate g/s 552 612 679 748 Injection pressure Mpa 161 145 130 118 Screw rotation speed r.p.m 149 Clamping unit Clamping force KN 6000 Open stroke mm 870 Space between tie bars(W*H) mm 880*880 Max. mould height mm 900 Min. mould height mm 350 Ejector stroke mm 250 Ejector force KN 150 Others Max. Pump pressure Mpa 14 Pump motor power KW 30+37 Heating power KW 42.8 Machine dimension(L*W*H) m 10.2*2.2*2.8 Machine weight t 32
Application:
The machines applicable industries include general houseware, electronic products, auto parts, packaging, toys and building components etc.
Application:
The machines applicable industries include general houseware, electronic products, auto parts, packaging, toys and building components etc.
