ParameterRemarkPile   Max. pile diametermm1,500 Max. pile depthm56/44friction kelly/inter- locking kellyRotary Drive   Max. output torquekN·m155 Speed of rotationrpm5~35 Crowd system   Crowd forcekN155 Line pullkN160 Strokemm4,200 Main winch   Line pullkN160 Rope diametermm26 Max. line speedm/min80 Auxiliary winch   Line pullkN60 Rope diametermm14 Max. line speedm/min75 Mast inclination   Forward/backward°5/90 Lateral°±3 Main Chassis   Base engine                                         Mitsubishi  Engine powerkW/rpm147/2,050 Emission regulation COM/R96 Engine displacementL6.373 Chassis lengthmm5,972 Extended widthmm4,100 Track shoe widthmm700 Swing radiusmm3,717backsideOverall machine   Overall heightmm18,592 Operating weightt48 Transport widthmm3,140 Transport heightmm3,262

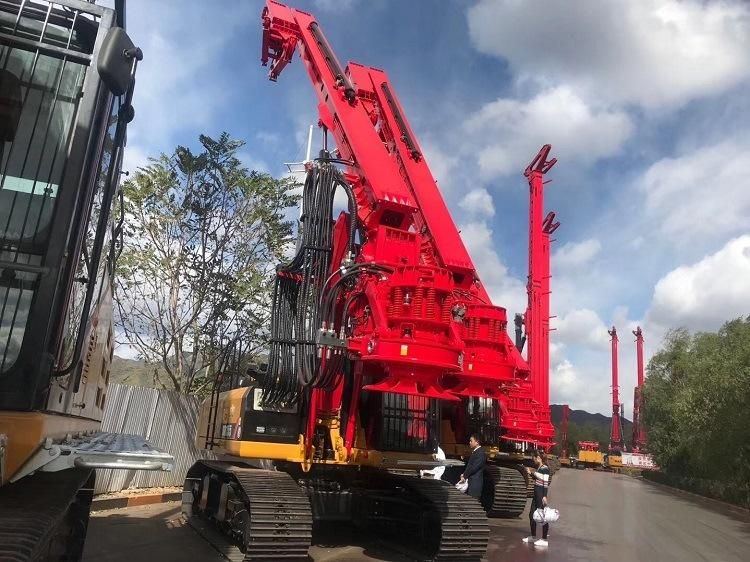

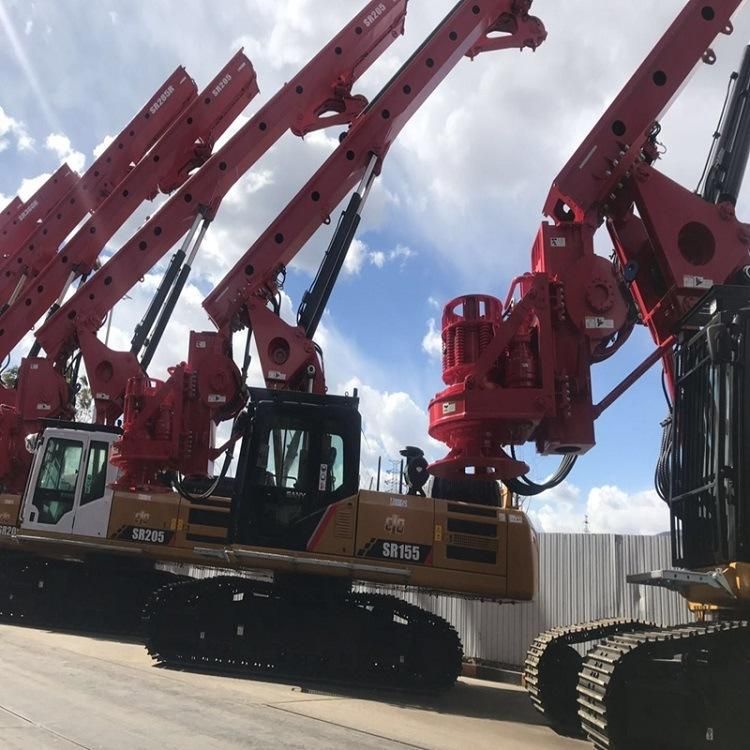

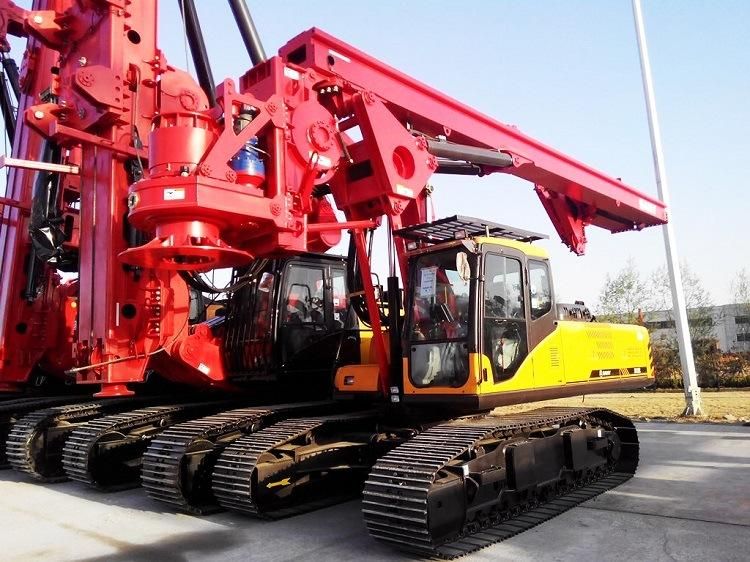

Product Pictures

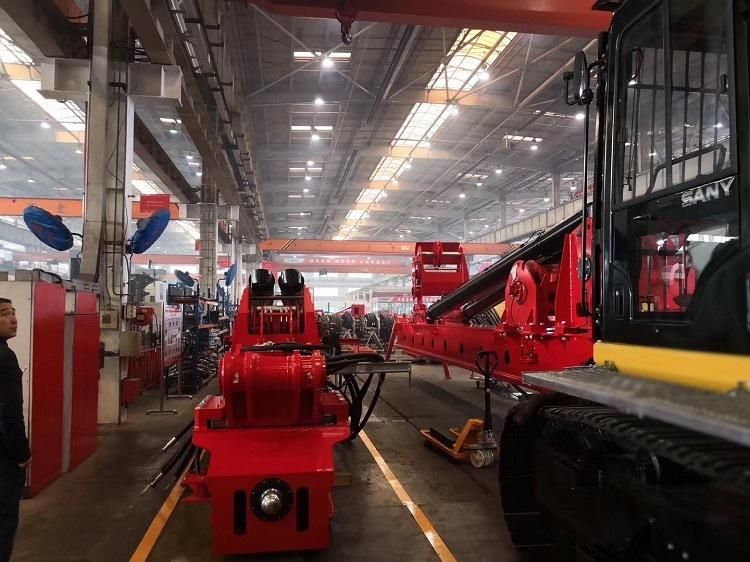

Company information
