Basic Info.

Model NO. SJ3 Series Machine Weight 5t Certification CE Machine Model 3sj-1200 Screw Ratio L/D 28:1 Screw Speed 15-150r/Min Film Extrusion Machine Weight 5t Transport Package Plastic Film Wrapping Specification CE/ISO Trademark RUIFENG Origin China Production Capacity 80kg/H

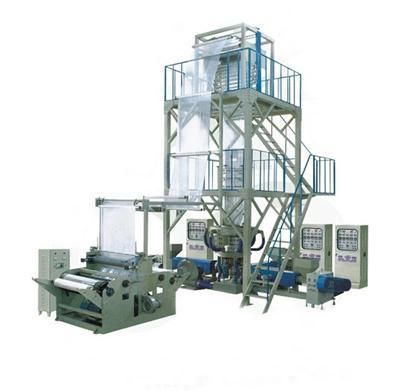

Product Description

Characteristics:

1. Die head is layer type spiral mandrel, continuous 360 rotation.
2. Screen pack changer design is reliable, safe in operation and change the fitter Screen easier.
3. Various functional parts may be installed to the lines. Such as length counting Device, vertical cutting device, cooling water row pipe, film spreading roller, Scrap collecting device.

Use:

The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the founds of preference of analogous lines in foreign and home. The lines can be blown continuous 800/1500mm in fold width 0.08mm In the thickness packaging films, film has good insulation, for instance holding temperature, anti humid, anti breeze, anti-rain, anti-rost, insulation oxygen, oil Resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.

Main Technical Variables

Model 3SJ-1200
Screw Diameter ¢ 60*2 ¢ 65*1
Screw Ratio L/D 28: 1
Screw Speed 15-150r/min
Main Motor Power 18.5Kw*2 22Kw*1
Extrusion Output(Single) 80kg/h
Range of Die ¢ 200 φ 250*1
Single-sided Thickness of Film 0.01-0.10mm
Max. Folding Width of Film 1200mm
Electric Total Capacity 88Kw
Overall Dimension 6800*4300*6000mm
Weight of Machine 5T
