Used in Different Field Fy180 180m Water Well Drilling Rig

Qingdao Yesheng Packaging Machinery Co., Ltd.

Base Info

Description

Contact WayProduct Overview

Model	FY180
Operating weight (T)	4.5
The hole diameter (mm)	140-254
Drilling depth (m)	180
One time advance length (m)	3.3
Walking speed (km/h)	2.5
Climbing angels (Max.)	30
Rated power (kw)	55
Working pressure (mpa)	1.7-2.5
Air consumption (m3/min)	17-31
Drill pipe diameter (mm)	76 /89
Drilling pipe length (m)	1.5/2.0/3.0
Rig lifting force (t)	12
Swing speed (rpm)	45-65
Swing torque (N.m)	3200-4600
Dimensions (mm)	380015002200

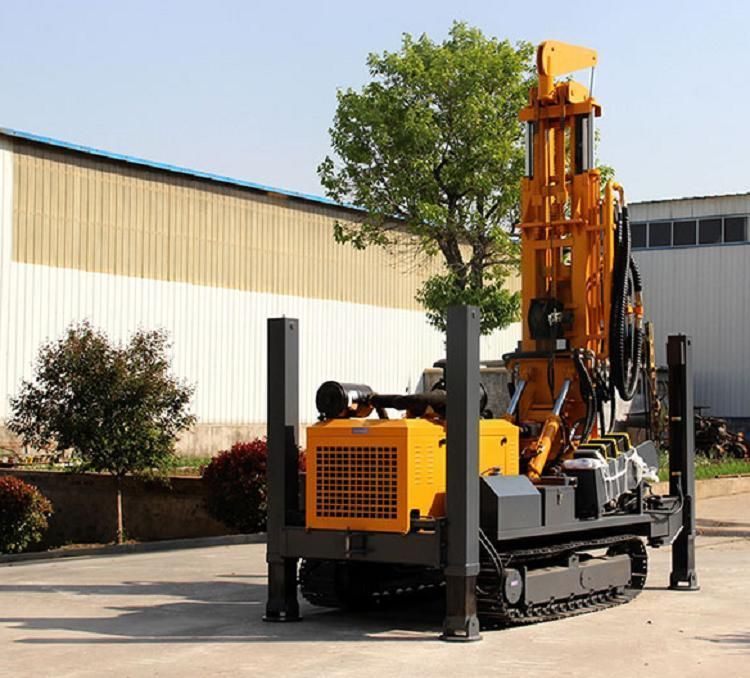

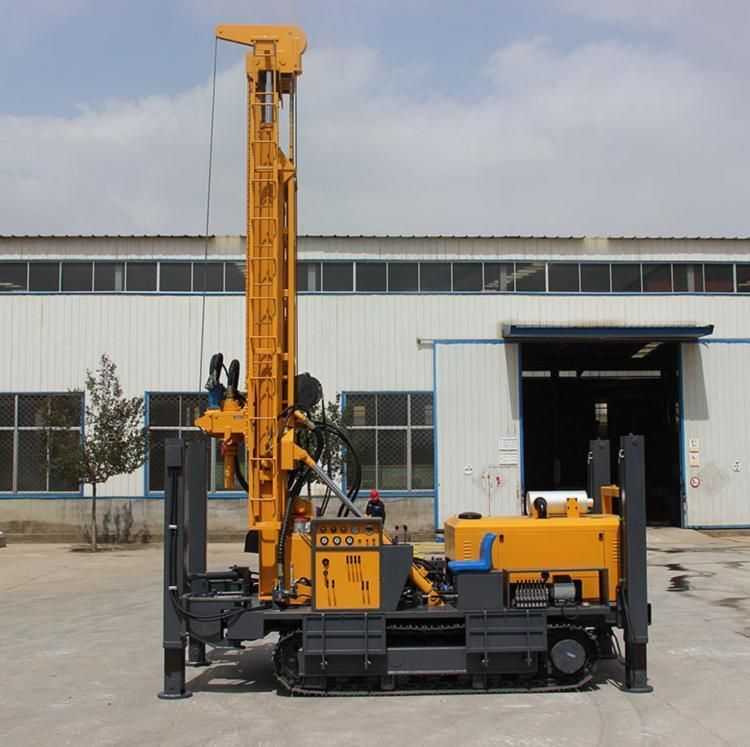

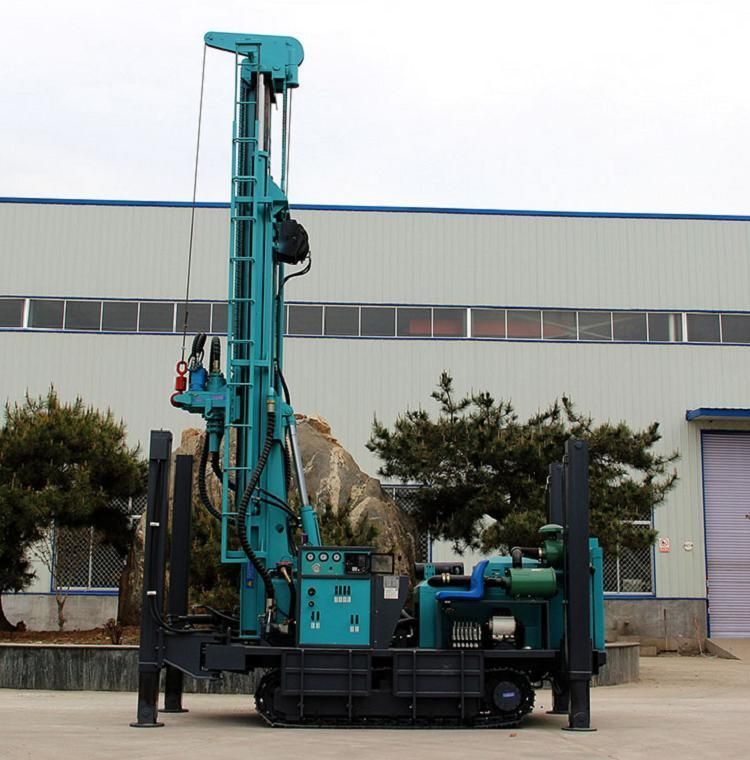

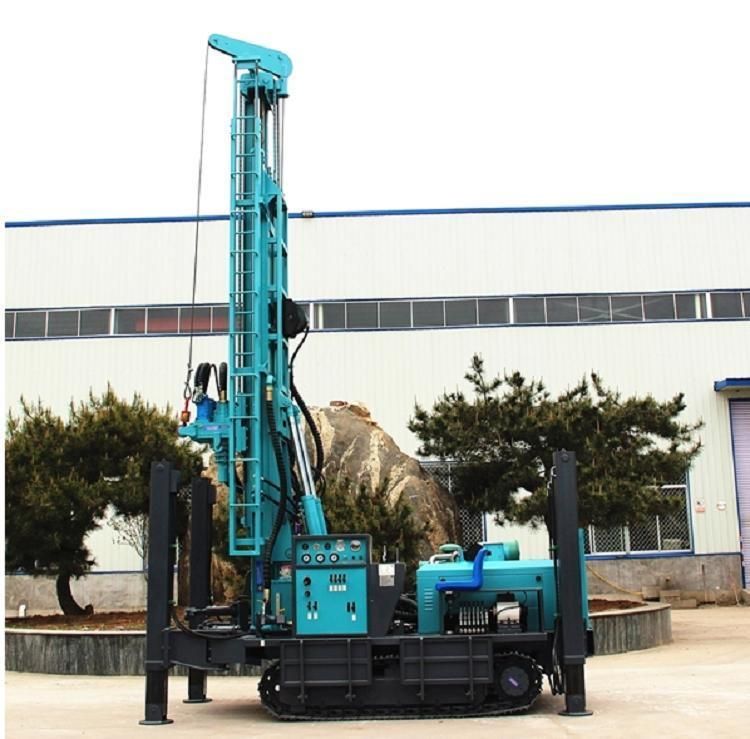

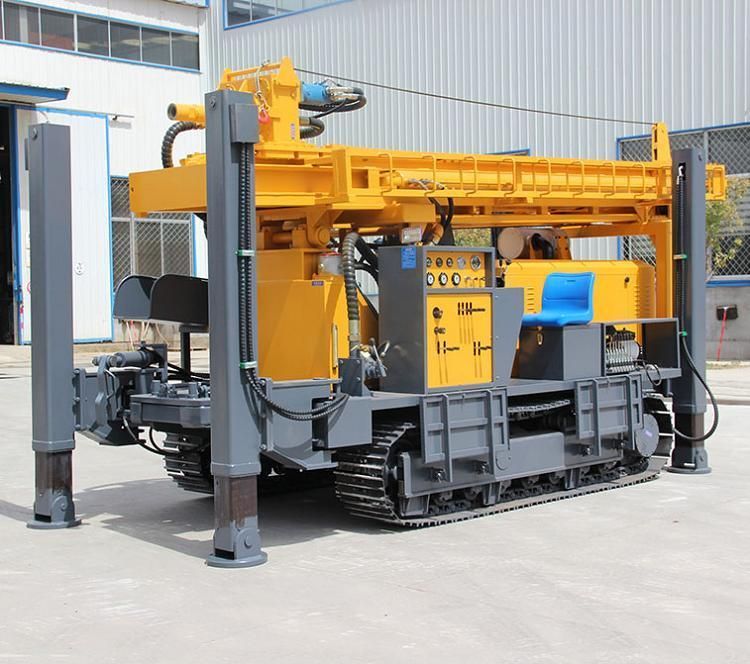

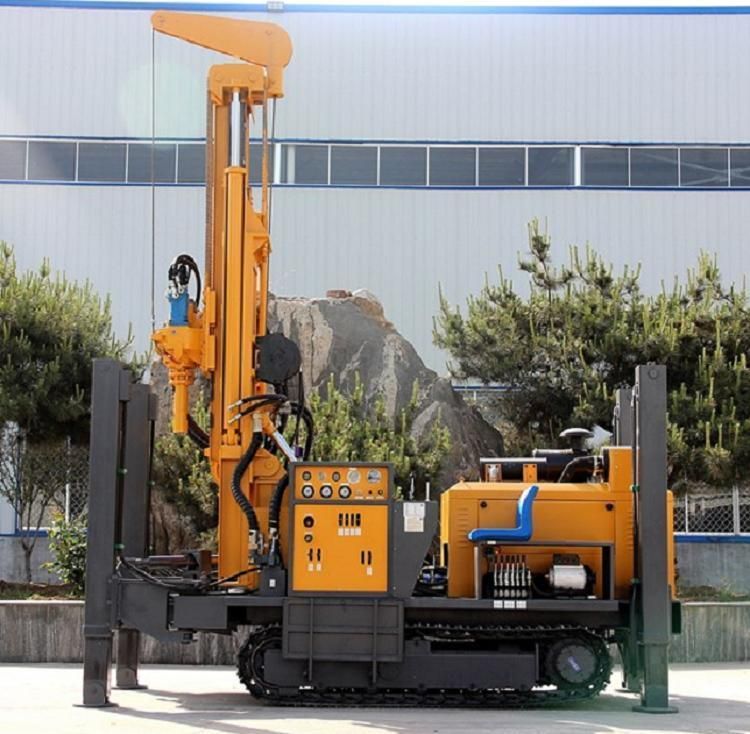

Details Images

Used in Different Field Fy180 180m Water Well Drilling Rig
