Basic Info.

Model NO. HFTF-70T Application Plastic Cup, Box, Bowl, Yogurt Cup, Milk Cup, etc Computerized Computerized Max Forming Area 680* 320mm Thickness of Sheet 0.35-2.5mm Dimension(L*W*H) 12000*4000*3500mm Transport Package Sea-Worthy Packing Specification CE Certificate Trademark HENGFENG Origin China HS Code 84774090 Production Capacity 45 Cycles/Min

Product Description

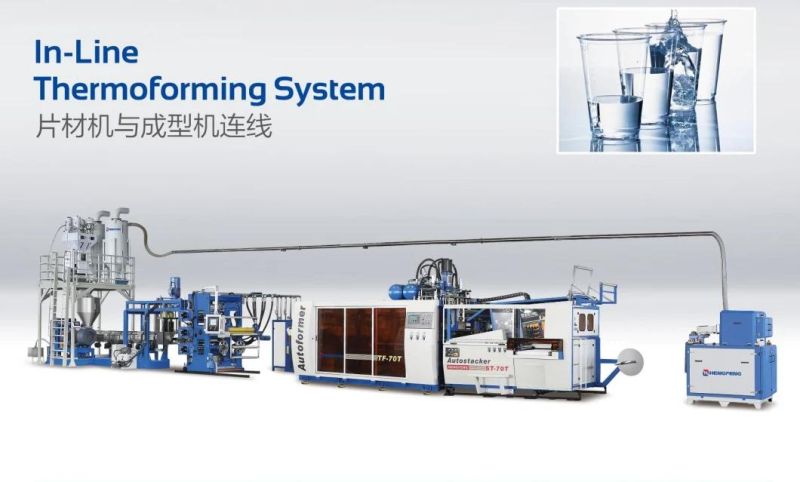

Plastic Thermoforming Making Machine


There are some machine running video links:
https://hf-sheetmachine.en.made-in-china.com
https://hf-sheetmachine.en.made-in-china.com
https://youtu.be/M0HywCg41JI
Applicantion:
we mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.




Design Features:

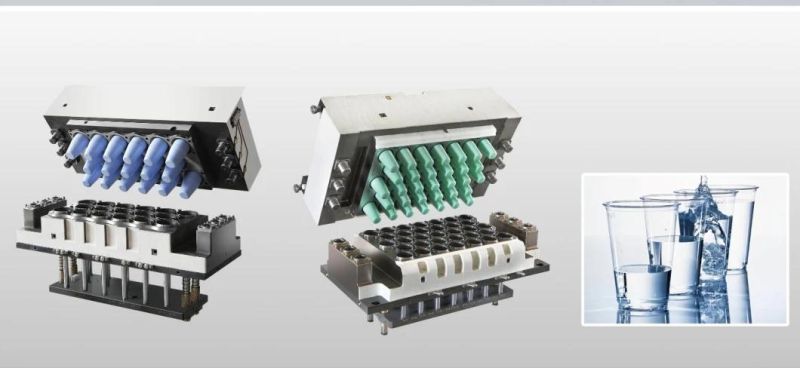

In-mould Cutting
High accuracy and high yield products
Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Two -station unwinder system
Rapid mould changing device
Mould automatic memory system
PLC design with easy operation
Main Technical Data:

1- Max. Forming  Area	680× 320mm
2- Max. Down Forming Machine	150mm
3- Max. Up Forming Height	15mm
4- Sheet Thickness	0.35-2.5mm
5- Max. Roller  Diameter	Φ 1200mm
6- Air  Pressure	0.7-0.85mpa
7- Water  Consumption	50L/min
8- Air  Consumption	3000L/min
9- Max.Speed	35Cycles/min
10- Power (Three  Phase  Four  Wire)	380v,50hz,3phase
11- Heating  Power	130kw
12- Main  Motor  Power	11kw
13- Feeding  Motor  Power	4.4kw
14- Scrap  Rewinding  Motor  Power	0.55kw
15- Machine  Weight	12600kgs
16- Dimension	11000× 3650× 3500mm

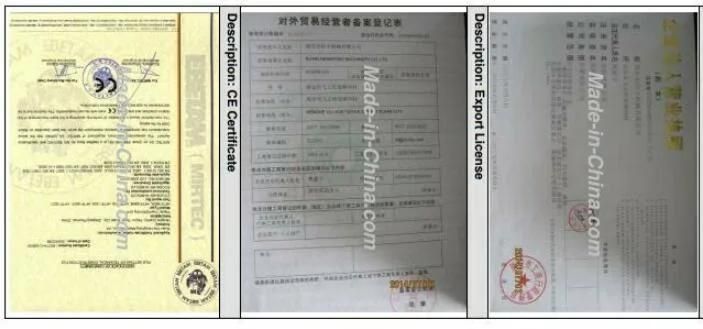

Certificate:

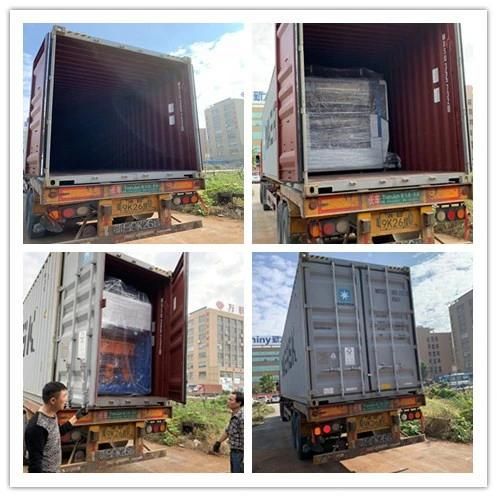

Shipping Details:

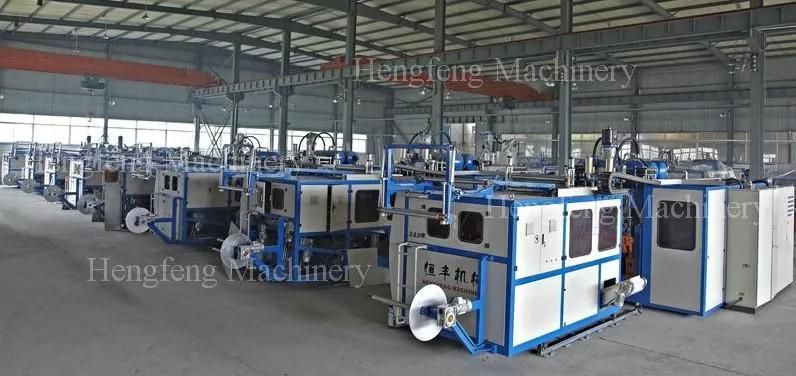

HengFeng Company:


Please contact us to here if interested any products:
