• Model NO.：UV-3,UV-5,UV-8
• Type：UV Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：3W,5W,8W
• Wavelength：355nm
• Beam Divergence：<2mrad(Full Angle)
• Pointing Stability：<50urad
• Polarization Ratio：100:1
• Spatial Mode：M2<1.3
• Beam Diameter：0.6mm
• Cooling：Air-Cooling,Water-Cooling(8W)
• Transport Package：Wooden Case
• Specification：680*220*500mm
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：50 Sets , Month

Basic Info.

Model NO. UV-3/UV-5/UV-8 Type UV Laser Marking Machine Marking Method Scanning Marking Laser Power 3W,5W,8W Wavelength 355nm Beam Divergence <2mrad(Full Angle) Pointing Stability <50urad Polarization Ratio 100:1 Spatial Mode M2<1.3 Beam Diameter 0.6mm Cooling Air-Cooling/Water-Cooling(8W) Transport Package Wooden Case Specification 680*220*500mm Trademark Hispeed or Customized Origin China HS Code 8456100090 Production Capacity 50 Sets / Month

Product Description

High Quality 1.5W Mini UV Laser Marker Hispeed


>>>>>Equipment Description<<<<<<

HiSpeed UV Laser Marking Machine 3W 5W 8W adopts three order intracavity frequency doubling (THG) technology. Compared to infrared laser, 355nm ultraviolet laser has extremely small laser facula, which reduces the mechanical deformation to a significant extent and diminishes the influence of heat-process to a very limited area.
Therefore it can be mainly applied for hyperfine marking and engraving, especially suitable for marking on packing materials ,medicines, Mobile phones ,keyboard , chargers etc.

>>>>>>Machine Features<<<<<<

• Stable water-cooling,high precision temperature control
• Applied for hyperfine marking and engraving
• High quality permanent marking
• Environment friendly and safe Machinery
• Electro-optical conversion efficiency, long service life
•

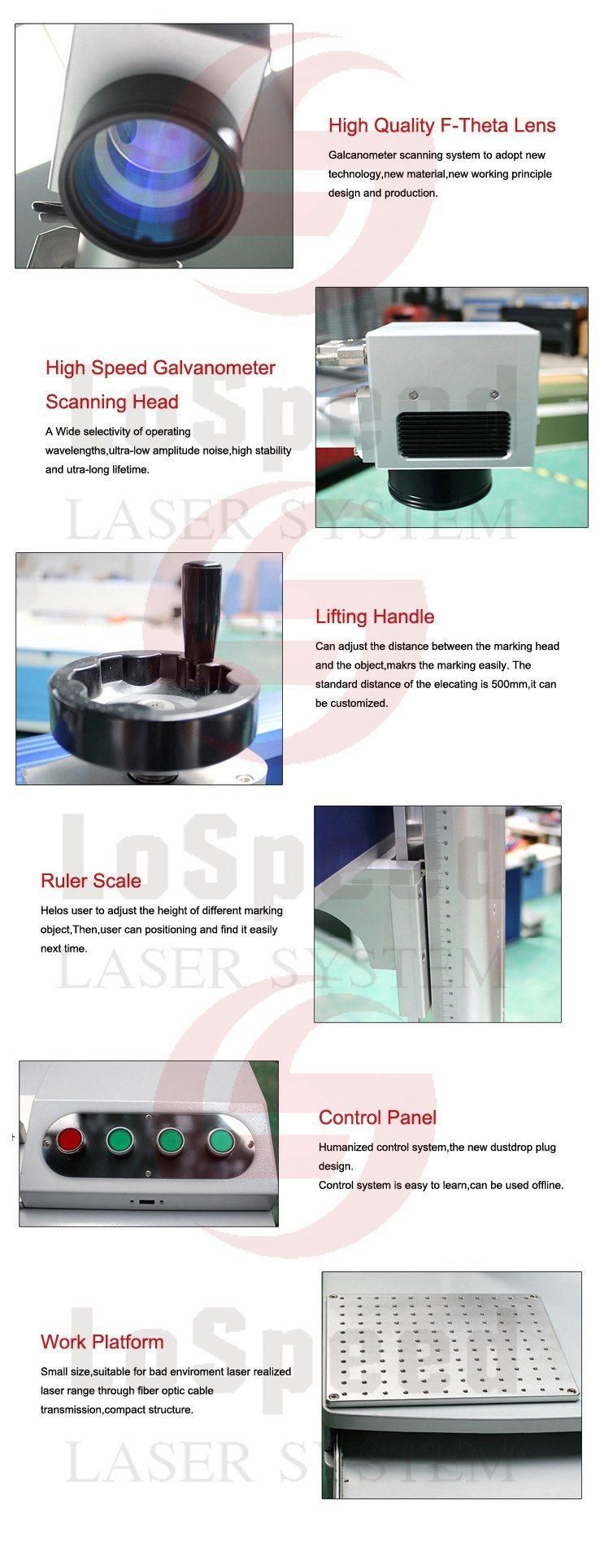

>>>>>>Machine Details Show<<<<<<



>>>>>>Technical Parameters<<<<<<

Model	UV-3/UV-5/UV-8
Power	3W,5W,8W
Wavelength	355nm
Beam Quality	M2<1.3
Output Power	10%-100%
Output Frequency	15KHz-100KHz
Power Stability(8h)	<±2%rm
Pulse to pulse instabilit	<±3%rms
Spatial Mode	TEMoo(M2<1.3)
Beam Divergence	<2 mrad (full angle)
Beam Diameter	0.6±0.1mm
Beam Roundness	>90%
Pointing stability	<50urad
Polarization Direction	Horizontal
Polarization Ratio	100:1
Cooling	Air-cooling/Water-cooling(8W)

Applicable Materials:





>>>>>>Company Information<<<<<<
HiSpeed Laser Company is a modern professional Hi-Tech enterprise, specializing in manufacturing of Fiber Laser Marking Machine,CO2 Laser Marking Machine,UV Laser Marking Machine, Portable Laser Marking Machine,Mini Handheld Laser Machine,and Laser Engraver Machine, Laser Tube, Laser Power Supply, Laser Optics and Laser accessories etc.

Hispeed Laser mainly product is including:
Laser Marking Machine, Laser Engraving Machine,Fiber Laser Marking Machine 20W 30W 50W 60W , Mini Laser Engraver, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer,Laser Rotary Table,3D Laser Table,Laser Rotary Chuck,Laser accessories etc.

>>>>>>Contact Us<<<<<<

Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.

Please advise us following inforamtion to recommend you most suitable machine:

1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
