Basic Info.

Model NO. SJSZ-65/28 Customized Customized Condition New After-sales Service Provide Assembly Structure Separate Type Extruder Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Layers 3 Layers Pipe Diaemeter 12-63mm Transport Package Export Standard Packing Trademark Weier Origin Qingdao, China HS Code 84772090 Production Capacity 10 Sets/Month

Product Description

Specifications

PVC garden fiber hose production line 1>Single screw extruder machine
2>3 layers hose, soft
3>Used for water pipe
Production description

PVC fiber reinforced soft pipe, also called as PVC net grid pipe, is commonly called as plastic plica tube, suitable for transporting corrosive and compressive gas and liquid. extensively apply to machinery, colliery, petroleum, chemical industry, agriculture irrigation, building construction and civil construction (such as solar water heater, gas tank, natural gas and so on). Now it is also used for irrigating parterre and lawn.)

Main technical parameter

Diameter range	8-50mm
Material	PVC granule
Power supply	Three-phase, 380V, 50HZ ( as per customers' city power condition)
Capacity	Max.80-120kg/hr
Install power	50kw
Dimension	16000*4000*2400(mm)

Equipment list

1	SJ-65/28 single screw extruder	two sets
2	Die head	One suit
3	Cooling tank	two sets
4	Haul-off machine	two sets
5	Braided machine	One set
6	Winder	One set

Optional list  for your reference only
SJ-90/25 PVC granule making line   One set
SHL-200/500 Mixer                         One set

Process : raw materials-extruding out-cooling unit-traction - Winding-extruding
out-traction - winding

Spare parts

No.	Item	Qua.
1	Air fan for barrel of extruder	Three sets
2	Tools for taking out screw	Two sets
3	Special tools for T-die	One set
4	Solid state relay	Three Pieces
5	Contactor	Three Pieces
6	Omron relay	Three Pieces
7	Air tube diameter 8mm	60m
8	Blade	Two pieces

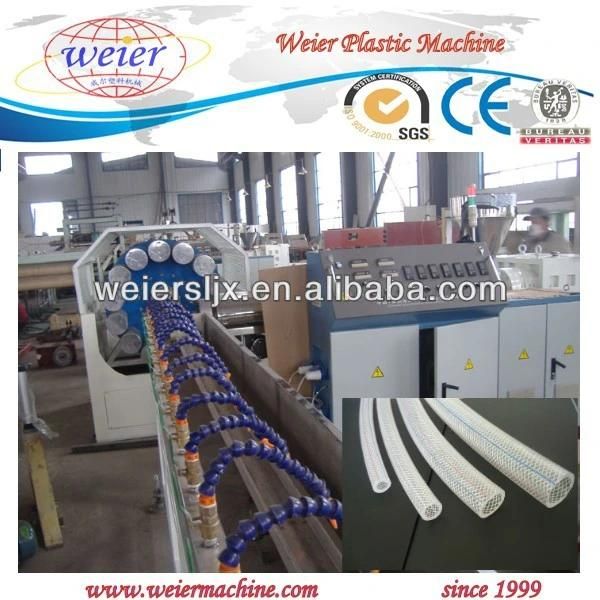

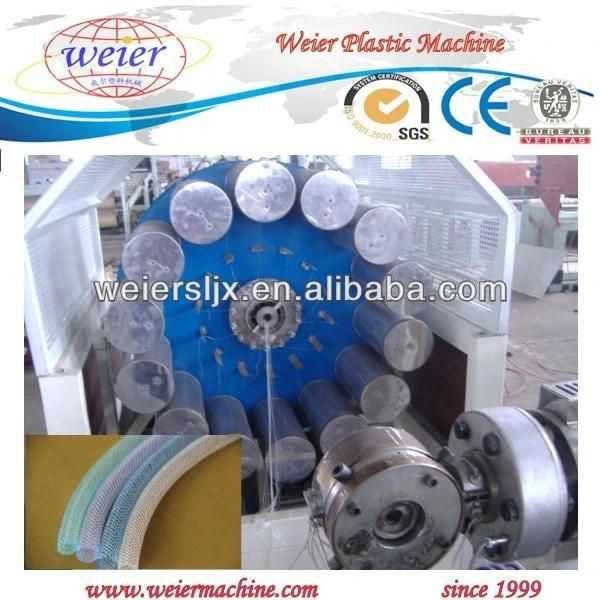

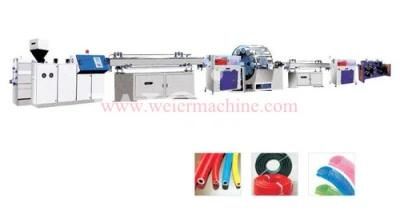

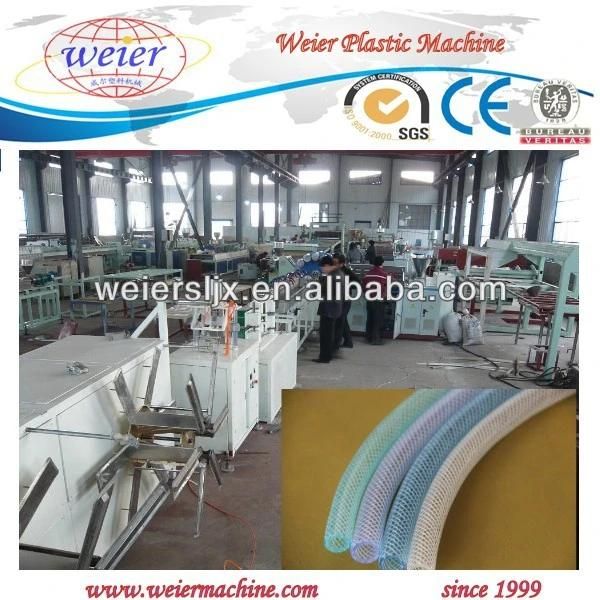

Machine pictures








More details  about  our services:

the supplier provide service manual and maintenance instruction of main electric appliance ,limb , usage manual of equipment We also supply water,electricity,gas of equipment and installation drawing.

the supplier is responsible for installation,debug and training, we will realize guarantee of repair; replacement of substandard products within one year. After the machine leaves factory. Fittings of the machine will supply at preferential price after one year .


The seller will send one or two technician to the buyer'plant  to debugging,and the tickets ,eating ,transportation and visa fee will bepaid by the buyer ,also including 50USD salary/person /day



If anyting intertst ,please contact us at  your best convenience,we can produce the overwhelming majority of plastic extrusion machines



Its my honour to  do something for you.
