• Model NO.：fiber laser marking machine
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Name：Fiber Laser Marking Machine
• Laser Power：20W 30W 50W

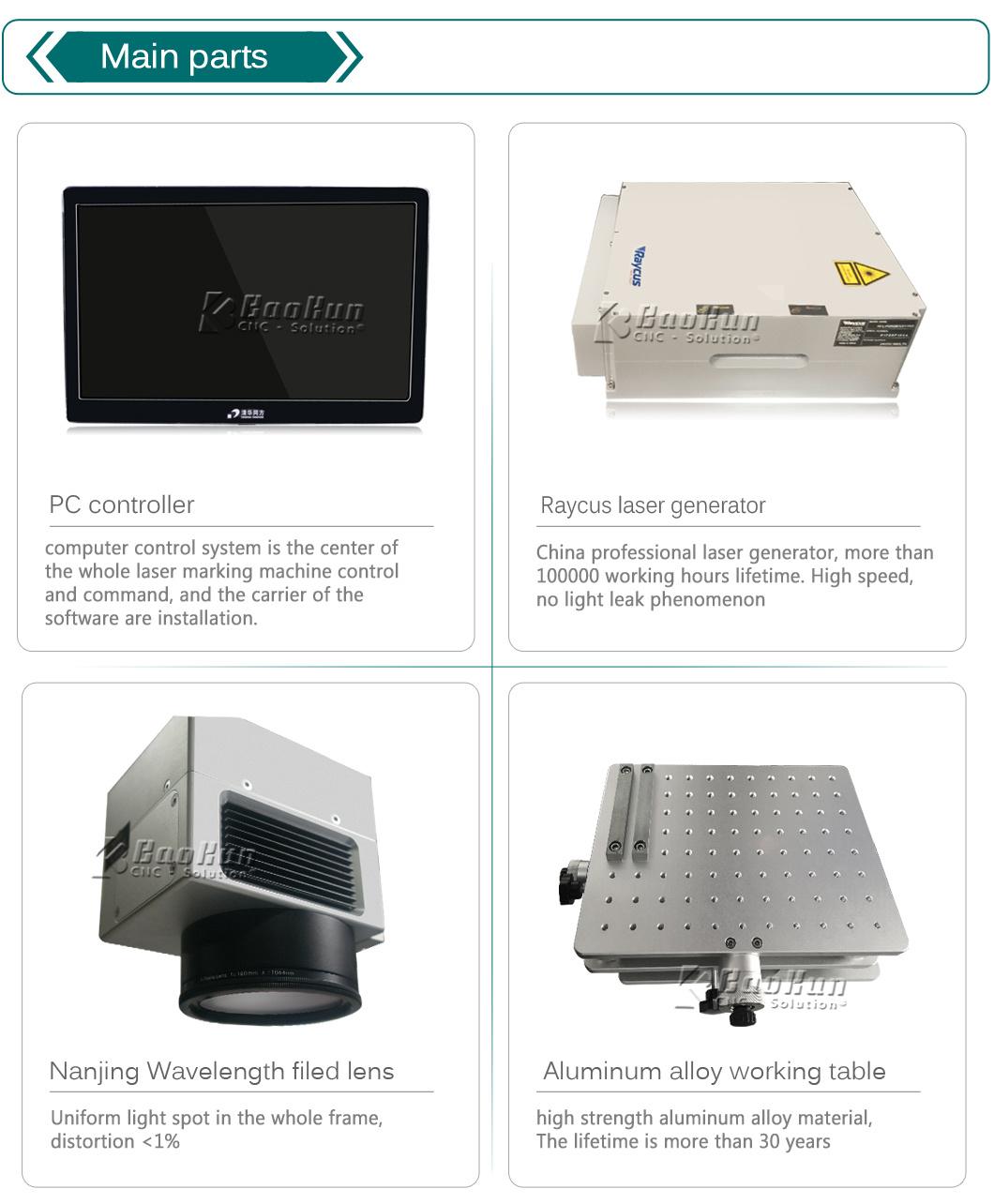

• Laser Source：Raycus Ipg Max
• Control System：PC
• Wave Length：1064nm
• Marking Speed：0-9000mm,S
• Marking Area：110*100mm 200*200mm 300*300mm
• Minimum Line Width：0.01mm
• Repeated Accuracy：0.001mm
• Operation Temperature：5ºC-40ºC
• Resolution Ratio：0.1mm
• Response Time：0.5ms
• Unit Power：Max 1.2kw
• User Manual and Install Video：One Set
• Transport Package：Plywood Case Packaging
• Specification：930*820*1600mm
• Trademark：Baokun Brand
• Origin：China
• HS Code：8456110090
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. fiber laser marking machine Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Name Fiber Laser Marking Machine Laser Power 20W 30W 50W Laser Source Raycus Ipg Max Control System PC Wave Length 1064nm Marking Speed 0-9000mm/S Marking Area 110*100mm 200*200mm 300*300mm Minimum Line Width 0.01mm Repeated Accuracy 0.001mm Operation Temperature 5ºC-40ºC Resolution Ratio 0.1mm Response Time 0.5ms Unit Power Max 1.2kw User Manual and Install Video One Set Transport Package Plywood Case Packaging Specification 930*820*1600mm Trademark Baokun Brand Origin China HS Code 8456110090 Production Capacity 200 Sets/Month

Product Description

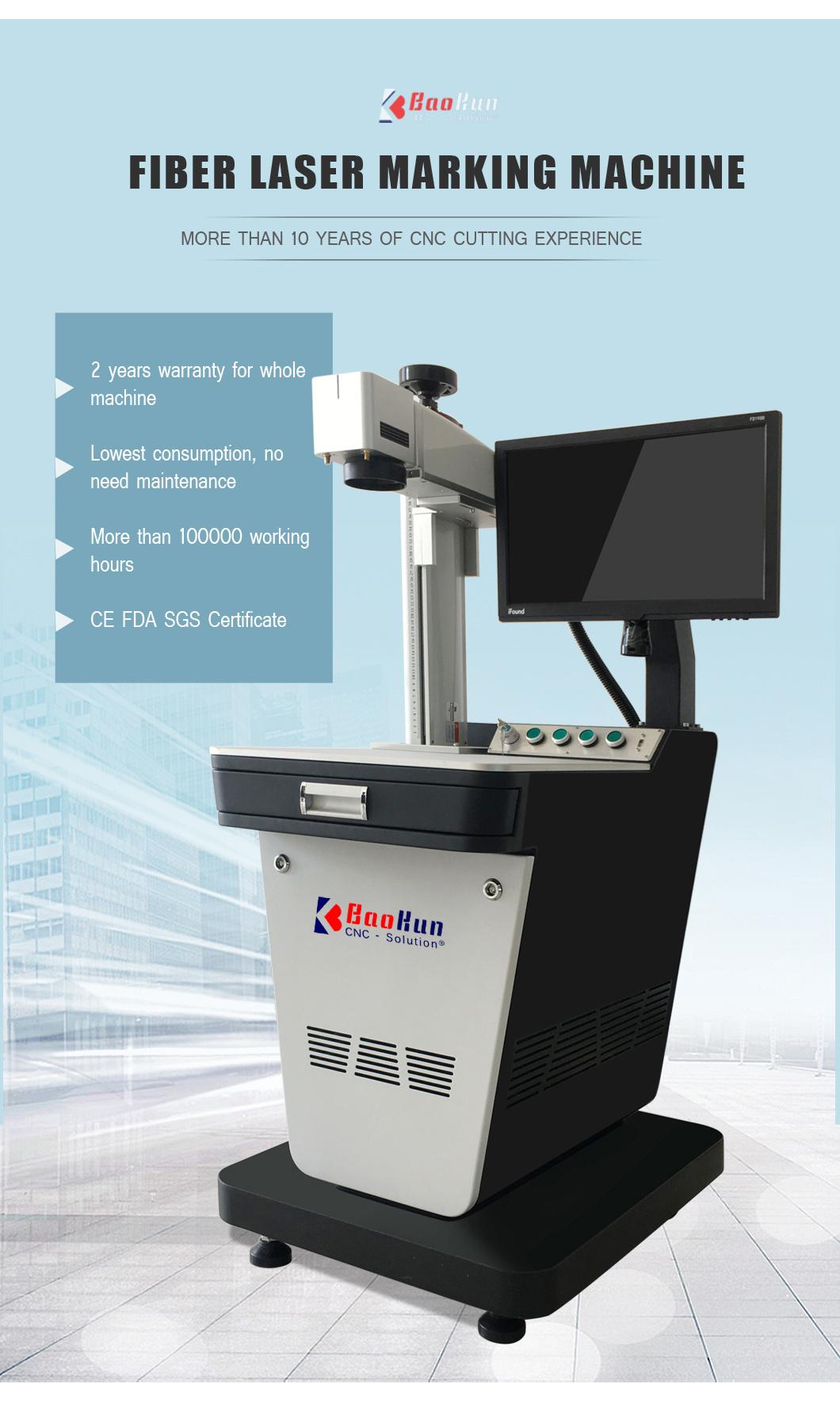

Low cost fiber laser 30w 50w 60w 70w stainless steel, aluminum ,mild steel fiber laser marking machine with Raycus max IPG laser generator

Fiber laser marking machine application:

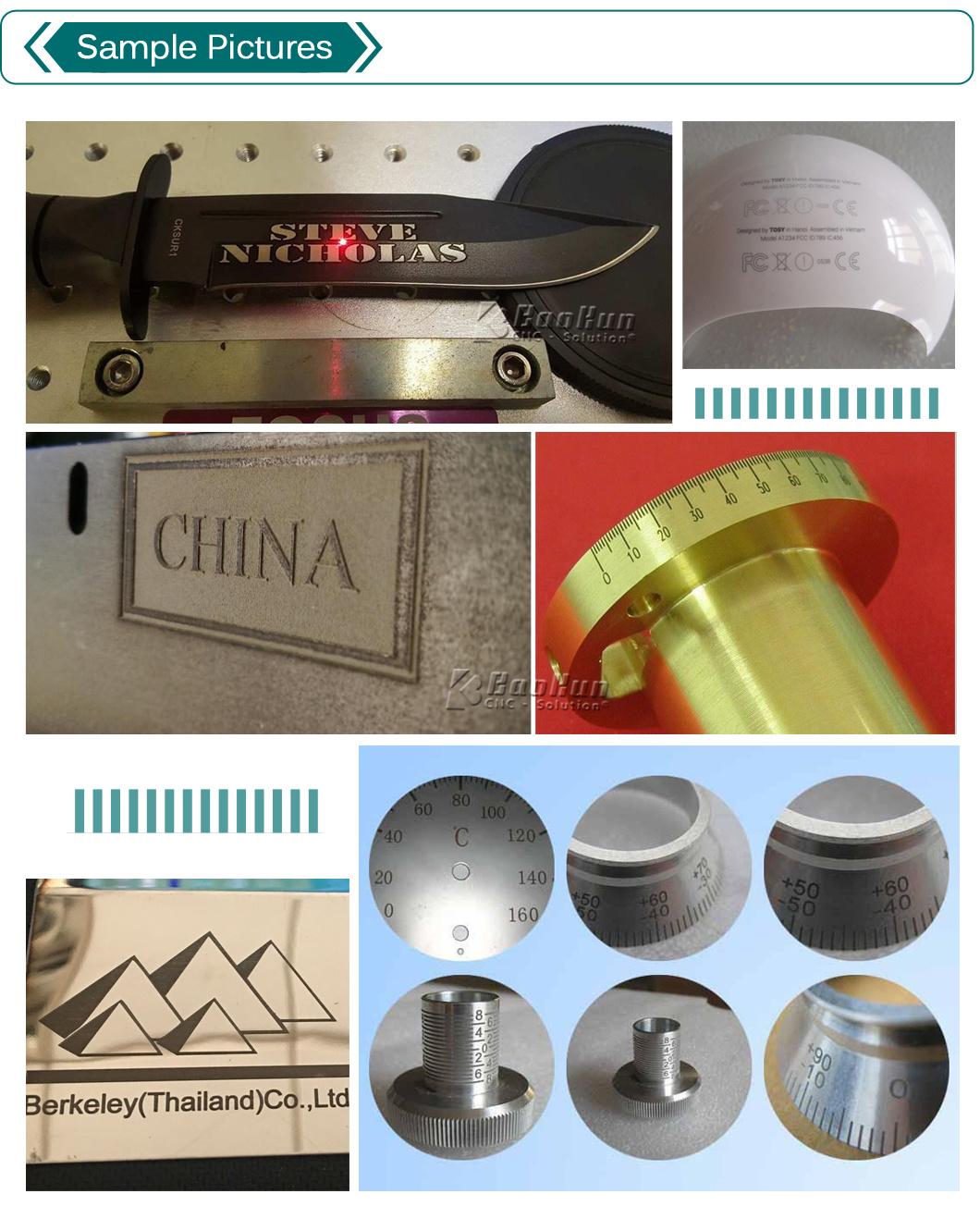

 Fiber laser marking machine is mainly used for marking on metal and nonmetal, can be used in mobile phones buttons, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, communication products, sanity ware, tools, accessories, knifes, medical device industry, jewelry, glass and clocks, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

NO	Model	Fiber laser marking machine
1	Laser power	20w 30w 50w
2	Working area	110*110mm/200*200mm 300*300mm
3	Laser Wavelength	1064nm
4	Response time	0.5ms
5	Frequency of pulse	20-100KHz
6	Max marking depth	≤0.4mm
7	Marking speed	≤8000mm/s
8	Marking lines	1-10 lines(in the marking area)
9	Minimum line width	0.01mm
10	Minimum character	0.15mm
11	Repeatability accuracy	±0.002mm
12	Resolution ratio	0.1mm
13	Marking content	Text,pattern,date,bar code,etc
14	Operation system	Microsoft Windows XP or Windows 2000
15	Control software	EZCAD control software
16	Graphic format supported	bmp, jpg, gif, tga, Ai, bmp, dst, dxf, plt,png,tif,ai,dxf,dst,plt,etc.
17	Unit power	≤1.2KW
18	Operation temperature	5ºC-40ºC
19	Relative moisture	≤ 90%,no fog
20	Supply Voltage	220V/50Hz/10A

1.two engineer team for after sell service immediately and effectively,

2.we could reply you in 3 hours after  received your any questions even on weekend and holiday.  if necessary , we could go to your country to support technology.

3.We will provide the consumable parts at an agency price when you need replacement.

4.Lifetime maintenance free of charge for this fiber laser marking machine .

5.Out of warranty period, the company's after-sales service center will provide repair service, such as the need to change the machine accessories, will need to charge a reasonable cost of spare parts.

6.we can provide timely help by whatsapp, skype or other communication platform , even on holiday.

1. What power and size I can choose ?
Our fiber laser marking machine standard size has 110*110mm,200*200mm, 300*300mm. If you want bigger size , we can provide you the machine with sliding table.
Power : 10w 20w 30w 50w

2. How long is the delivery time ?
We are the manufacturer,for standard machines, about 5-7 working days;

3. What's your MOQ ?
Our MOQ is 1 set. And we can provide you sample testing service.

4: Can you arrange shipment to me?
Yes,we would like to arrange the shipment to you by sea, air or other way. Please provide us with the closet port or your detailed address for asking the shipping cost.


If you want to know more details about the fiber laser marking machine, Send inquiry now~~
