• Condition：New
• Customized：Customized
• Transport Package：Part Wooden Box
• Specification：2500x1500x1500mm
• Trademark：Huatai
• Origin：China
• HS Code：847920000
• Production Capacity：200 Sets

Item

Quality index

Crude Palm Oil

Finished Oil

Refined oil color(Lovibond cuvettes133.4mm)

-------

Y30,R 3.0

Transparency

50ºC Clear and transparent

Moisture and volatile matter(%)

≤0.2

0.05

Insoluble impurities (%)

≤0.05

0.05

Acid value (mg KOH/g)

≤10

            0.2

peroxide value m mol/kg)

≤6.0

5.0

Fe(mg/kg)

≤5.0

-----

Cu(mg/kg)

≤0.4

-----

 palm oil extraction machine
Palm oll machIne mainly includes sterl lall on machine, threshing machine digestIng machine, palm oil pressing machine (FFB pressing machine), fber separation machine and crude palm oll purification machine in palm oll processing plant

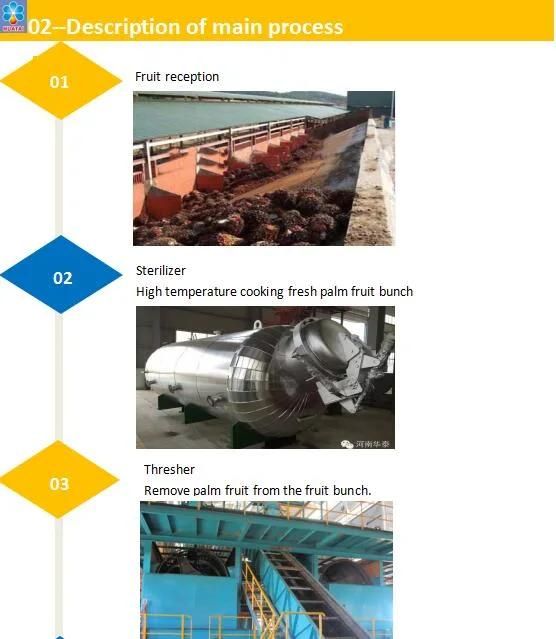

1. Sterilization, Load fresh fruit bunches into sterilizing tank inject direct ste am into sterilization tank inject direct steam into sterilizaton tank to reduce activation of bacterium and enzyme, avoid FFA fom Increasing and Improve crude palm oll qualIty.
2. Convey sterlized FFB(resh fruit bunches) to drum separator, separate EFB( empty fruit bunches) from FFB through rotating, EFB will be sent to pulverize for fertil izer back to orchard

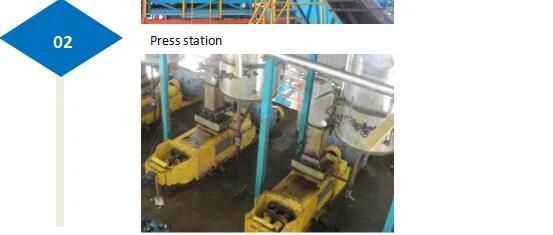

3. Thresh palm fruits through special machine, then send them to press with tin- screw oil press
5. Fiber is conveyed to boiler as fuel
6. Processed crude palm oil is mainly consist of solid muddy sand, water and oil. Solid parts are separated
ith Bration rotary screen, and crude palm oil is separated by means of statics Heated crude palm oll isnt to vacuum dryer by oil pump to remove moisture, and stored in crude oll tank. Processed sediments is discharged into sewage treatment channel, solids is used to fertilize land, steam boiler is mainly used to supply steam for generating electricity, sterlizing and heating, fuel is fibers and shells separated in palm oil

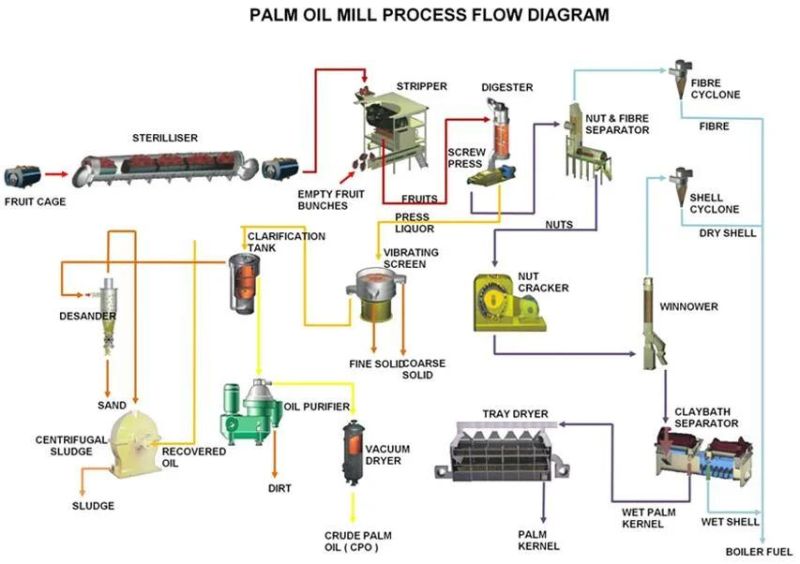

production process
We have exported palm oil processing machine to Indonesia, and win high praise from customers
Suitable oilseeds; Palm Fruit (FFB)
