• Model NO.：876
• Laser Technology：Laser Fusion Cutting
• Automation：Automatic
• Condition：New
• Certification：CS, SGS, ISO 9001:2008
• Type for Cutting Machine：Laser Cutting Machine
• Cooling Mode：Water Cooled
• Outline Size(mm)：4270mm*2420mm*1750mm (L*W*H)
• Type：High-Power Laser Cutting Machine
• Warranty：1 Years on Laser Source
• Electrical Requirements：380V,50Hz.60AMP
• Control System：Cypcut
• Transport Package：Wooden Box
• Specification：SGS,CE
• Trademark：Dapeng
• Origin：China Shenzhen
• HS Code：84561000
• Production Capacity：1set,Day

Basic Info.

Model NO. 876 Laser Technology Laser Fusion Cutting Automation Automatic Condition New Certification CS, SGS, ISO 9001:2008 Type for Cutting Machine Laser Cutting Machine Cooling Mode Water Cooled Outline Size(mm) 4270mm*2420mm*1750mm (L*W*H) Type High-Power Laser Cutting Machine Warranty 1 Years on Laser Source Electrical Requirements 380V/50Hz.60AMP Control System Cypcut Transport Package Wooden Box Specification SGS/CE Trademark Dapeng Origin China Shenzhen HS Code 84561000 Production Capacity 1set/Day

Product Description

 500W manual laser cutter metal cutter fiber metal laser cutting machine



Introduction of the fiber laser cutting machinery:

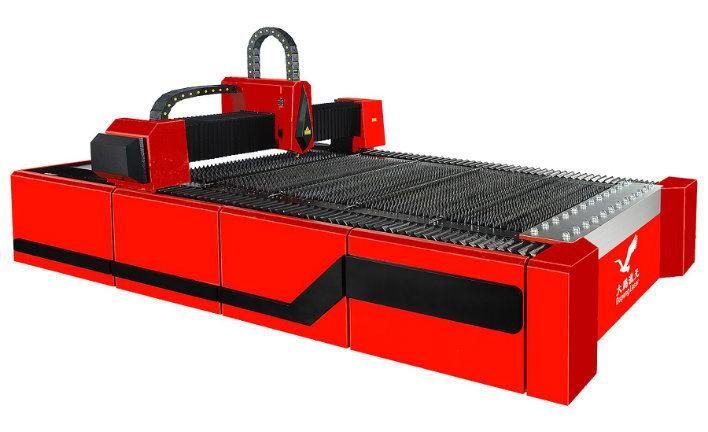

DPL-F500 3015 fiber laser cutting machine is adopted with international advanced technology of high power fiber laser source, combined with the company's independent design gantry CNC machine tool system. High strength whole welding cutting bed, has been used with high temperature annealing and large CNC gantry Milling machine precision processing, thus the cutting bed has very good rigidity and stability. Driven by precision ball screw and linear guide. It's original aim at the rapid precision cutting of sheet metal . Widely used in metal crafts, metal products, precision Machinery, auto parts, electronics, toys, glasses, nameplates, advertising and other industries


The advantages of CNC fiber laser cutting machine

Using the world's top imported fiber laser source, stable performance
Fiber laser photoelectric conversion rate is 3 times the CO2 laser type, more energy efficient and environmentally friendly
3. Fiber laser power consumption is only 20% -30% similar to the CO2 laser cutting machine, the operating cost is very low.
Gantry structure, dynamic performance The overall layout is compact and reasonable, only a small part.
5. The use of special laser cnc system, in the high-speed operation process to ensure efficiency and accuracy.
6.X, Y-axis imported ball screw and guide wire, with a central volume device to ensure long-term stable operation
7. Vertical and horizontal drive using imported high-precision helical gears and rack drive, equipped with high-precision planetary gear reducer and AC servo system to achieve high-precision transmission.
Under the cutting bed there is a collection device to collect small cutting materials and metal powder.


Specifications of the CNC Fiber Laser Cutting Machinery


Model	DPL-F500 3015
Medium of Laser	Fiber
Processing surface (L × W)	3000mm×1500mm
Maximum cutting speed	15m/min
Cooling method	Water cooling
Laser Wavelength	1070nm
Output Power	500W
Min line width	≤0.01mm
Material cutting thickness	0.2-6mm
Driven method	Imported servo motor
Transmission method	Imported screw and guild line
Power supply	380V/50Hz/16A
Continuous Operating Hours	24 hours
Machine weight	About 3500kg
External dimension(length×width×height)	4270mm×2420mm×1750mm



APPLICABLE MATERIALS:

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

APPLICABLE INDUSTRY:

It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

Please let us know the following information:
1.  What kind of material do you want to cut?
2. What is the most commonly used cut thickness? What is the maximum thickness?
3. What is the size of the conventional material cut? What is the maximum size?
4. What is the use of cutting material after cutting? (application)
5. Are you the end user or the dealer?
Based on your information, we will recommend you the most suitable machine.
